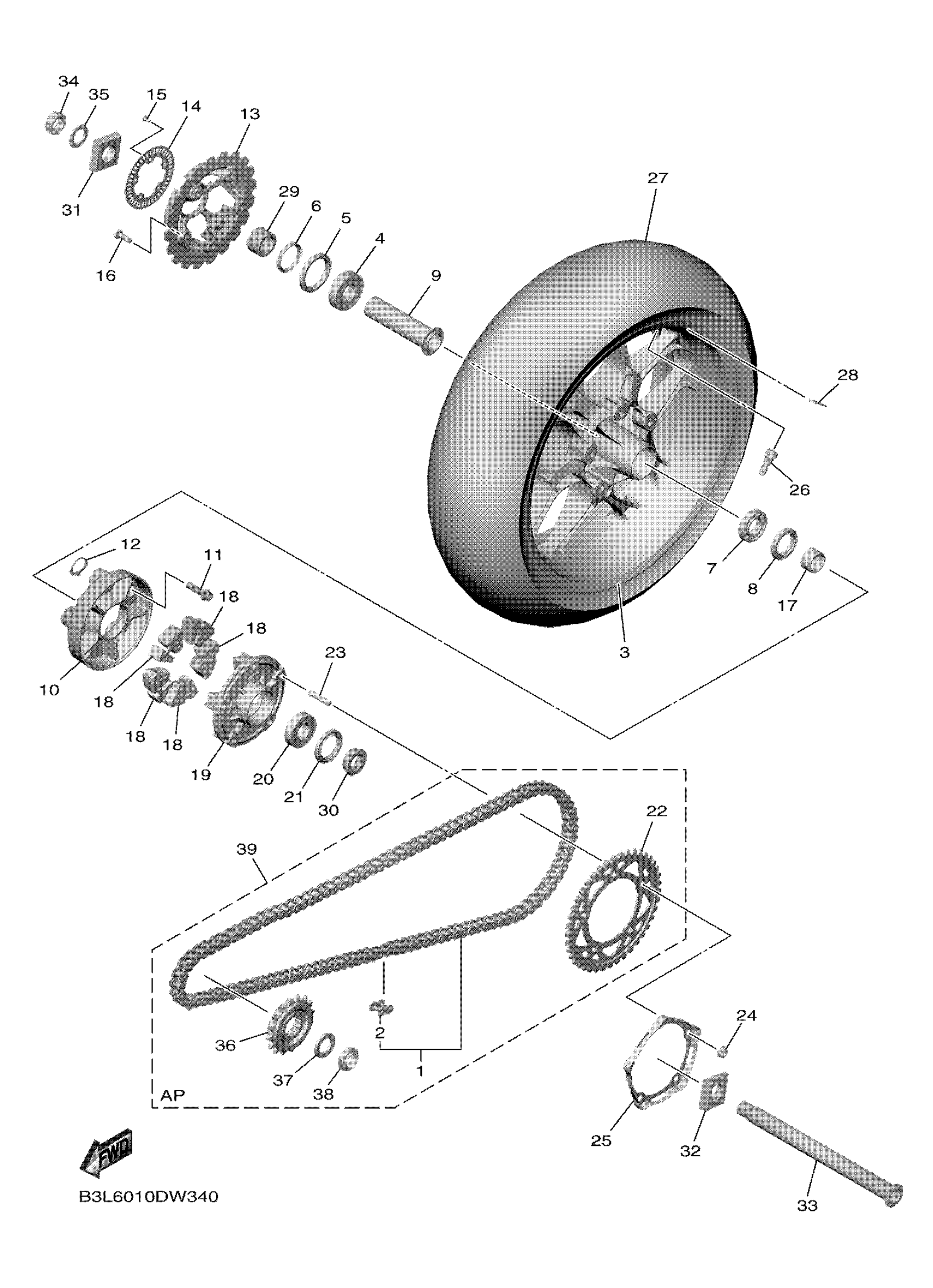

Yamaha YZFR1N1W (YZFR1 WGP 60TH) B3LT 2022 REAR WHEEL Diagram
#
1
CHAIN (DID525HV3 114LL)
94A40-12114-00
Unavailable
5
NUT, ADJUSTING
2CR-2538E-00-00
Unavailable
9
SPACER ASSY
2CR-253W0-00-00
Unavailable
14
ROTOR, SENSOR
1SD-2517G-00-00
Unavailable
16
BOLT
90109-085G6-00
Unavailable
17
COLLAR
90387-28022-00
Unavailable
18
DAMPER
2CR-25364-00-00
Unavailable
19
CLUTCH, HUB
2CR-25366-00-00
Unavailable
20
BEARING(3JN)
93306-20531-00
Unavailable
21
OIL SEAL
93106-40013-00
Unavailable
22
SPROCKET, DRIVEN (
2CR-25441-00-00
Unavailable
23
BOLT, STUD
90116-10048-00
Unavailable
24
NUT, SELF-LOCKING
90185-10011-00
Unavailable
25
BRACKET 1
B3L-2537W-00-00
Unavailable
26
VALVE, RIM(2GH)
93900-00030-00
Unavailable
27
TIRE(190/55 ZR17 M/C 75W)
94119-17078-00
Unavailable
28
BALANCER, WHEEL
2CR-25398-00-00
Unavailable
29
COLLAR
90387-28023-00
Unavailable
30
COLLAR
90387-28024-00
Unavailable
31
PULLER, CHAIN 1
5VY-25388-00-00
Unavailable
32
PULLER, CHAIN 2
5VY-25389-01-00
Unavailable
33
AXLE, WHEEL
2CR-25381-00-00
Unavailable
34
NUT, SELF-LOCKING
90185-24007-00
Unavailable
35
WASHER, PLATE
90201-25020-00
Unavailable
36
SPROCKET, DRIVE
2CR-17460-00-00
Unavailable
37
WASHER, CONICAL SPRING
90208-22002-00
Unavailable
38
NUT
90179-22018-00
Unavailable
39
CHAIN & SPROCKET K
B3L-W001A-00-00
Unavailable
