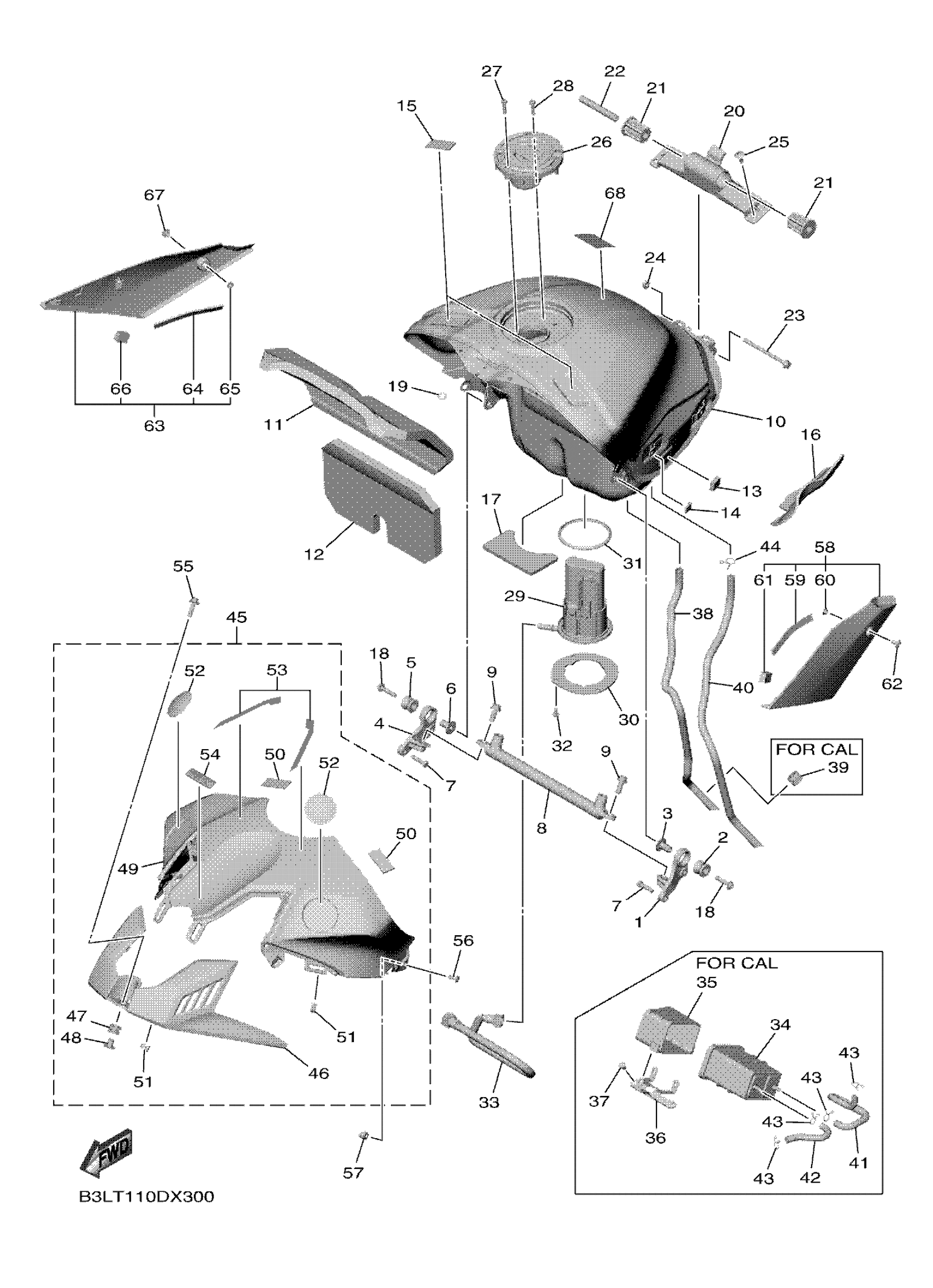

Yamaha YZFR1N1W (YZFR1 WGP 60TH) B3LT 2022 FUEL TANK Diagram

#

Description
Price

1

BRACKET, FUEL TANK

2CR-24191-00-00

Unavailable

2

GROMMET

90480-18008-00

$3.71

3

COLLAR

90387-06091-00

$8.49

4

BRACKET, FUEL TANK

2CR-24192-00-00

Unavailable

5

GROMMET

90480-18008-00

$3.71

6

COLLAR

90387-06091-00

$8.49

7

BOLT,SOCKET

91317-06025-00

$5.60

8

CROSS BAR

B3L-2142V-00-00

Unavailable

9

BOLT, HEXAGON SOCKET HEAD

90110-08097-00

$8.49

10

FUEL TANK COMP.

2CR-Y2410-10-01

$1,589.99

11

DAMPER, PLATE 1

2CR-2414H-00-00

$8.99

12

DAMPER, PLATE 2

2CR-2414J-00-00

$5.49

13

PAD, SEAT

4D9-24741-00-00

$4.37

14

DAMPER, SIDE COVER

5PW-2411J-01-00

$7.99

15

HOOK, SIDE COVER 1

2PP-2411G-00-00

$7.99

16

PROTECTOR, FUEL TANK

B3L-24141-00-00

Unavailable

17

SEAL

B3L-2414G-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06346-00

Unavailable

19

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

20

BRACKET, TANK FITTING

B3L-2413Y-00-00

Unavailable

21

DAMPER, LOCATING 3

5SL-24183-00-00

Unavailable

22

COLLAR

90387-06055-00

Unavailable

23

BOLT, FLANGE

95812-06090-00

Unavailable

24

NUT, FLANGE

95702-06500-00

Unavailable

25

BOLT

90111-06038-00

Unavailable

26

CAP ASSY

2CR-24602-01-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

28

BOLT

91312-05010-00

Unavailable

29

FUEL PUMP COMP.

2CR-13907-01-00

Unavailable

30

BRACKET, FUEL PUMP

2CR-24491-00-00

Unavailable

31

O-RING

1RC-24486-00-00

Unavailable

32

BOLT, WITH WASHER

90119-05015-00

Unavailable

33

PIPE, FUEL 1

B3L-13971-01-00

Unavailable

34

CANISTER ASSY

2CR-24170-00-00

Unavailable

35

DAMPER, LOCATING 2

2CR-24182-00-00

Unavailable

36

BRACKET, CANISTOR

2CR-2419F-00-00

Unavailable

37

SCREW

90149-06084-00

Unavailable

38

PIPE 2

2CR-24312-00-00

Unavailable

39

GROMMET

90480-14032-00

Unavailable

41

PIPE 4

B3L-24314-00-00

Unavailable

42

PIPE 5

B3L-24315-00-00

Unavailable

43

CLIP

90467-090A2-00

Unavailable

45

COVER, TOP (FUEL TANK)

B3L-Y217F-80-0X

Unavailable

46

COVER, TOP

B3L-2171A-00-P0

Unavailable

47

GROMMET

90480-12023-00

Unavailable

48

COLLAR

90387-06203-00

Unavailable

49

COVER, TANK

B3L-241B1-00-1X

Unavailable

50

HOOK, SIDE COVER 1

5XT-2411G-00-00

Unavailable

51

CLAMP

90464-04005-00

Unavailable

52

EMBLEM

BEB-2413B-00-00

Unavailable

53

GRAPHIC SET 1

B3L-24230-00-00

Unavailable

54

EMBLEM

BEB-2416B-00-00

Unavailable

55

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

56

SCREW, BIND

98902-05014-00

Unavailable

57

NUT(1KT)

90179-05523-00

Unavailable

58

TANK SIDE COVER AS

B3L-24106-00-GE

Unavailable

59

DAMPER, PLATE

90520-03016-00

Unavailable

60

COLLAR

90387-05035-00

Unavailable

61

PAD, SEAT

4D9-24741-00-00

$4.37

62

BOLT,HEX. SOCKET BUTTON

90111-05057-00

Unavailable

63

TANK SIDE COVER AS

B3L-24108-00-GE

Unavailable

64

DAMPER, PLATE

90520-03016-00

Unavailable

65

COLLAR

90387-05035-00

Unavailable

66

PAD, SEAT

4D9-24741-00-00

$4.37

67

BOLT,HEX. SOCKET BUTTON

90111-05057-00

Unavailable

68

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable
