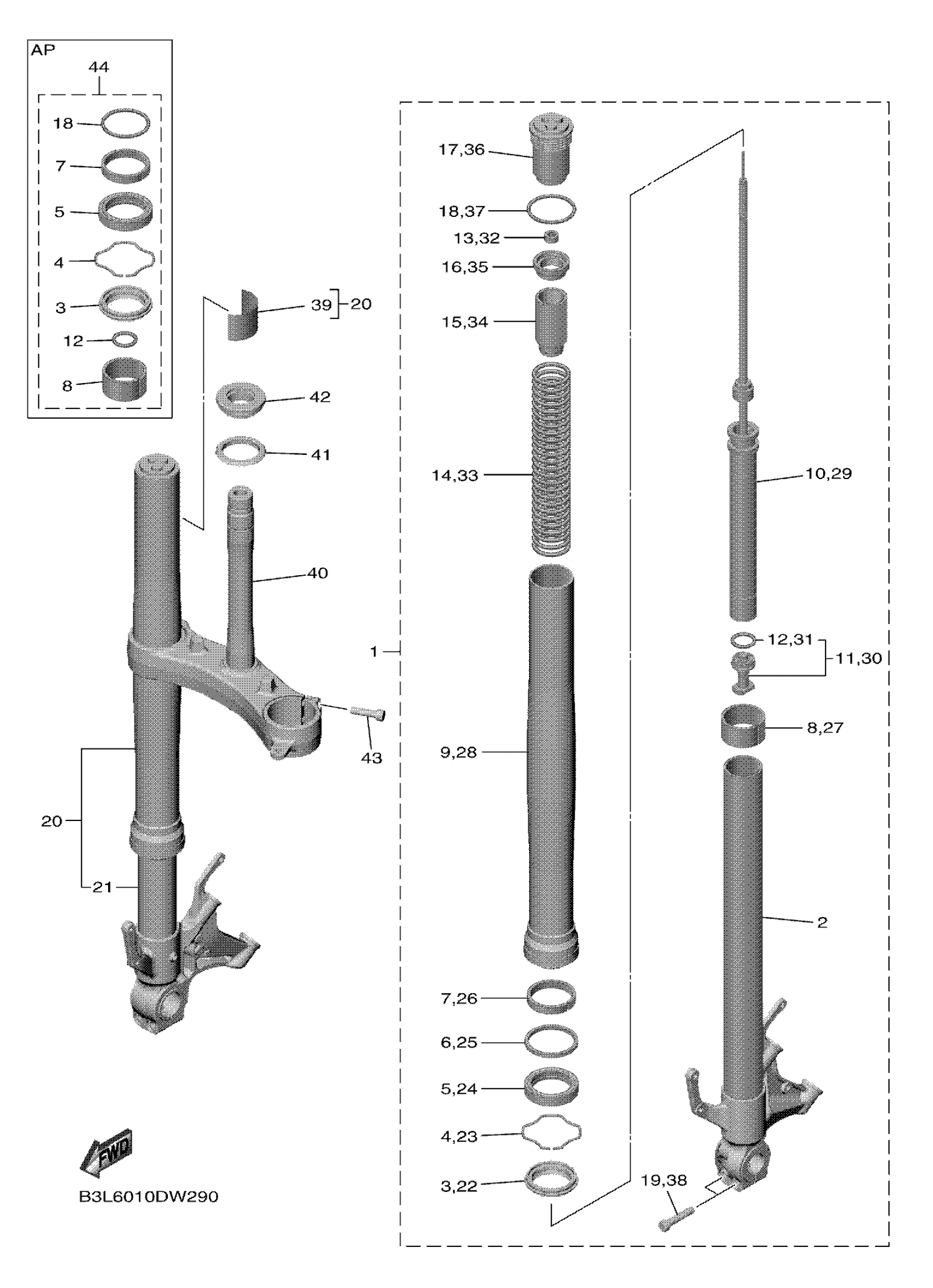

Yamaha YZFR1N1W (YZFR1 WGP 60TH) B3LT 2022 FRONT FORK Diagram
#
Description
Price
2
INNER TUBE COMP.1
B3L-23110-01-00
Unavailable
10
CYLINDER COMP., FRONT FORK
B3L-23170-00-00
Unavailable
11
VALVE COMP.
B3L-2316A-00-00
Unavailable
15
SPACER
2CR-23118-00-00
Unavailable
16
GUIDE, SPRING
2CR-23117-00-00
Unavailable
17
BOLT, CAP
2CR-23111-10-00
Unavailable
18
O-RING
39P-23147-00-00
Unavailable
19
BOLT,SOCKET
91314-08040-00
Unavailable
20
FRONT FORK ASSY (R
B3L-23103-10-00
Unavailable
21
INNER TUBE COMP.2
B3L-23120-01-00
Unavailable
29
CYLINDER COMP., FRONT FORK
B3L-23170-00-00
Unavailable
30
VALVE COMP.
B3L-2316A-00-00
Unavailable
34
SPACER
2CR-23118-00-00
Unavailable
35
GUIDE, SPRING
2CR-23117-00-00
Unavailable
36
BOLT, CAP
2CR-23111-10-00
Unavailable
37
O-RING
39P-23147-00-00
Unavailable
38
BOLT,SOCKET
91314-08040-00
Unavailable
39
PROTECTOR
5PW-23472-00-00
Unavailable
40
UNDER BRACKET COMP.
B3L-23340-00-00
Unavailable
41
SEAL, STEERING
3FV-23462-00-00
Unavailable
42
BEARING
93399-99957-00
Unavailable
43
BOLT,SOCKET
91314-08030-00
Unavailable
44
FORK SEAL KIT (ONE FORK)
B3L-W003B-00-00
Unavailable
