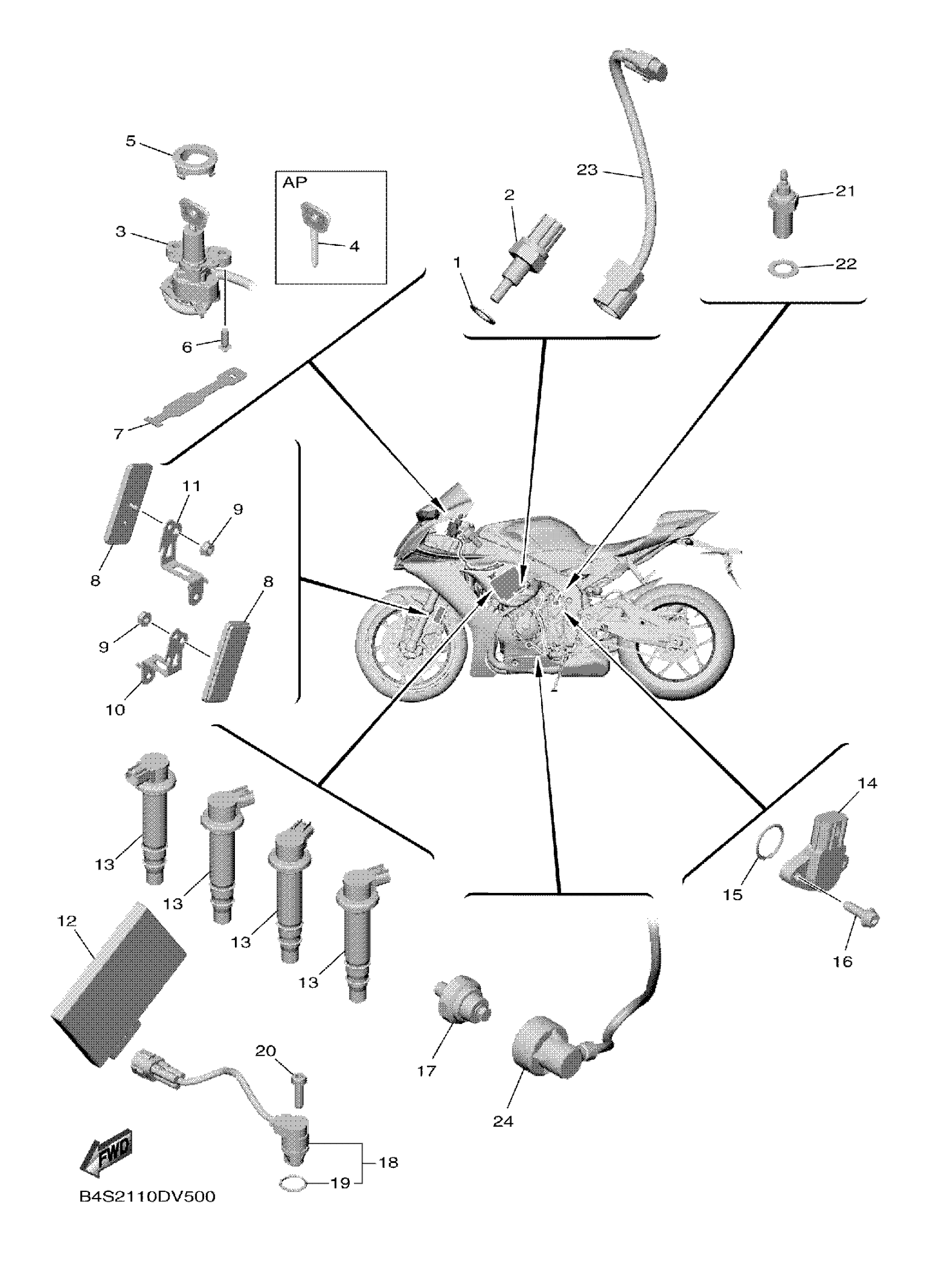

Yamaha YZFR1N1W (YZFR1 WGP 60TH) B3LT 2022 ELECTRICAL 1 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

MAIN SWITCH STEERING LOCK

B3L-82501-11-00

$165.99

4

BLANK KEY

4BH-82511-09-00

$30.99

5

CAP, SWITCH

36P-82552-00-00

$15.49

6

BOLT

90109-08196-00

$8.49

7

PROTECTOR

B3L-2376R-00-00

$2.28

8

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

9

NUT, FLANGE

95702-05500-00

$0.38

10

BRACKET, REFLECTOR

2CR-85112-00-00

Unavailable

11

BRACKET, REFLECTOR

2CR-85122-00-00

$27.99

12

ENGINE CONTROL UNIT ASSY

B3L-8591A-11-00

Unavailable

13

IGNITION COIL ASSY

2CR-82310-00-00

$137.99

14

SENSOR, GEAR POSITION

2CR-85899-10-00

$113.99

15

O-RING

93210-17008-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

Unavailable

17

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

Unavailable

18

SENSOR, CAM POSITION

B3L-85896-01-00

Unavailable

19

O-RING

4D9-81168-00-00

Unavailable

20

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

21

NEUTRAL SWITCH ASSY

3GB-82540-01-00

Unavailable

22

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

23

WIRE, SUB LEAD

1RC-82309-01-00

Unavailable

24

WIRE, SUB LEAD

B3L-82509-11-00

Unavailable
