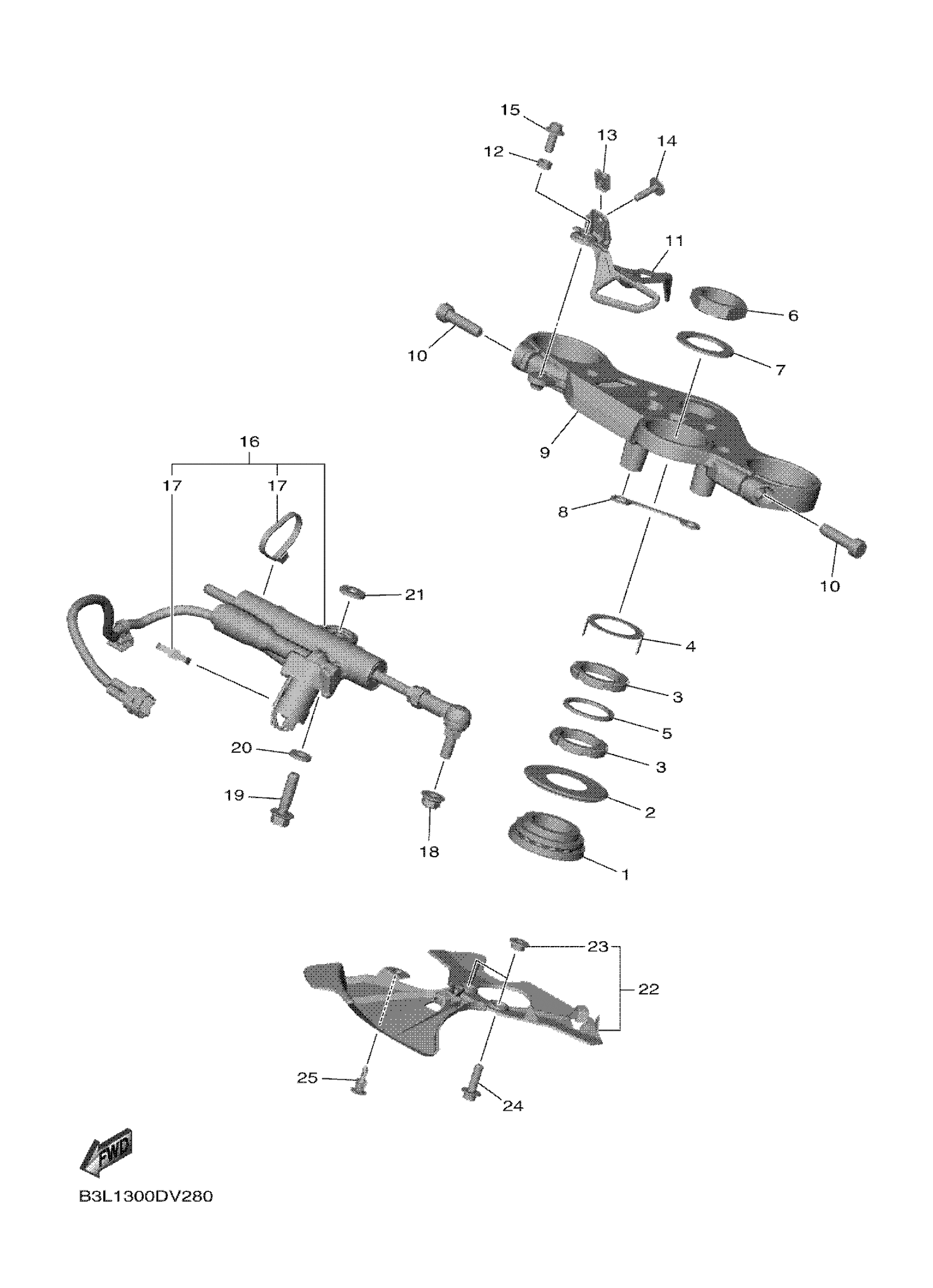

Yamaha YZFR1N1L (YZFR1) B3LH 2022 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99932-00

$63.99

2

COVER, BALL RACE 1

4XV-23415-01-00

$24.99

3

NUT

90179-30691-00

$33.99

4

WASHER, SPECIAL

4XV-23418-00-00

$17.49

5

WASHER, PLATE

90202-30235-00

$8.49

6

NUT

90170-28419-00

$40.99

7

WASHER, PLATE

90201-281U8-00

$11.49

8

GUIDE, CABLE

2CR-23389-00-00

Unavailable

9

CROWN, HANDLE

2CR-23435-01-00

$170.99

10

BOLT,SOCKET

91314-08030-00

$2.34

11

STAY

2CR-26292-00-00

$11.99

12

COLLAR

90387-06106-00

$7.49

13

NUT, SPRING

90183-050A6-00

$8.49

14

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$8.49

15

BOLT, HEXAGON SOCKET HEAD

90110-06122-00

$7.49

16

HANDLEBAR SHIMMY D

B3L-23490-01-00

Unavailable

17

BAND

1UA-82591-00-00

Unavailable

18

NUT, SELF-LOCKING

95602-08200-00

Unavailable

19

BOLT, FLANGE

95812-08030-00

Unavailable

20

WASHER (1T1)

90201-08649-00

Unavailable

21

WASHER

5VY-26398-00-00

Unavailable

22

COVER, STEERING

2CR-23818-00-00

Unavailable

23

SPACER (25G)

90560-06244-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

25

RIVET

90269-06008-00

Unavailable
