Description

Price

1

COVER, SIDE 1

2CR-21711-00-33

$142.99

2

COVER, SIDE 3

2CR-21731-00-00

$29.99

3

TAPE 1

2CR-2173T-01-00

$14.49

4

TAPE 3

2CR-2173R-01-00

$2.18

5

SEAL 1

1RC-2111D-00-00

$4.63

6

NUT, SPRING

90183-060A6-00

$5.49

7

COVER, SIDE 2

2CR-21721-00-33

$142.99

8

COVER, SIDE 4

2CR-21741-00-00

$29.99

9

TAPE 2

2CR-2173U-02-00

$8.99

10

TAPE 3

2CR-2173R-01-00

$2.18

11

SEAL 1

1RC-2111D-00-00

$4.63

12

NUT, SPRING

90183-060A6-00

$5.49

13

COLLAR

90387-06106-00

$7.49

14

COLLAR

90387-06069-00

Unavailable

15

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

16

BOLT,HEX. SOCKET BUTTON

90111-06136-00

Unavailable

17

RIVET

90269-06001-00

Unavailable

18

RIVET

90269-05005-00

Unavailable

19

COVER, SIDE 5

2CR-2171E-01-00

Unavailable

20

DAMPER

4C8-21747-00-00

Unavailable

21

RIVET

90269-05001-00

Unavailable

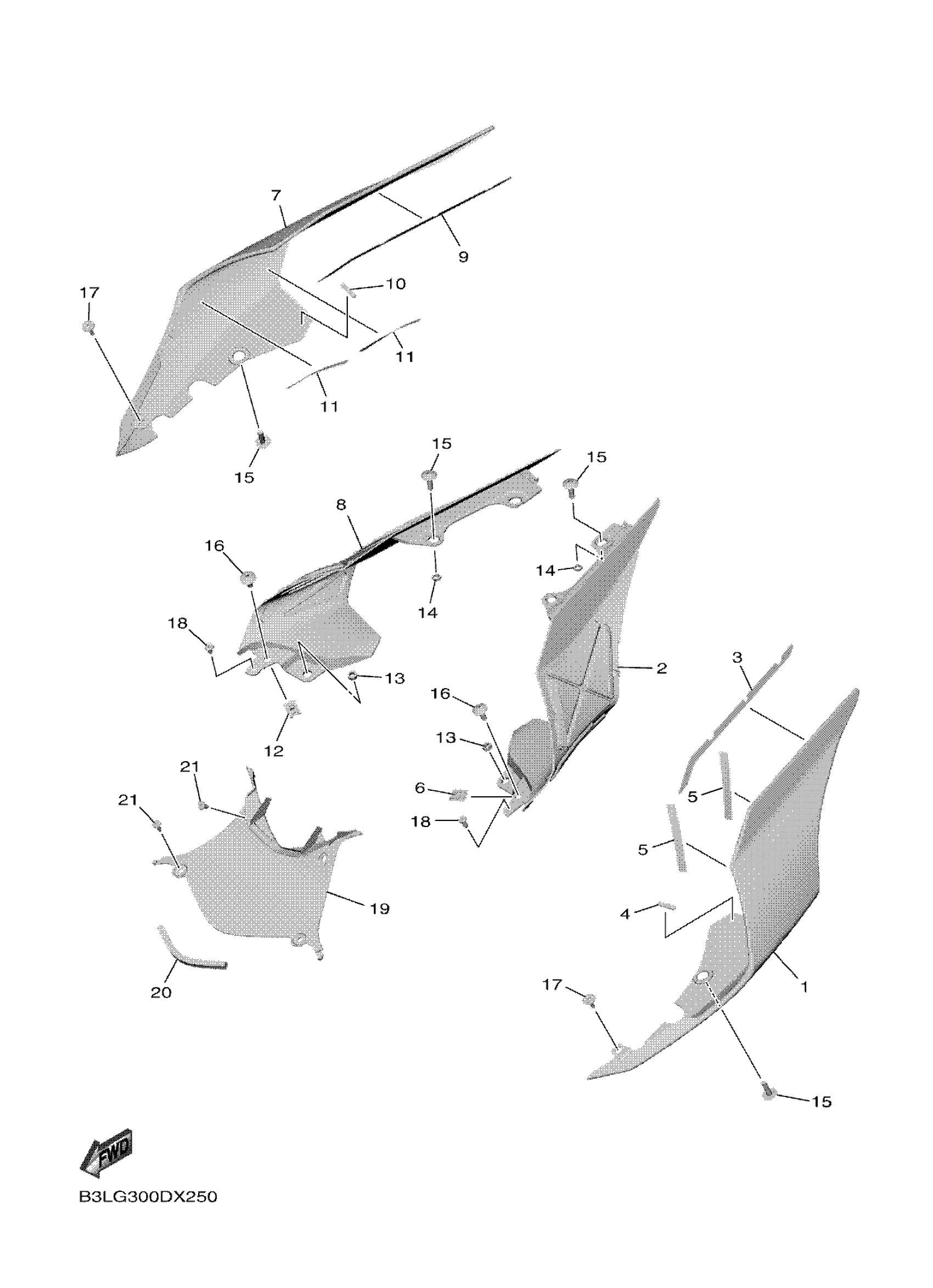

Yamaha YZFR1N1L (YZFR1) B3LH 2022 SIDE COVER Diagram

COVER, SIDE 1

COVER, SIDE 3

TAPE 1

TAPE 3

SEAL 1

NUT, SPRING

COVER, SIDE 2

COVER, SIDE 4

TAPE 2

TAPE 3

SEAL 1

NUT, SPRING

COLLAR

COLLAR

BOLT,HEX. SOCKET BUTTON

BOLT,HEX. SOCKET BUTTON

RIVET

RIVET

COVER, SIDE 5

DAMPER

RIVET
