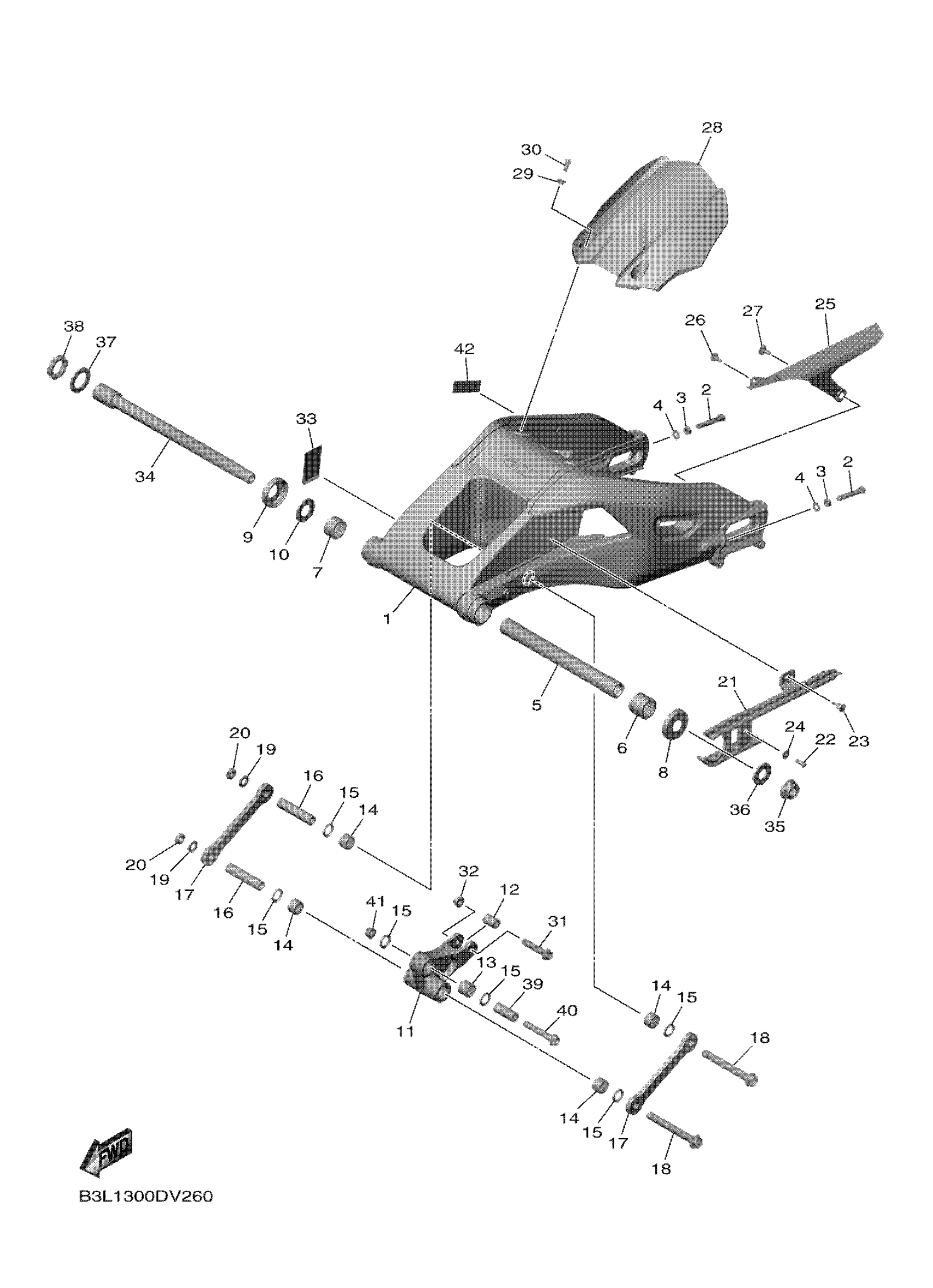

Yamaha YZFR1N1L (YZFR1) B3LH 2022 REAR ARM Diagram
#
1
REAR ARM COMP.
B3L-22110-00-00
Unavailable
5
BUSH
2CR-22184-00-00
Unavailable
11
ARM, RELAY
B3L-2217A-00-00
Unavailable
16
COLLAR(4BH)
90387-126Y1-00
Unavailable
17
ARM 1
2CR-2217M-00-00
Unavailable
18
BOLT
90109-12010-00
Unavailable
19
WASHER(6TA)
92907-12600-00
Unavailable
20
NUT, SELF-LOCKING
90185-12011-00
Unavailable
21
SEAL, GUARD
2CR-22151-10-00
Unavailable
22
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
23
RIVET
90269-07007-00
Unavailable
24
COLLAR
90387-06242-00
Unavailable
25
CASE, CHAIN
2CR-22311-00-00
Unavailable
26
RIVET
90269-07007-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
28
REAR FENDER COMP.
2CR-21650-01-00
Unavailable
29
SPACER (25G)
90560-06244-00
Unavailable
30
BOLT, BUTTON
92014-06016-00
Unavailable
31
BOLT, WASHER BASED
90105-10017-00
Unavailable
32
NUT, S/L FLANGE
95602-10200-00
Unavailable
33
SEAL
5UY-21269-00-00
Unavailable
34
SHAFT, PIVOT
14B-22141-00-00
Unavailable
35
NUT, SELF-LOCKING
90185-20008-00
Unavailable
36
WASHER, PLATE
90201-20026-00
Unavailable
37
WASHER, PLATE
90201-30016-00
Unavailable
38
NUT
4C8-22252-00-00
Unavailable
39
COLLAR
90387-1012B-00
Unavailable
40
BOLT
90109-10017-00
Unavailable
41
NUT, S/L FLANGE
95602-10200-00
Unavailable
42
LABEL, TIRE
2CR-21668-01-00
Unavailable
