Description

Price

1

OIL COOLER ASSY

2CR-13470-00-00

$458.99

2

GROMMET (29L)

90480-15363-00

$8.49

3

COLLAR

90387-0614M-00

$11.49

4

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

5

BOLT, HEXAGON SOCKET HEAD

90110-06346-00

$8.49

6

HOSE, OIL 1

2CR-13464-00-00

$220.99

7

O-RING(36Y)

93210-13657-00

$7.49

8

BOLT,SOCKET HEAD

91314-06020-00

$1.49

9

HOSE, OIL 2

2CR-13465-00-00

$214.99

10

O-RING(36Y)

93210-13657-00

$7.49

11

BOLT,SOCKET HEAD

91314-06020-00

$1.49

12

STAY

2CR-13151-00-00

$15.49

13

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

14

STAY 2

2CR-13152-00-00

$15.49

15

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

16

STAY

2CR-13782-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

18

NUT,SELF-LOCKING

95607-06200-00

Unavailable

19

BOLT, FLANGE

95817-06030-00

Unavailable

20

COVER, OIL COOLER

2CR-13463-00-00

Unavailable

21

DAMPER

2CR-13381-00-00

Unavailable

22

DAMPER, SIDE COVER

2CR-2411J-00-00

Unavailable

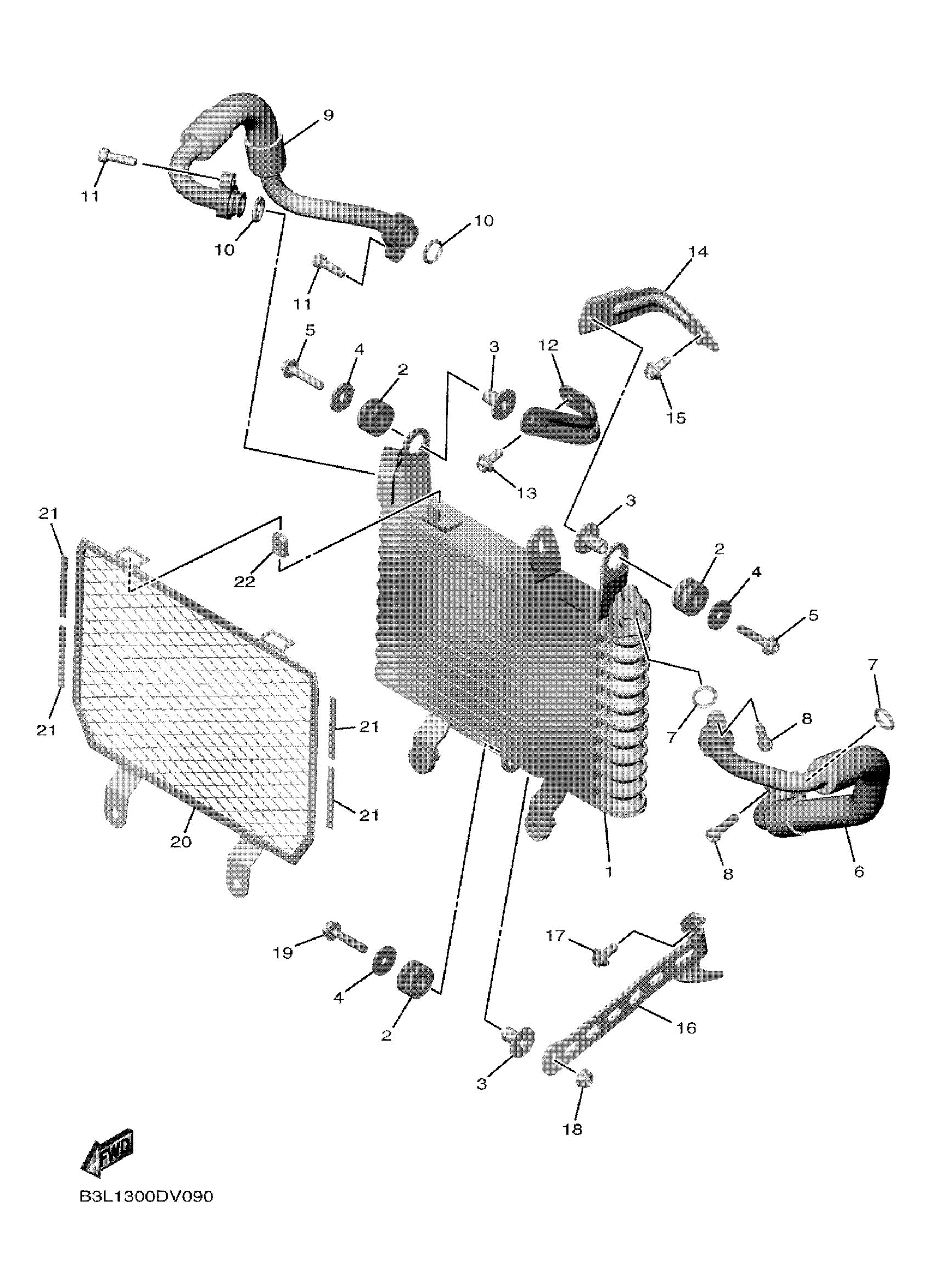

Yamaha YZFR1N1L (YZFR1) B3LH 2022 OIL COOLER Diagram

OIL COOLER ASSY

GROMMET (29L)

COLLAR

WASHER, PLATE(36Y)

BOLT, HEXAGON SOCKET HEAD

HOSE, OIL 1

O-RING(36Y)

BOLT,SOCKET HEAD

HOSE, OIL 2

O-RING(36Y)

BOLT,SOCKET HEAD

STAY

BOLT, HEXAGON SOCKET HEAD

STAY 2

BOLT, HEXAGON SOCKET HEAD

STAY

BOLT, HEXAGON SOCKET HEAD

NUT,SELF-LOCKING

BOLT, FLANGE

COVER, OIL COOLER

DAMPER

DAMPER, SIDE COVER
