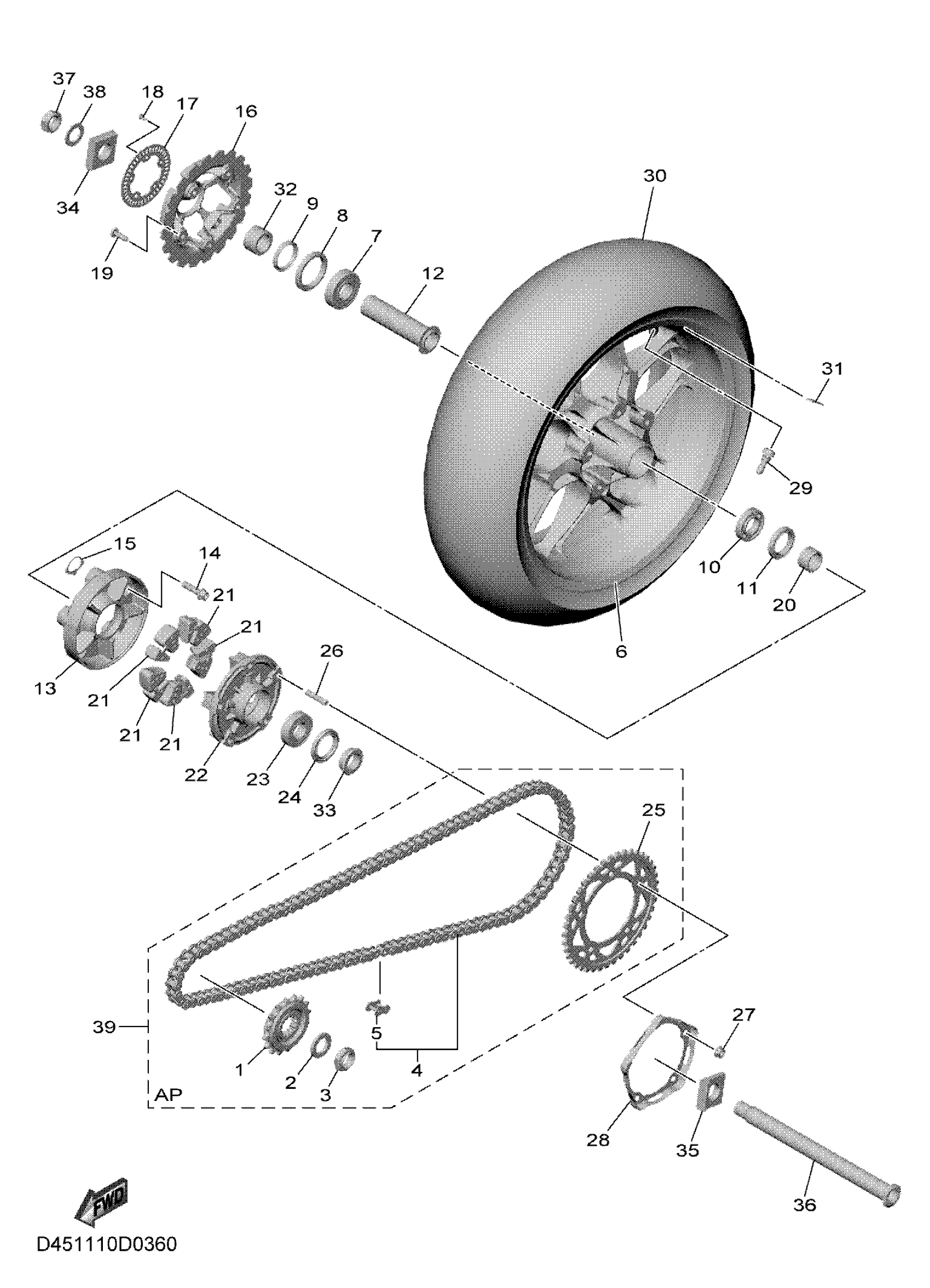

Yamaha YZFR1MSC (YZFR1M CA) DE62 2025 REAR WHEEL Diagram
#
4
CHAIN (DID525HV3 114LL)
94A40-12114-00
Unavailable
6
CAST WHEEL, REAR
B3L-25338-00-P0
Unavailable
8
NUT, ADJUSTING
2CR-2538E-00-00
Unavailable
12
SPACER ASSY
2CR-253W0-00-00
Unavailable
16
PLATE, DISK
B3L-2581A-00-00
Unavailable
17
ROTOR, SENSOR
1SD-2517G-00-00
Unavailable
18
SCREW
90149-05030-00
Unavailable
19
BOLT
90109-085G6-00
Unavailable
20
COLLAR
90387-28022-00
Unavailable
21
DAMPER
2CR-25364-00-00
Unavailable
22
CLUTCH, HUB
2CR-25366-00-00
Unavailable
23
BEARING(3JN)
93306-20531-00
Unavailable
24
OIL SEAL
93106-40013-00
Unavailable
25
SPROCKET, DRIVEN (
2CR-25441-00-00
Unavailable
26
BOLT, STUD
90116-10048-00
Unavailable
27
NUT, SELF-LOCKING
90185-10011-00
Unavailable
28
BRACKET 1
B3L-2537W-00-00
Unavailable
29
VALVE, RIM(2GH)
93900-00030-00
Unavailable
30
TIRE(200/55 ZR17 M/C 78W)
94120-17012-00
Unavailable
31
BALANCER, WHEEL
2CR-25398-00-00
Unavailable
32
COLLAR
90387-28023-00
Unavailable
33
COLLAR
90387-28024-00
Unavailable
34
PULLER, CHAIN 1
5VY-25388-00-00
Unavailable
35
PULLER, CHAIN 2
5VY-25389-01-00
Unavailable
36
AXLE, WHEEL
2CR-25381-00-00
Unavailable
37
NUT, SELF-LOCKING
90185-24007-00
Unavailable
38
WASHER, PLATE
90201-25020-00
Unavailable
39
CHAIN & SPROCKET K
B3L-W001A-00-00
Unavailable
