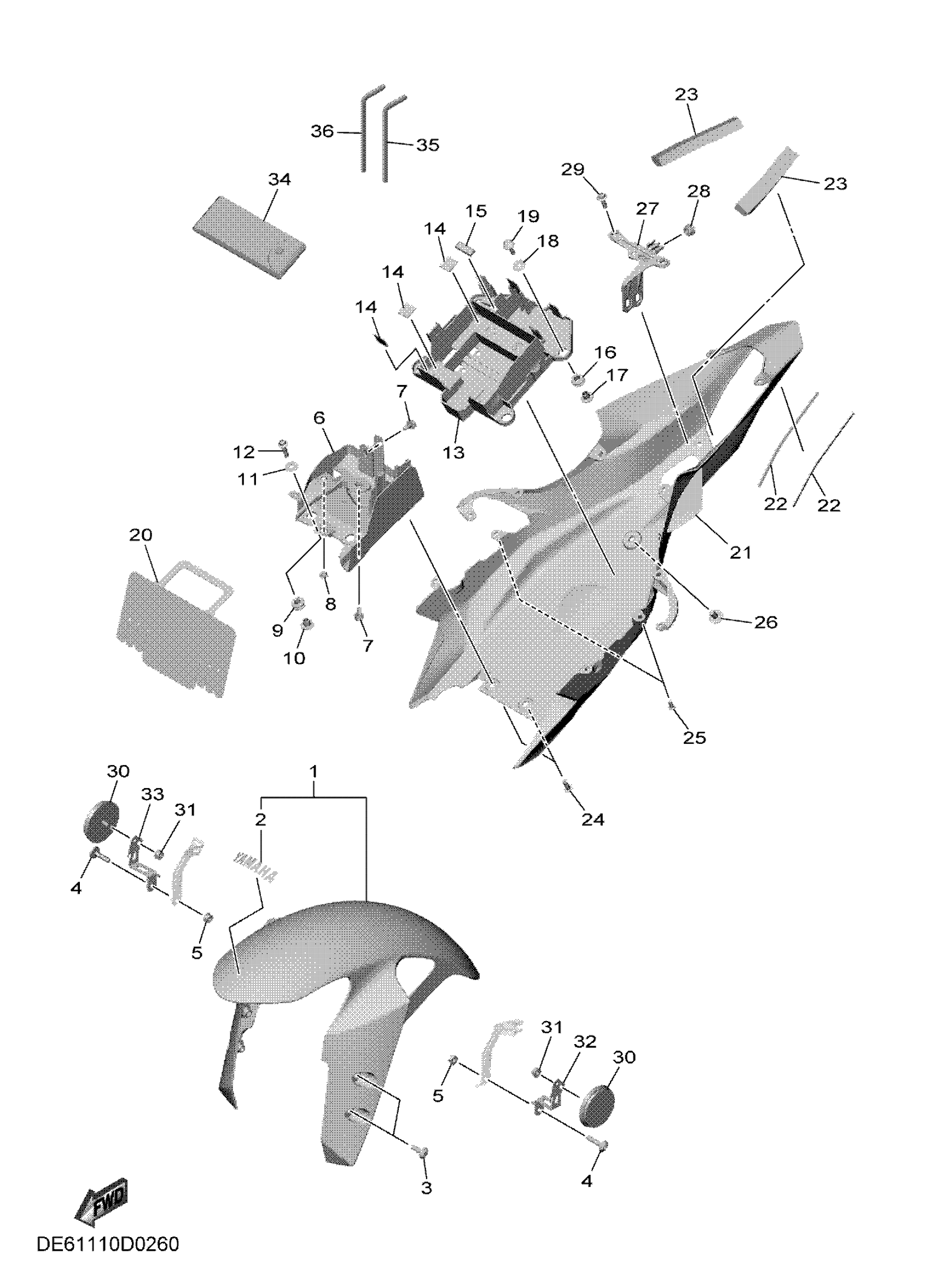

Yamaha YZFR1MSC (YZFR1M CA) DE62 2025 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

2KS-Y2151-00-00

$1,580.99

2

EMBLEM, YAMAHA

99246-00080-00

$20.99

3

BOLT

90111-06043-00

$4.46

4

BOLT

90111-06041-00

$8.49

5

NUT, FLANGE(4MV)

95707-06500-00

$1.23

6

BOX, BATTERY 1

B3L-8212B-00-00

$29.99

7

BOLT, FLANGE

95817-06012-00

$1.43

8

PLUG 288833190000

90338-07043-00

$8.49

9

GROMMET (462)

90480-13018-00

$8.49

10

COLLAR(8Y7)

90387-073M2-00

$8.49

11

WASHER, PLATE

90201-06088-00

Unavailable

12

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

13

BOX, BATTERY 2

2CR-8212C-00-00

$24.99

14

DAMPER

13S-21649-00-00

$6.99

15

DAMPER

5HN-2139X-00-00

$2.13

16

GROMMET (462)

90480-13018-00

$8.49

17

COLLAR(8Y7)

90387-073M2-00

$8.49

18

WASHER, PLATE

90201-06088-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

20

PROTECTOR

B3L-21652-00-00

Unavailable

21

FENDER, REAR

2CR-21611-01-00

Unavailable

22

DAMPER, PLATE 1

3C5-2414H-00-00

Unavailable

23

DAMPER, PLATE

90520-20003-00

Unavailable

24

RIVET

90269-06008-00

Unavailable

25

RIVET

90269-05005-00

Unavailable

26

RIVET(4JH)

90269-07076-00

Unavailable

27

BRACKET, TAILLIGHT

2CR-2117E-01-00

Unavailable

28

GROMMET

90480-10003-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

30

REFLECTOR, FRONT 1

4AG-85111-00-00

Unavailable

31

NUT, FLANGE

95702-06500-00

Unavailable

32

BRACKET, REFLECTOR

2CR-85112-00-00

Unavailable

33

BRACKET, REFLECTOR

2CR-85122-00-00

Unavailable

34

TOOL KIT

2CR-28100-01-00

Unavailable

35

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

36

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable
