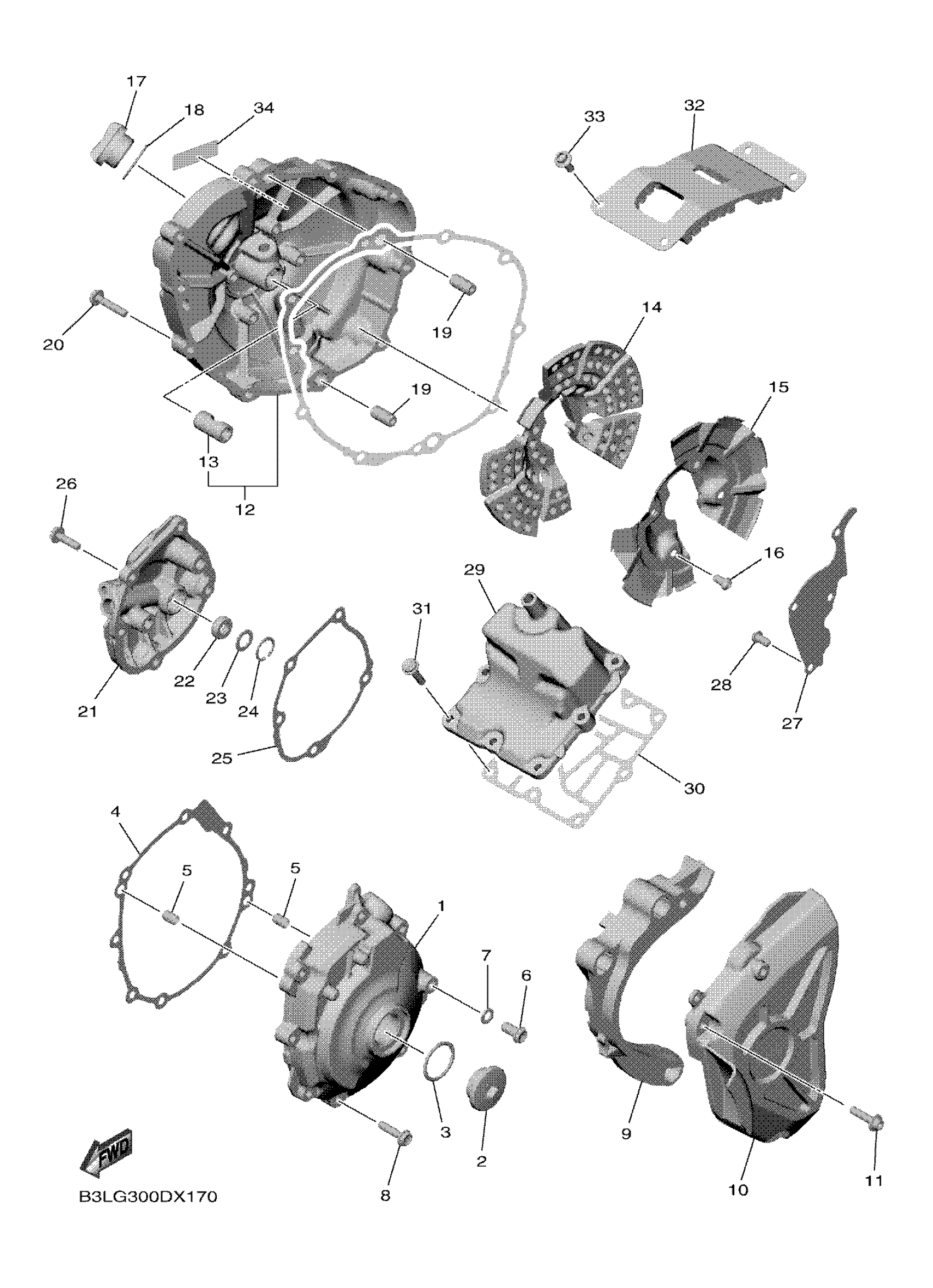

Yamaha YZFR1MSC (YZFR1M CA) DE62 2025 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

B3L-15411-00-00

$236.58

2

PLUG, STRAIGHT SCREW

90340-27007-00

Unavailable

3

O-RING(1KT)

93210-27778-00

$6.43

4

GASKET, CRANKCASE

2CR-15451-00-00

$12.60

5

PIN, DOWEL

99530-08012-00

$4.89

6

BOLT

90109-08239-00

Unavailable

7

. GASKET

90430-08143-00

$2.88

8

BOLT

90109-06300-00

$13.70

9

GUIDE, INLET

2CR-15377-10-00

$39.26

10

COVER, CHAIN CASE

2CR-15418-00-00

$21.11

11

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$2.31

12

COVER, CRANKCASE 2

BX4-15421-00-00

$261.36

13

COLLAR

5VY-15541-00-00

Unavailable

14

DAMPER 1

2CR-15316-00-00

Unavailable

15

COVER

2CR-15492-00-00

$23.17

16

SCREW

90149-06156-00

Unavailable

17

PLUG, OIL

2CR-15363-01-00

Unavailable

18

O-RING (25G)

93210-29574-00

Unavailable

19

PIN, DOWEL

91810-20002-00

Unavailable

20

BOLT

90109-06301-00

Unavailable

21

COVER, OIL PUMP

BX4-15416-01-00

Unavailable

22

OIL SEAL

93101-10004-00

Unavailable

23

WASHER PLATE 164185720000

90201-12166-00

Unavailable

24

CIRCLIP

99009-19500-00

Unavailable

25

GASKET, OIL PUMP C

2CR-15456-00-00

Unavailable

26

BOLT

90109-06299-00

Unavailable

27

PLATE, BREATHER

2CR-11165-00-00

$3.00

28

SCREW

90149-06156-00

Unavailable

29

COVER

2CR-15413-00-00

Unavailable

30

GASKET, CRANKCASE

2CR-15462-00-00

Unavailable

31

BOLT

90109-06300-00

$13.70

32

PLATE

2CR-15113-01-00

$50.23

33

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable

34

OIL, LABEL

B5Y-1548B-00-00

Unavailable
