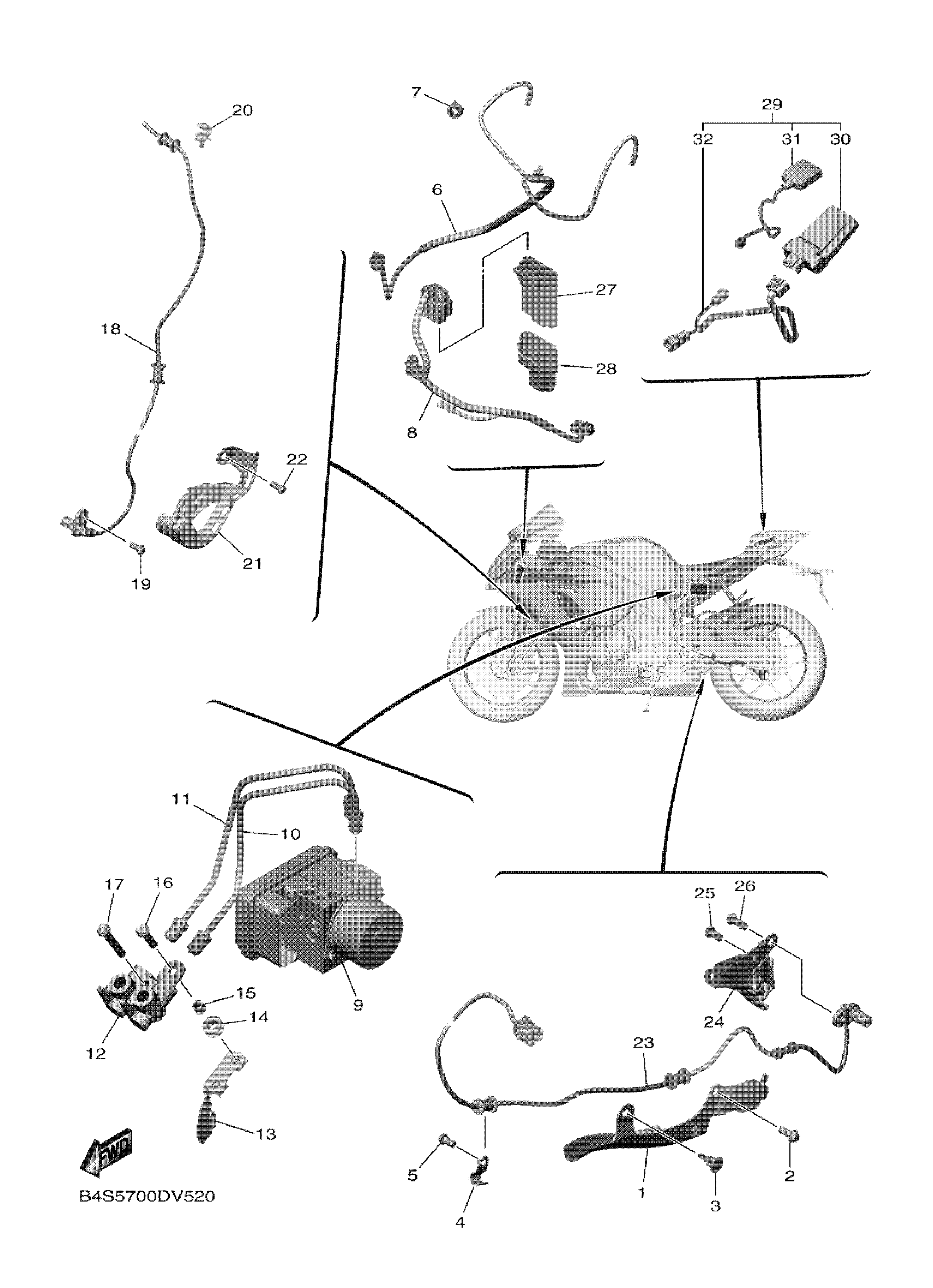

Yamaha YZFR1MRC (YZFR1M CA) D465 2024 ELECTRICAL 3 Diagram

#

Description
Price

1

COVER

2CR-2219X-00-00

Unavailable

2

BOLT, BUTTON HEAD

92012-06016-00

$8.49

3

RIVET

90269-07007-00

$4.08

4

HOOK

2CR-2216F-00-00

$4.89

5

BOLT, BUTTON HEAD

92017-06012-00

$7.49

6

WIRE, SUB LEAD

B4S-82509-00-00

Unavailable

7

CLAMP

90464-16003-00

$7.49

8

WIRE, SUB LEAD

B4S-82509-10-00

Unavailable

9

HYDRAULIC UNIT ASS

B3L-85930-08-00

$936.99

10

PIPE, BRAKE

B3L-25871-00-00

Unavailable

11

PIPE, BRAKE 2

B3L-25882-00-00

Unavailable

12

JOINT

2CR-25885-00-00

$62.99

13

BRACKET, CABLE

2CR-27251-00-00

Unavailable

14

GROMMET

90480-11006-00

$4.41

15

COLLAR (3L6)

90387-06761-00

$9.49

16

BOLT, BUTTON

92017-06020-00

Unavailable

17

BOLT, BUTTON

92017-06035-00

Unavailable

18

WHEEL SENSOR ASSY, FRONT

2KS-85970-01-00

Unavailable

19

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

20

CLAMP(3LD)

90464-09129-00

Unavailable

21

PROTECTOR 1

2KS-2315H-01-00

Unavailable

22

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

23

WHEEL SENSOR ASSY, REAR

2CR-85980-01-00

Unavailable

24

PROTECTOR

2CR-27491-01-00

Unavailable

25

BOLT, BUTTON HEAD

92012-06016-00

$8.49

26

BOLT

90109-06234-00

Unavailable

27

SUSPENSION CONTROL UNIT ASSY

B4S-85902-00-00

Unavailable

28

COVER

2KS-85599-00-00

Unavailable

29

COMMUNICATION CONT. UNIT COMP.

B4S-85800-01-00

Unavailable

30

COMMUNICATION CONT

B4S-85810-02-00

Unavailable

31

GPS UNIT

2KS-88107-00-00

Unavailable

32

WIRE, LEAD

B4S-85721-00-00

Unavailable
