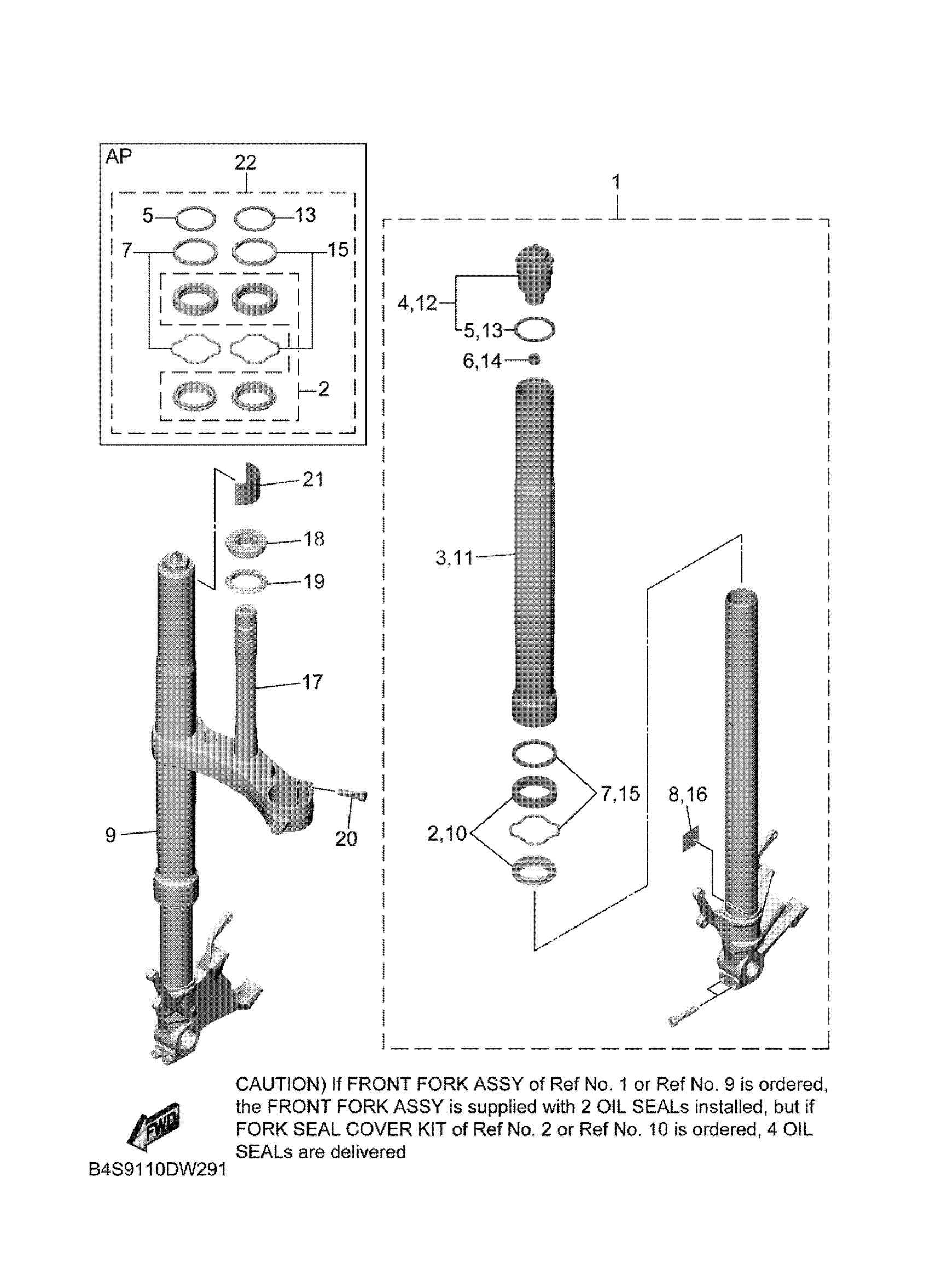

Yamaha YZFR1MPC (YZFR1M CA) B4SN 2023 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

B4S-23102-12-00

$2,517.99

2

FORK SEAL COVER KIT

2KS-231E0-00-00

$136.99

3

OUTER TUBE COMP.

B4S-23106-00-00

Unavailable

4

BOLT, CAP

B4S-23111-00-00

$479.99

5

O-RING

93210-41N50-00

$8.49

6

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

7

. FORK WASHER CIRCLIP KIT

2KS-231M0-00-00

Unavailable

8

LABEL, WARNING

1MC-22259-11-00

Unavailable

9

FRONT FORK ASSY (R.H)

B4S-23103-12-00

$3,236.99

10

FORK SEAL COVER KIT

2KS-231E0-00-00

$136.99

11

OUTER TUBE COMP.

B4S-23106-00-00

Unavailable

12

BOLT, CAP

B4S-23111-00-00

$479.99

13

O-RING

93210-41N50-00

$8.49

14

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

15

. FORK WASHER CIRCLIP KIT

2KS-231M0-00-00

Unavailable

16

LABEL, WARNING

1MC-22259-11-00

Unavailable

17

UNDER BRACKET COMP

2CR-23340-00-00

Unavailable

18

BEARING

93399-99957-00

Unavailable

19

SEAL, STEERING

3FV-23462-00-00

Unavailable

20

BOLT,SOCKET

91314-08030-00

Unavailable

21

PROTECTOR

5PW-23472-00-00

Unavailable

22

FORK SEALS KIT

BW8-W003B-01-00

Unavailable
