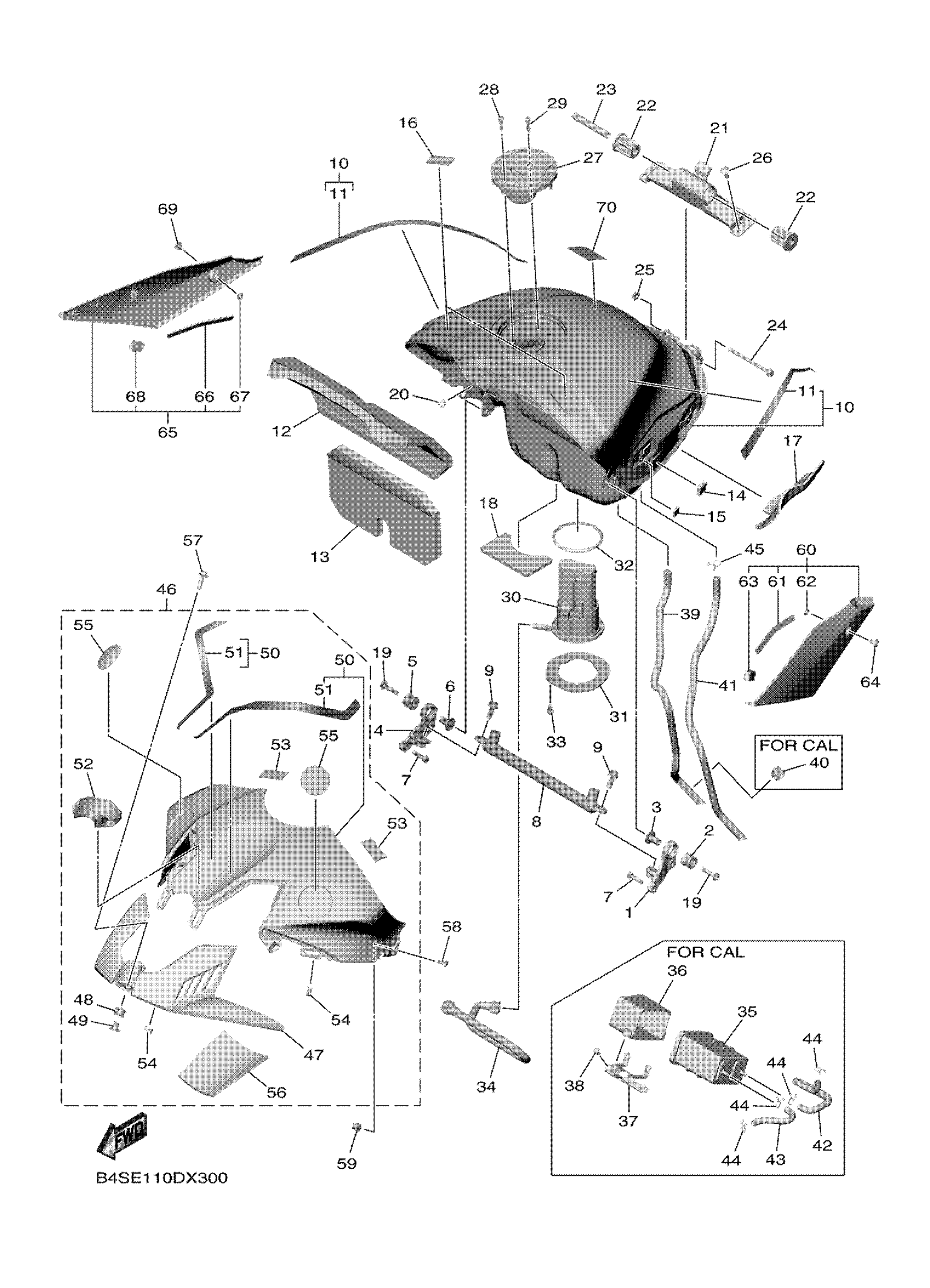

Yamaha YZFR1MNC (YZFR1M CA) B4SF 2022 FUEL TANK Diagram

#

Description
Price

1

BRACKET, FUEL TANK

2CR-24191-00-00

Unavailable

2

GROMMET

90480-18008-00

$3.71

3

COLLAR

90387-06091-00

$8.49

4

BRACKET, FUEL TANK

2CR-24192-00-00

Unavailable

5

GROMMET

90480-18008-00

$3.71

6

COLLAR

90387-06091-00

$8.49

7

BOLT,SOCKET

91317-06025-00

$5.60

8

CROSS BAR

B3L-2142V-00-00

Unavailable

9

BOLT, HEXAGON SOCKET HEAD

90110-08097-00

$8.49

10

FUEL TANK COMP.

B4S-Y2410-10-02

$2,283.99

11

GRAPHIC SET

2KS-24240-00-00

Unavailable

12

DAMPER, PLATE 1

2CR-2414H-00-00

$8.99

13

DAMPER, PLATE 2

2CR-2414J-00-00

$5.49

14

PAD, SEAT

4D9-24741-00-00

$4.37

15

DAMPER, SIDE COVER

5PW-2411J-01-00

$7.99

16

HOOK, SIDE COVER 1

2PP-2411G-00-00

Unavailable

17

PROTECTOR, FUEL TANK

B3L-24141-00-00

Unavailable

18

SEAL

B3L-2414G-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-06346-00

Unavailable

20

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

21

BRACKET, TANK FITTING

B3L-2413Y-00-00

Unavailable

22

DAMPER, LOCATING 3

5SL-24183-00-00

Unavailable

23

COLLAR

90387-06055-00

Unavailable

24

BOLT, FLANGE

95812-06090-00

Unavailable

25

NUT, FLANGE

95702-06500-00

Unavailable

26

BOLT

90111-06038-00

Unavailable

27

CAP ASSY

2CR-24602-01-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

29

BOLT

91312-05010-00

Unavailable

30

FUEL PUMP COMP.

2CR-13907-01-00

Unavailable

31

BRACKET, FUEL PUMP

2CR-24491-00-00

Unavailable

32

O-RING

1RC-24486-00-00

Unavailable

33

BOLT, WITH WASHER

90119-05015-00

Unavailable

34

PIPE, FUEL 1

B3L-13971-01-00

Unavailable

39

PIPE 2

2CR-24312-00-00

Unavailable

41

PIPE 3

2CR-24313-00-00

Unavailable

45

CLIP

90467-090A2-00

Unavailable

46

TOP COVER ASSY.

B4S-W217A-10-3X

Unavailable

47

COVER, TOP

B3L-2171A-00-P0

Unavailable

48

GROMMET

90480-12023-00

Unavailable

49

COLLAR

90387-06203-00

Unavailable

50

COVER, TANK ASSY

B4S-Y240B-00-3X

Unavailable

51

GRAPHIC SET 1

B4S-24230-00-00

Unavailable

52

EMBLEM

B4S-2416B-09-00

Unavailable

53

HOOK, SIDE COVER 1

5XT-2411G-00-00

Unavailable

54

CLAMP

90464-04005-00

Unavailable

55

EMBLEM

1RC-2413B-02-00

Unavailable

56

DAMPER, PLATE 3

B3L-2414K-00-00

Unavailable

57

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

58

SCREW, BIND

98902-05014-00

Unavailable

59

NUT(1KT)

90179-05523-00

Unavailable

60

TANK SIDE COVER ASSY 1

B3L-24106-00-P1

Unavailable

61

DAMPER, PLATE

90520-03016-00

Unavailable

62

COLLAR

90387-05035-00

Unavailable

63

PAD, SEAT

4D9-24741-00-00

$4.37

64

BOLT,HEX. SOCKET BUTTON

90111-05057-00

Unavailable

65

TANK SIDE COVER ASSY 2

B3L-24108-00-P1

Unavailable

66

DAMPER, PLATE

90520-03016-00

Unavailable

67

COLLAR

90387-05035-00

Unavailable

68

PAD, SEAT

4D9-24741-00-00

$4.37

69

BOLT,HEX. SOCKET BUTTON

90111-05057-00

Unavailable

70

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable
