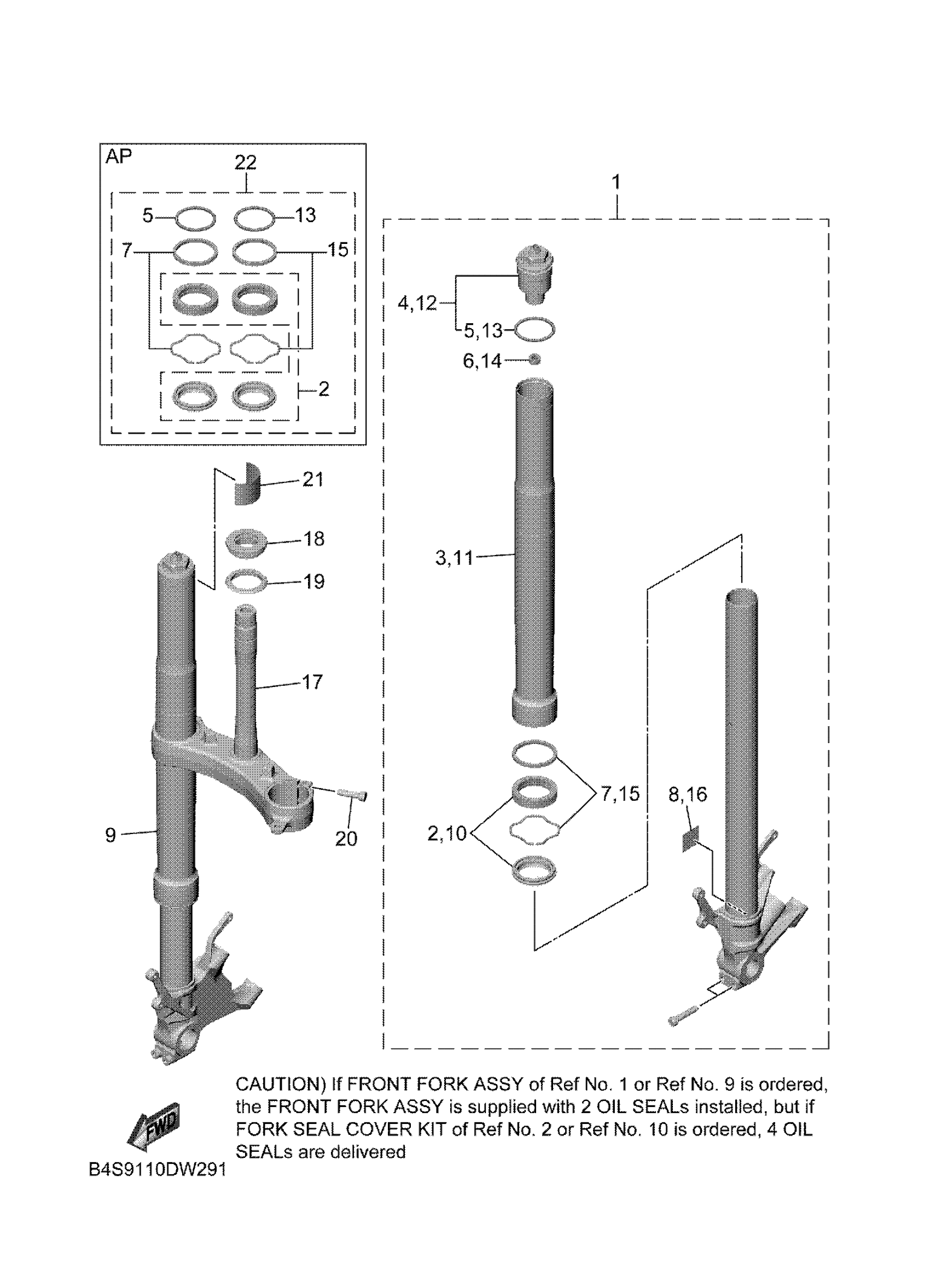

Yamaha YZFR1MNC (YZFR1M CA) B4SF 2022 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
B4S-23102-11-00
Unavailable
3
OUTER TUBE COMP.
B4S-23106-00-00
Unavailable
7
. FORK WASHER CIRCLIP KIT
2KS-231M0-00-00
Unavailable
8
LABEL, WARNING
1MC-22259-10-00
Unavailable
9
FRONT FORK ASSY (R.H)
B4S-23103-11-00
Unavailable
11
OUTER TUBE COMP.
B4S-23106-00-00
Unavailable
15
. FORK WASHER CIRCLIP KIT
2KS-231M0-00-00
Unavailable
16
LABEL, WARNING
1MC-22259-10-00
Unavailable
17
UNDER BRACKET COMP
2CR-23340-00-00
Unavailable
18
BEARING
93399-99957-00
Unavailable
19
SEAL, STEERING
3FV-23462-00-00
Unavailable
20
BOLT,SOCKET
91314-08030-00
Unavailable
21
PROTECTOR
5PW-23472-00-00
Unavailable
22
FORK SEALS KIT
BW8-W003B-01-00
Unavailable
