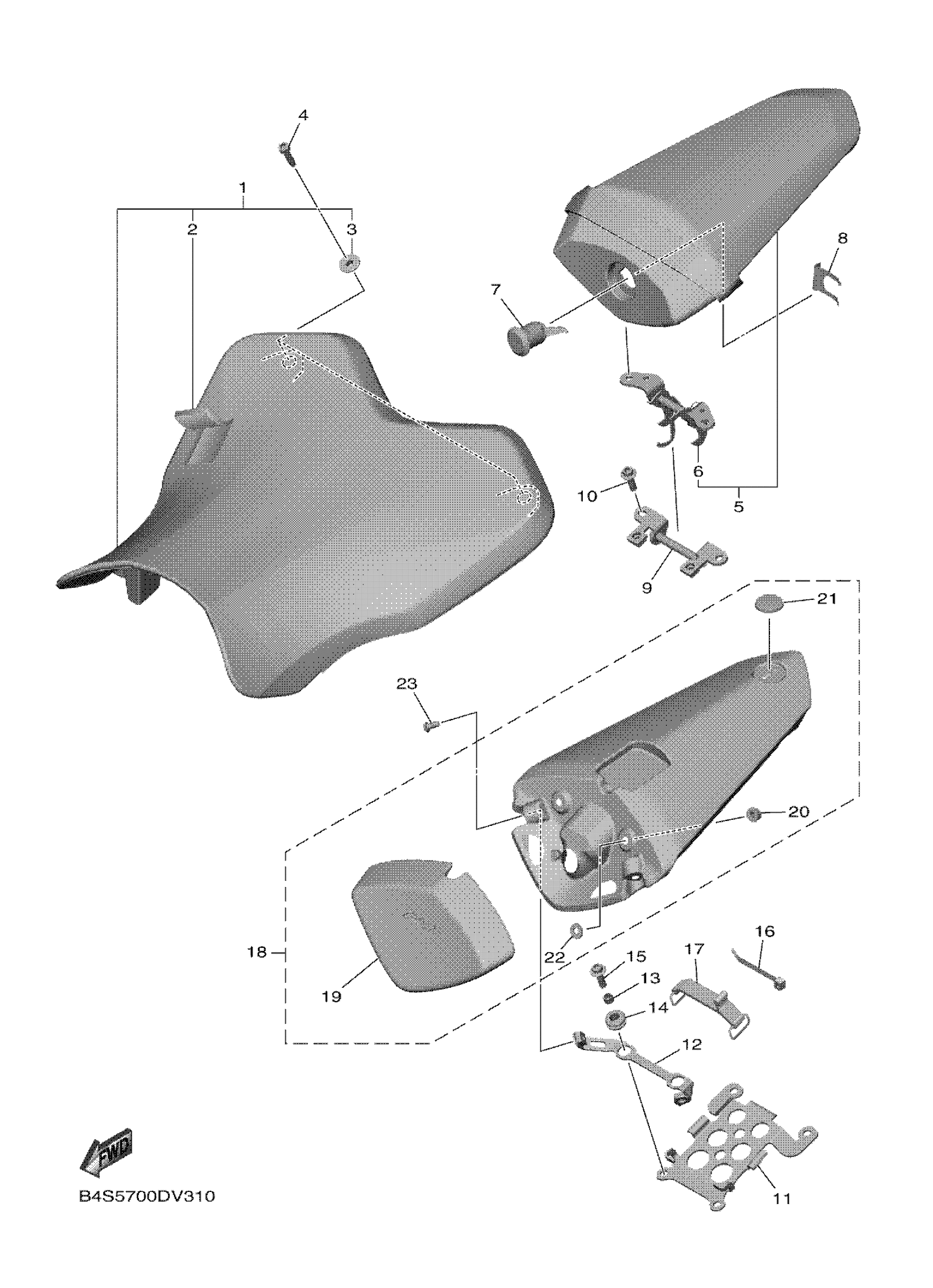

Yamaha YZFR1MMC (YZFR1M CA) B4SA 2021 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

2CR-24710-01-00

$90.43

2

COVER, SINGLE SEAT

2CR-24711-01-00

Unavailable

3

COLLAR

90387-06066-00

$5.00

4

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$5.96

5

TANDEM SEAT ASSY

2CR-24750-01-00

$106.39

6

SEAT LOCK COMP.

2CR-2478R-00-00

$33.42

7

ROTOR SET

2CR-W2470-00-00

$55.57

8

SPRING, LOCK 2

5VY-2176V-00-00

$8.36

9

BRACKET, SEAT LOCK

2CR-2478X-00-00

$16.29

10

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15

11

BRACKET, TAIL COVE

2KS-2475U-00-00

$21.86

12

BRACKET, TAIL COVE

2KS-2475V-00-00

$17.03

13

COLLAR 8121444900

90387-06023-00

$7.15

14

GROMMET (2T4)

90480-12237-00

$1.82

15

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15

16

BAND

1UA-82591-00-00

Unavailable

17

BAND

55K-2811G-00-00

Unavailable

18

SEAT COVER ASSY

2KS-2477A-00-00

Unavailable

19

CUSHION

2KS-24753-00-00

Unavailable

20

NUT, U FLANGE

95604-06200-00

Unavailable

21

TUNING FORK MARK

8GC-2836B-02-00

Unavailable

22

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

23

SCREW(2VK)

90149-06250-00

Unavailable
