RADIATOR & HOSE

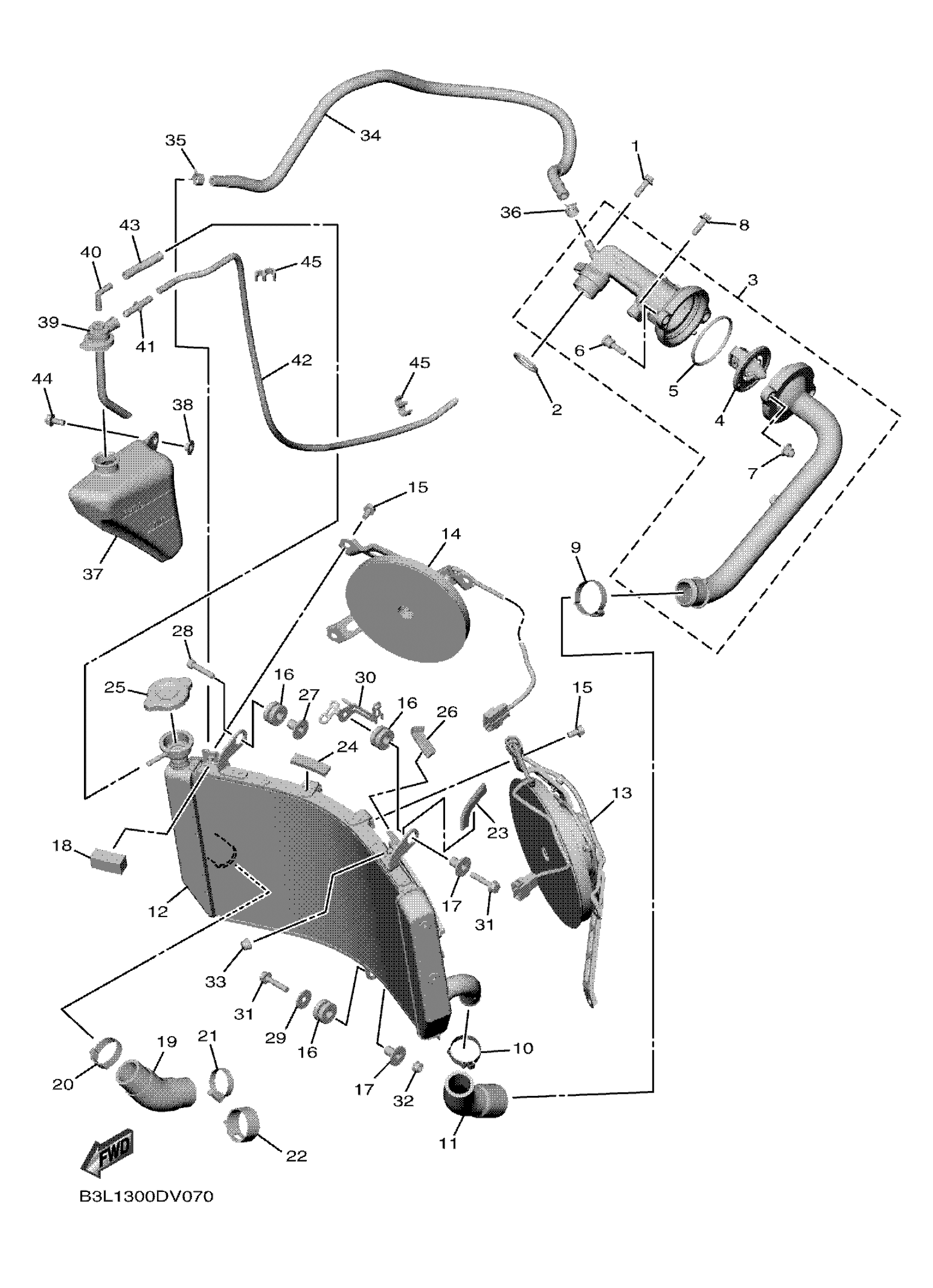

Yamaha YZFR1MMC (YZFR1M CA) B4SA 2021 RADIATOR & HOSE Diagram
#
5
O-RING (70E)
93210-54534-00
Unavailable
6
BOLT
2CR-12615-00-00
Unavailable
11
HOSE 3
2CR-12578-00-00
Unavailable
12
RADIATOR COMP
2CR-12461-00-00
Unavailable
14
BLOWER ASSY
2CR-12405-10-00
Unavailable
16
GROMMET (29L)
90480-15363-00
Unavailable
17
COLLAR
90387-0614M-00
Unavailable
18
DAMPER
3P6-21649-00-00
Unavailable
19
HOSE 7
2CR-12551-00-00
Unavailable
21
HOSE CLAMP ASSY
90450-35001-00
Unavailable
22
COVER 2
5GV-1246E-00-00
Unavailable
23
MOLD, FUEL TANK
5VN-24188-00-00
Unavailable
24
SPACER 2
JX4-78329-00-00
Unavailable
25
CAP, RADIATOR
5SL-12462-01-00
Unavailable
26
CAP
B3L-28245-00-00
Unavailable
27
COLLAR
90387-0614M-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
29
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
30
GUIDE, CABLE
2CR-26279-10-00
Unavailable
31
BOLT, FLANGE
95817-06030-00
Unavailable
32
NUT,SELF-LOCKING
95607-06200-00
Unavailable
33
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
34
HOSE 8
2CR-12552-00-00
Unavailable
35
CLIP(3BM)
90467-10135-00
Unavailable
36
CLIP (7K7)
90467-11044-00
Unavailable
37
TANK, RECOVERY
2CR-21871-00-00
Unavailable
38
COLLAR (8G8)
90387-06681-00
Unavailable
39
CAP
2C0-21875-00-00
Unavailable
40
ELBOW
26H-21828-00-00
Unavailable
41
JOINT
4XY-14568-00-00
Unavailable
42
PIPE 1
2CR-21816-00-00
Unavailable
43
HOSE (L50)
90445-09040-00
Unavailable
44
BOLT, FLANGE
95817-06014-00
Unavailable
45
CLAMP(6R8)
90464-10M38-00
Unavailable
