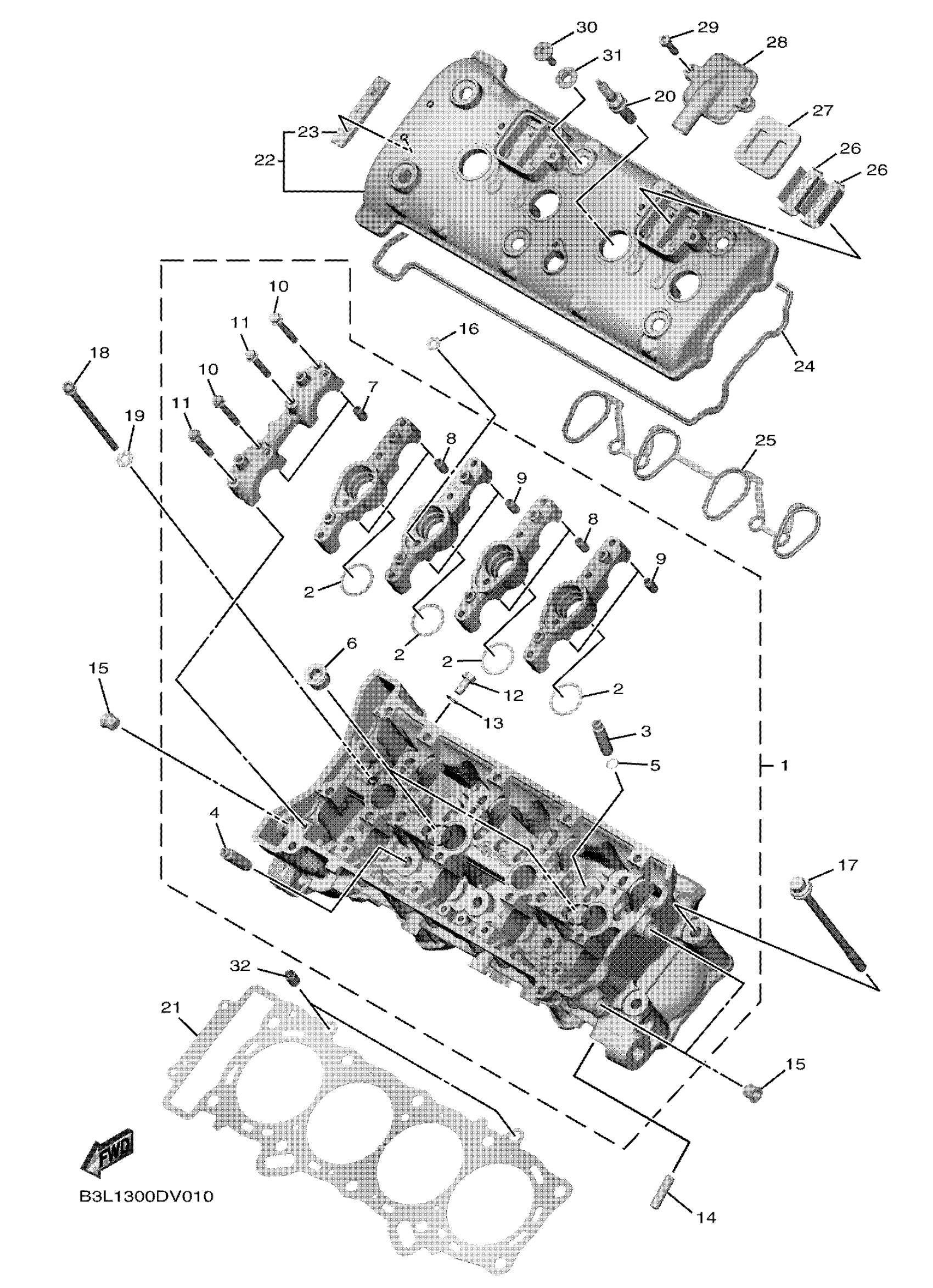

Yamaha YZFR1MMC (YZFR1M CA) B4SA 2021 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

B3L-W1101-08-00

$1,909.99

2

O-RING(36Y)

93210-26658-00

$7.49

3

GUIDE, VALVE 1

2CR-11133-10-00

$66.99

4

GUIDE, VALVE 2

2CR-11134-10-00

$66.99

5

CIRCLIP(1WG)

93440-10153-00

$2.39

6

PLUG, STRAIGHT SCR

90340-18004-00

Unavailable

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

BOLT, WASHER BASED

90105-06027-00

$7.49

11

BOLT, FLANGE

90105-06209-00

$2.17

12

BOLT, FLANGE

95022-06012-00

$3.29

13

GASKET 256113960000

90430-06014-00

Unavailable

14

BOLT, STUD

95612-08615-00

Unavailable

15

PLUG, STRAIGHT SCREW

90340-12014-00

$7.49

16

GASKET (4V2)

90430-06166-00

Unavailable

17

BOLT, WITH WASHER

90119-09016-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06430-00

Unavailable

19

WASHER, PLATE

90201-06016-00

Unavailable

20

PLUG, SPARK (NGK LMAR9E-J)

LMA-R9EJ0-00-00

Unavailable

21

GASKET, CYLINDER HEAD 1

B3L-11181-00-00

Unavailable

22

COVER, CYLINDER HEAD 1

BX4-11191-01-00

Unavailable

23

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

24

GASKET, HEAD COVER

2CR-11193-00-00

Unavailable

25

GASKET, HEAD COVER

2CR-11194-00-00

Unavailable

26

PLATE

5VY-1482K-00-00

Unavailable

27

REED VALVE ASSY

5SL-14890-00-00

Unavailable

28

CAP, CASE

14B-14899-01-00

Unavailable

29

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

30

BOLT(4BP)

90109-066F0-00

Unavailable

31

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

32

PIN, DOWEL(3VD)

99530-10114-00

Unavailable
