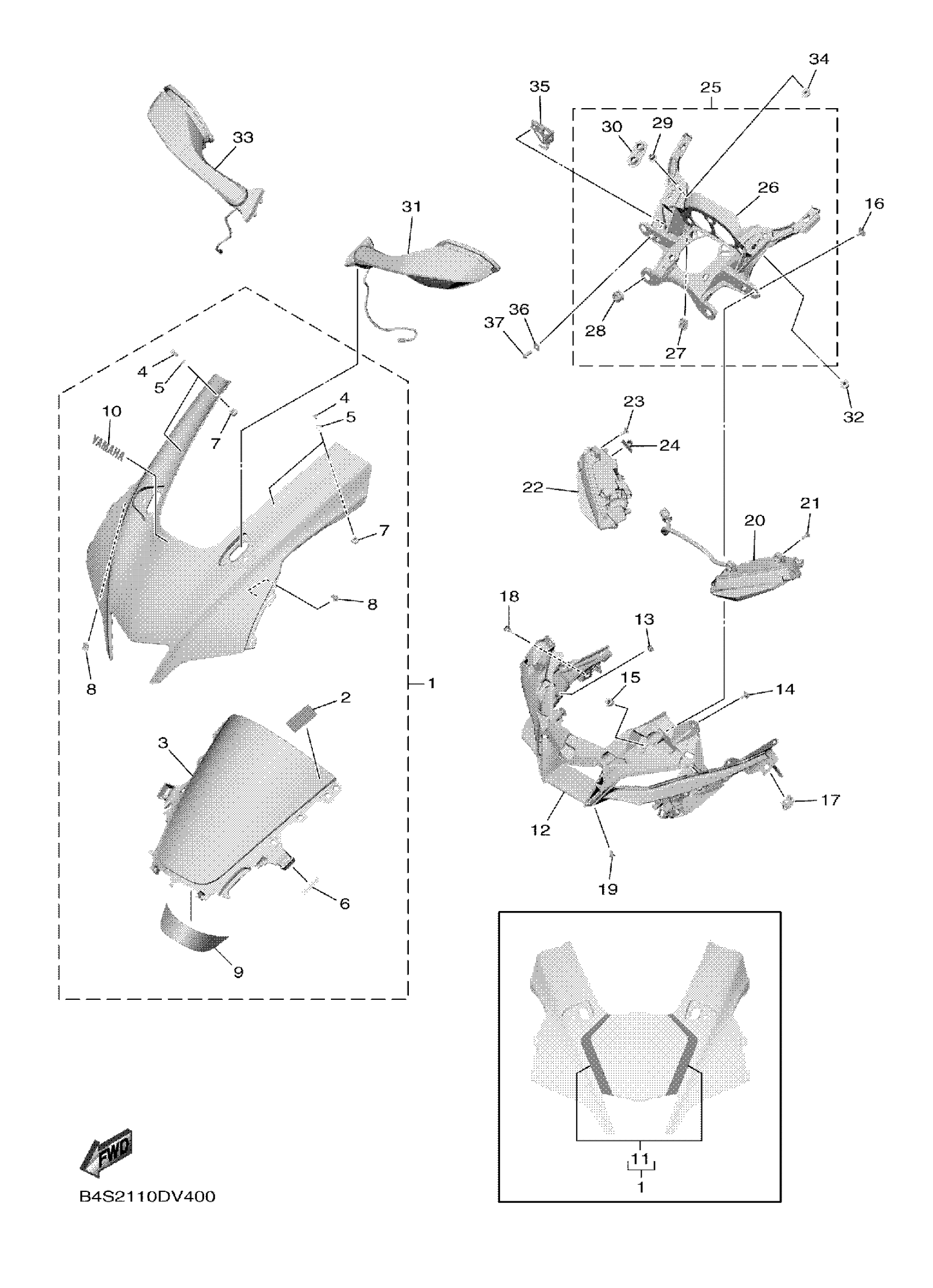

Yamaha YZFR1MMC (YZFR1M CA) B4SA 2021 COWLING 1 Diagram

#

Description
Price

1

BODY, FRONT UPPER 1

B4S-Y283G-10-0X

$4,405.99

2

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.99

3

WINDSHIELD

B3L-28381-10-00

$105.99

4

BOLT

2CR-28333-00-00

$4.47

5

. WASHER, PLATE

90202-05088-00

Unavailable

6

SEAL

3P6-28307-00-00

$2.34

7

NUT(1KT)

90179-05523-00

$8.49

8

NUT, SPRING

90183-050A6-00

$8.49

9

GRAPHIC, 18

B3L-2832P-00-00

$29.99

10

EMBLEM, YAMAHA

99247-00080-00

$15.99

11

GRAPHIC SET 1, COWLING

B4S-2834X-00-00

$47.99

12

BODY, FRONT UPPER 2

B3L-2835H-00-00

$64.99

13

NUT, SPRING(1YT)

90183-05042-00

$5.60

14

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

15

GROMMET

90480-10003-00

$8.49

16

SCREW, TAPPING

90164-05001-00

Unavailable

17

PLATE, SPRING

2CR-2177L-00-00

Unavailable

18

RIVET

90269-06008-00

Unavailable

19

RIVET

90269-06018-00

Unavailable

20

PILOT LIGHT ASSY 1

B3L-84301-00-00

Unavailable

21

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

22

PILOT LIGHT ASSY 2

B3L-84302-00-00

Unavailable

23

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

24

CLAMP

90464-09009-00

Unavailable

25

LEG SHIELD STAY SET

B4S-28320-00-00

Unavailable

26

STAY 1

2CR-28356-00-00

Unavailable

27

NUT, SPRING

90183-060A1-00

Unavailable

28

DAMPER

4XV-83513-00-00

Unavailable

29

COLLAR ,4

2CR-284AK-00-00

Unavailable

30

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

31

REAR VIEW MIRROR ASSY (LEFT)

B3L-26280-11-00

Unavailable

32

NUT, CROWN(1FN)

90176-06055-00

Unavailable

33

REAR VIEW MIRROR ASSY (RIGHT)

B3L-26290-11-00

Unavailable

34

NUT, CROWN(1FN)

90176-06055-00

Unavailable

35

BRKT. 7

B4S-28468-00-00

Unavailable

36

COLLAR

90387-06184-00

Unavailable

37

BOLT, BUTTON HEAD

92012-06014-00

Unavailable
