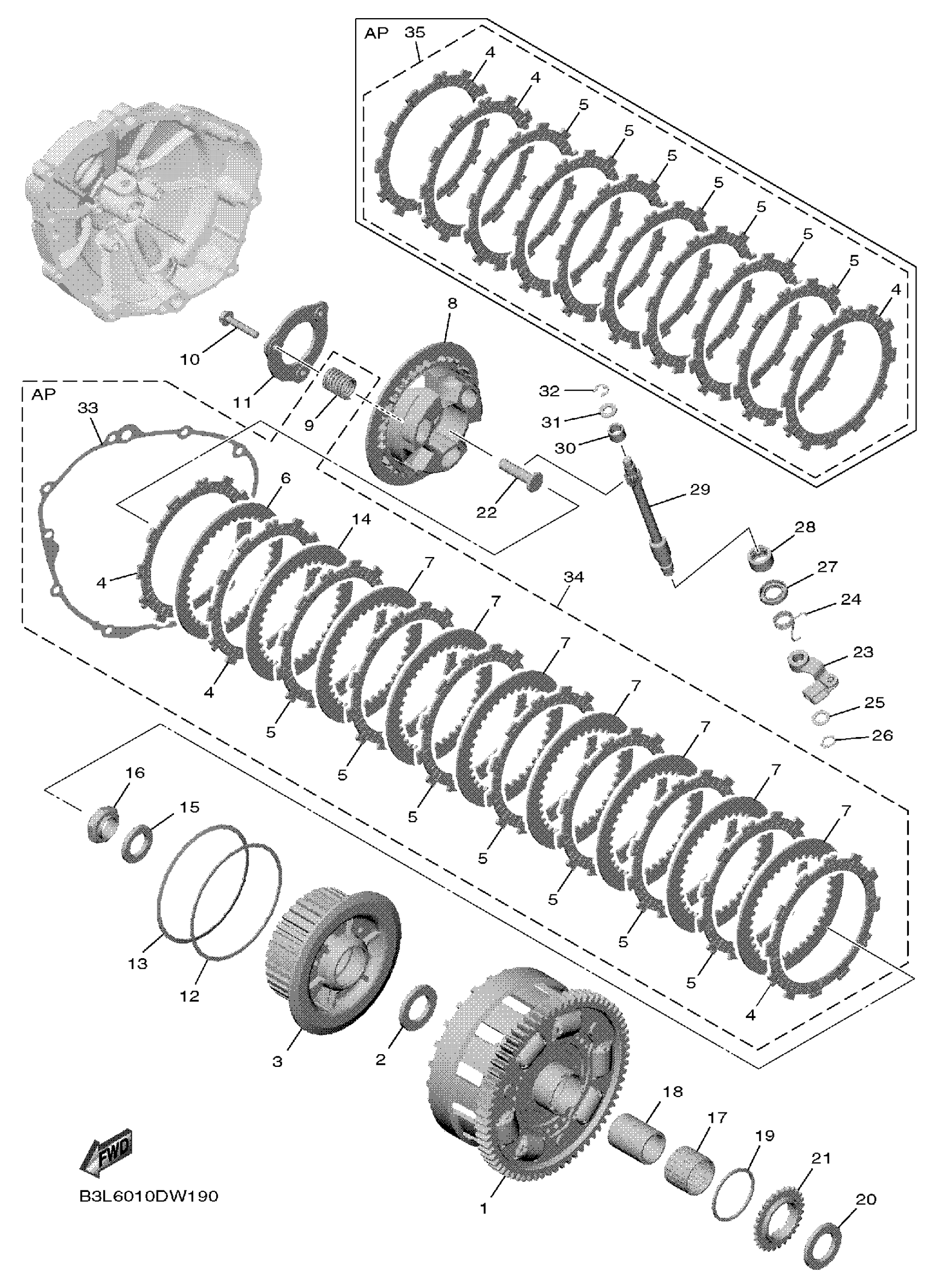

Yamaha YZFR1MMC (YZFR1M CA) B4SA 2021 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEA

2CR-16150-00-00

Unavailable

2

PLATE, THRUST

363-16154-00-00

$16.49

3

BOSS, CLUTCH

2CR-16371-00-00

$167.99

4

PLATE, FRICTION 2

2CR-16330-00-00

$30.99

5

PLATE, FRICTION

2CR-16321-00-00

$28.99

6

PLATE, CLUTCH 1

2CR-16324-00-00

$7.99

7

PLATE, CLUTCH 2

2CR-16325-00-00

$13.49

8

PRESSURE PLATE ASSY

BX4-16350-00-00

$142.99

9

SPRING, COMPRESSIO

2CR-16173-00-00

$13.49

10

SCREW, SPRING

2CR-16337-00-00

$4.37

11

PLATE, PRESSURE 2

2CR-16352-00-00

$8.99

12

PLATE, SEAT

2CR-16384-10-00

Unavailable

13

SPRING.,CUSHION

2CR-16383-00-00

$25.99

14

PLATE, CLUTCH 2

2CR-16325-00-00

$13.49

14

PLATE, CLUTCH 2

2CR-16325-10-00

$7.99

14

PLATE, CLUTCH 2

2CR-16325-20-00

Unavailable

15

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

16

NUT

90179-20022-00

Unavailable

17

BEARING

93310-23168-00

Unavailable

18

SPACER 1

14B-16181-00-00

Unavailable

19

WASHER, PLATE

90201-44008-00

Unavailable

20

PLATE, THRUST 1

2CR-16154-00-00

Unavailable

21

SPROKET, DRIVE

14B-13354-01-00

Unavailable

22

ROD, PUSH 1

1WS-16356-00-00

Unavailable

23

PUSH LEVER ASSY

2CR-16340-00-00

Unavailable

24

SPRING, TORSION

90508-16041-00

Unavailable

25

WASHER, PLATE

90201-10029-00

Unavailable

26

CIRCLIP(10W)

99009-10400-00

Unavailable

27

OIL SEAL (3X3)

93102-15212-00

Unavailable

28

BEARING

93315-21570-00

Unavailable

29

AXLE, PUSH LEVER

5VY-16382-10-00

Unavailable

30

BEARING

93317-11096-00

Unavailable

31

WASHER(6TA)

92907-08600-00

Unavailable

32

CIRCLIP

99080-07600-00

Unavailable

33

GASKET, CRANKCASE

2CR-15461-00-00

Unavailable

34

CLUTCH PLATE KIT

B3L-W001G-00-00

Unavailable

35

FRICTION PLATE KIT

B67-W001M-00-00

Unavailable
