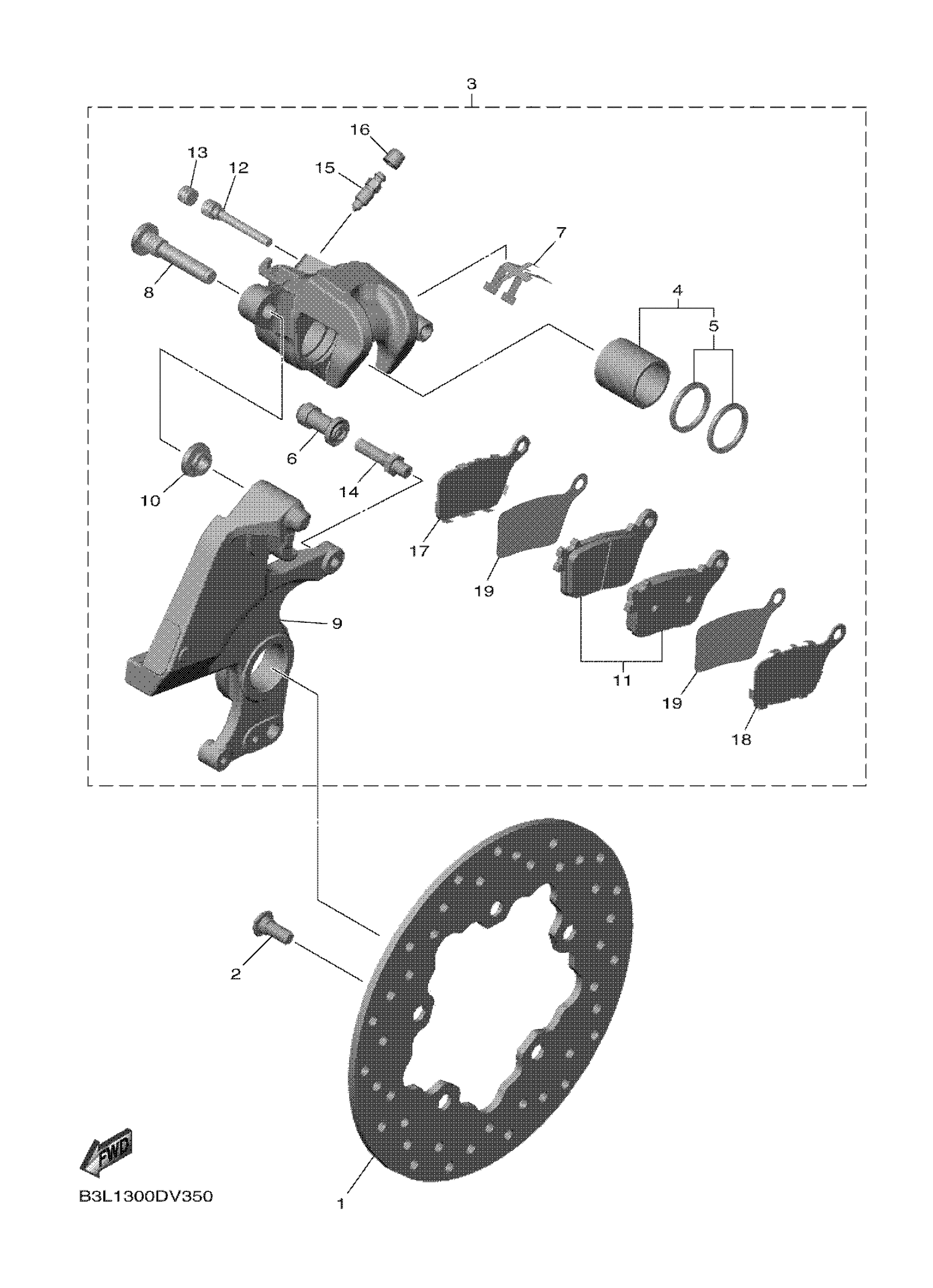

Yamaha YZFR1MLC (YZFR1M CA) B4S3 2020 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

2CR-2582W-00-00

$92.99

2

SCREW

90149-08010-00

$8.49

3

CALIPER ASSY, REAR

2CR-2580W-00-00

Unavailable

4

PISTON ASSY, CALIP

2CR-25802-00-00

Unavailable

5

CALIPER SEAL KIT

3JD-25803-50-00

$16.49

6

BOOT 2

1UY-25937-51-00

$14.49

7

SUPPORT, PAD

2CR-25919-50-00

$5.49

8

PIN, SLIDE

5DH-25914-50-00

$22.99

9

BRACKET, SUPPORT

2CR-25921-50-00

$82.99

10

BOOT, CALIPER

3JD-25917-00-00

$8.99

11

BRAKE PAD KIT 2

2CR-25806-00-00

$53.99

12

PIN, PAD

2CR-25924-00-00

$9.99

13

PLUG

5DH-25916-50-00

$3.28

14

BOLT

3SP-25914-51-00

$4.58

15

SCREW, BLEED

8CR-25824-00-00

Unavailable

16

CAP

2CR-25825-00-00

Unavailable

17

SHIM, CALIPER

2CR-25827-00-00

Unavailable

18

SHIM, CALIPER

2CR-25827-10-00

Unavailable

19

SHIM, CALIPER

2CR-25828-00-00

Unavailable
