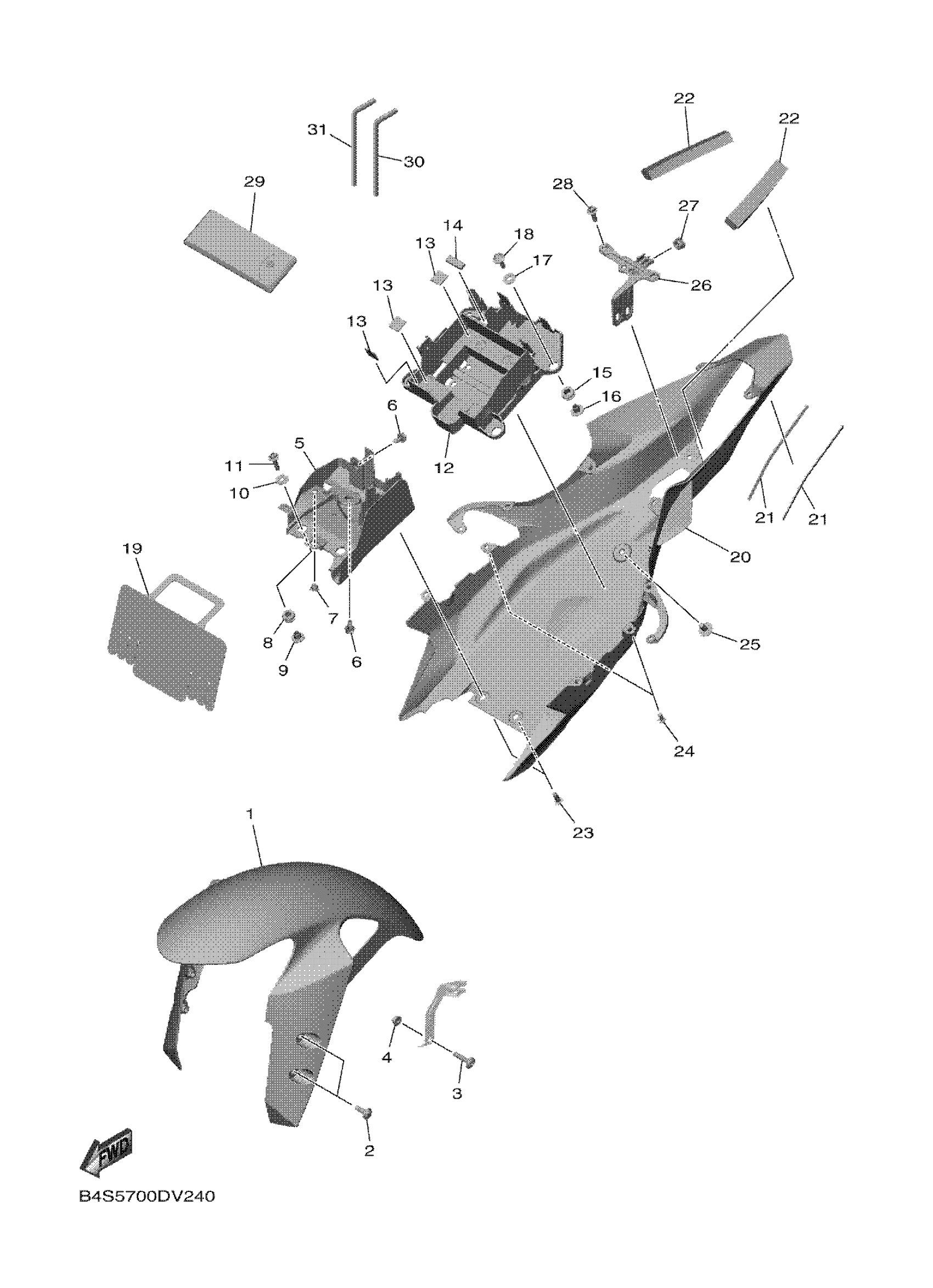

Yamaha YZFR1MLC (YZFR1M CA) B4S3 2020 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

2KS-21510-00-00

Unavailable

2

BOLT

90111-06043-00

$4.46

3

BOLT

90111-06041-00

$8.49

4

NUT, FLANGE(4MV)

95707-06500-00

$1.23

5

BOX, BATTERY 1

B3L-8212B-00-00

$29.99

6

BOLT, FLANGE

95817-06012-00

$1.43

7

PLUG 288833190000

90338-07043-00

$8.49

8

GROMMET (462)

90480-13018-00

$8.49

9

COLLAR(8Y7)

90387-073M2-00

$8.49

10

WASHER, PLATE

90201-06088-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

12

BOX, BATTERY 2

2CR-8212C-00-00

$24.99

13

DAMPER

13S-21649-00-00

Unavailable

14

DAMPER

5HN-2139X-00-00

$2.13

15

GROMMET (462)

90480-13018-00

$8.49

16

COLLAR(8Y7)

90387-073M2-00

$8.49

17

WASHER, PLATE

90201-06088-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

19

PROTECTOR

B3L-21652-00-00

Unavailable

20

FENDER, REAR

2CR-21611-01-00

Unavailable

21

DAMPER, PLATE 1

3C5-2414H-00-00

Unavailable

22

DAMPER, PLATE

90520-20003-00

Unavailable

23

RIVET

90269-06008-00

Unavailable

24

RIVET

90269-05005-00

Unavailable

25

RIVET(4JH)

90269-07076-00

Unavailable

26

BRACKET, TAILLIGHT

2CR-2117E-01-00

Unavailable

27

GROMMET

90480-10003-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

29

TOOL KIT

2CR-28100-01-00

Unavailable

30

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

31

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable
