2017 Yamaha YZFR1M CA (YZFR1MHC) Steering Diagram

← All diagrams

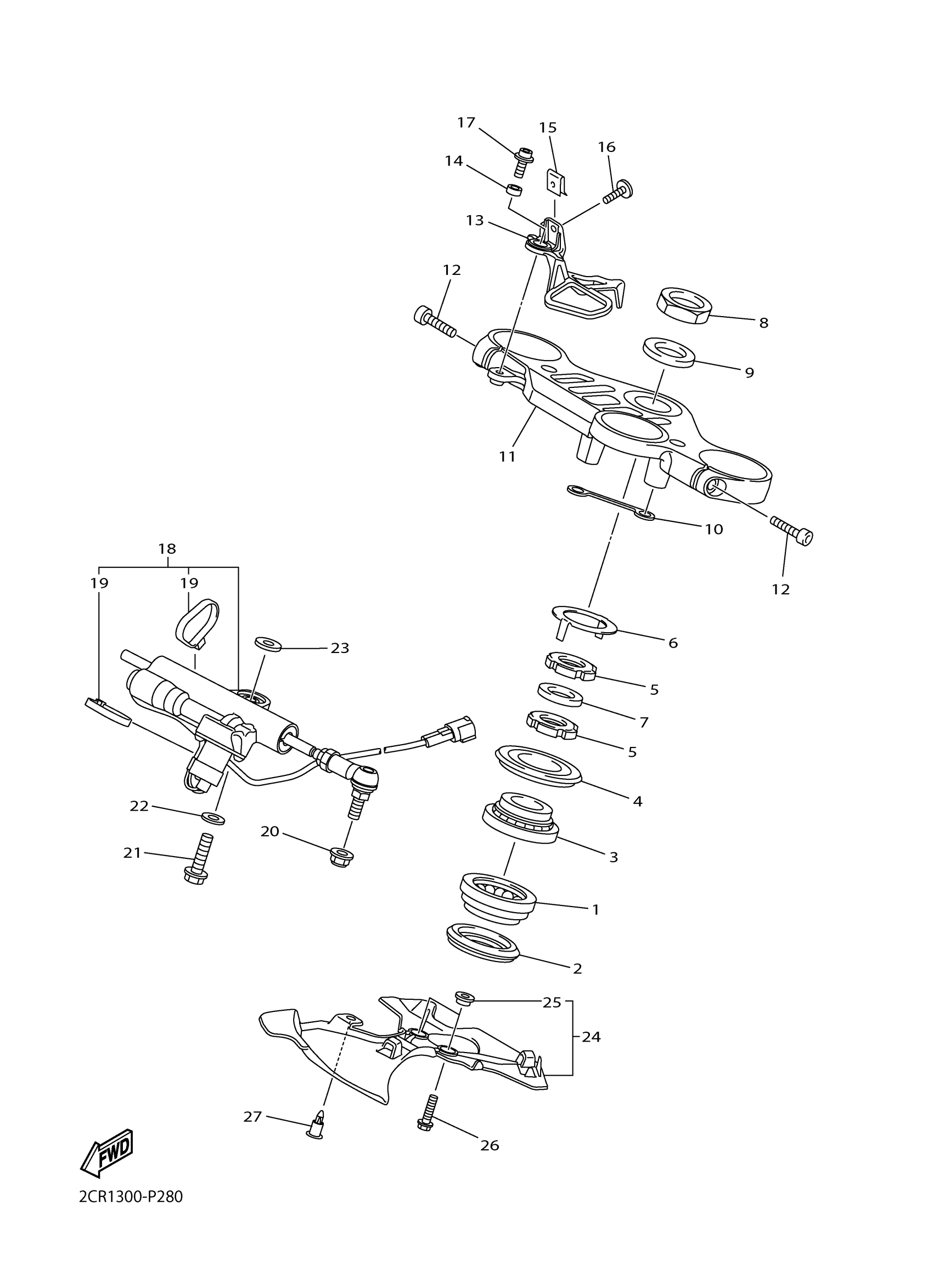

Find the part on the Steering diagram for your 2017 Yamaha YZFR1M CA (YZFR1MHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha YZFR1M CA (YZFR1MHC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING

93399-99957-00

1
Out of stock

2

SEAL, STEERING

3FV-23462-00-00

1
Out of stock

3

BEARING(3FV)

93399-99932-00

1
Out of stock

4

COVER, BALL RACE 1

4XV-23415-01-00

1
Out of stock

5

NUT

90179-30691-00

1
Out of stock

6

WASHER, SPECIAL

4XV-23418-00-00

1
Out of stock

7

WASHER, PLATE

90202-30235-00

1
Out of stock

8

NUT

90170-28419-00

1
Out of stock

9

WASHER, PLATE

90201-281U8-00

1
Out of stock

10

GUIDE, CABLE

2CR-23389-00-00

—
Out of stock

11

CROWN, HANDLE

2CR-23435-01-00

1
Out of stock

12

BOLT,SOCKET

91314-08030-00

1
Out of stock

13

STAY

2CR-26292-00-00

1
Out of stock

14

COLLAR

90387-06106-00

1
Out of stock

15

NUT, SPRING

90183-050A6-00

1
Out of stock

16

BOLT,HEX. SOCKET BUTTON

90111-05026-00

—
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

90110-06122-00

—
Out of stock

18

HANDLEBAR SHIMMY D

2CR-23490-00-00

—
Out of stock

19

BAND

1UA-82591-00-00

—
Out of stock

20

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

21

BOLT, FLANGE

95812-08030-00

—
Out of stock

22

WASHER (1T1)

90201-08649-00

—
Out of stock

23

WASHER

5VY-26398-00-00

—
Out of stock

24

COVER, STEERING

2CR-23818-00-00

—
Out of stock

25

SPACER (25G)

90560-06244-00

—
Out of stock

26

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

—
Out of stock

27

RIVET

90269-06008-00

—
Out of stock
