2017 Yamaha YZFR1M CA (YZFR1MHC) Front Fork Diagram

← All diagrams

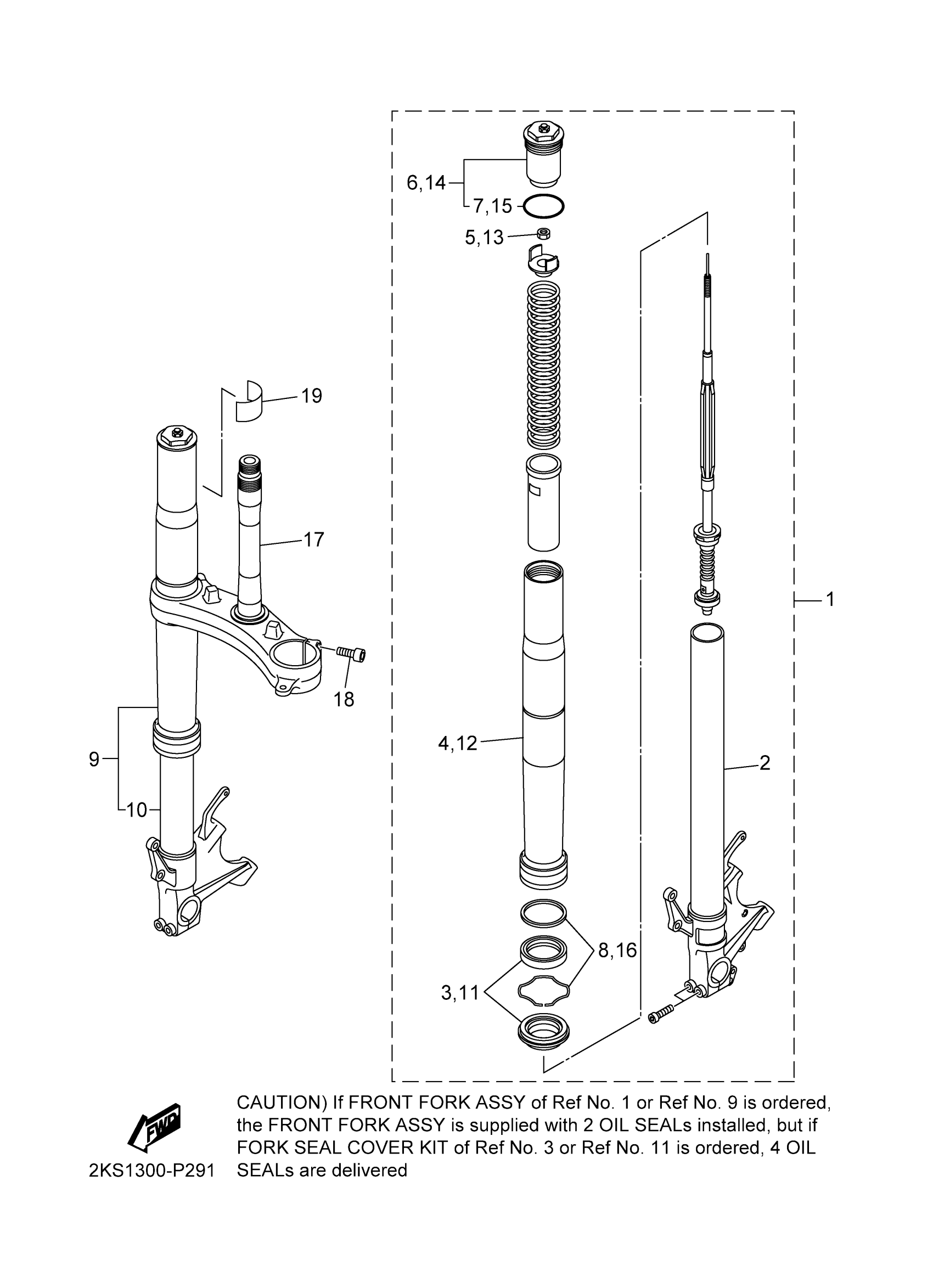

Find the part on the Front Fork diagram for your 2017 Yamaha YZFR1M CA (YZFR1MHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha YZFR1M CA (YZFR1MHC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

2KS-23102-00-00

—
Out of stock

2

INNER TUBE COMP.1

2KS-23110-00-00

—
Out of stock

3

FORK SEAL COVER KIT

2KS-231E0-00-00

1
Out of stock

4

OUTER TUBE COMP.

2KS-23106-00-00

—
Out of stock

5

NUT, HEXAGON 1371637700

90170-12060-00

1
Out of stock

6

BOLT, CAP

2KS-23111-00-00

—
Out of stock

7

O-RING

93210-41N50-00

1
Out of stock

8

. FORK WASHER CIRCLIP KIT

2KS-231M0-00-00

1
Out of stock

9

FRONT FORK ASSY (R.H)

2KS-23103-00-00

—
Out of stock

10

INNER TUBE COMP.2

2KS-23120-00-00

—
Out of stock

11

FORK SEAL COVER KIT

2KS-231E0-00-00

1
Out of stock

12

OUTER TUBE COMP.

2KS-23106-00-00

—
Out of stock

13

NUT, HEXAGON 1371637700

90170-12060-00

1
Out of stock

14

BOLT, CAP

2KS-23111-00-00

—
Out of stock

15

O-RING

93210-41N50-00

1
Out of stock

16

. FORK WASHER CIRCLIP KIT

2KS-231M0-00-00

1
Out of stock

17

UNDER BRACKET COMP

2CR-23340-00-00

—
Out of stock

18

BOLT,SOCKET

91314-08030-00

—
Out of stock

19

PROTECTOR

5PW-23472-00-00

—
Out of stock
