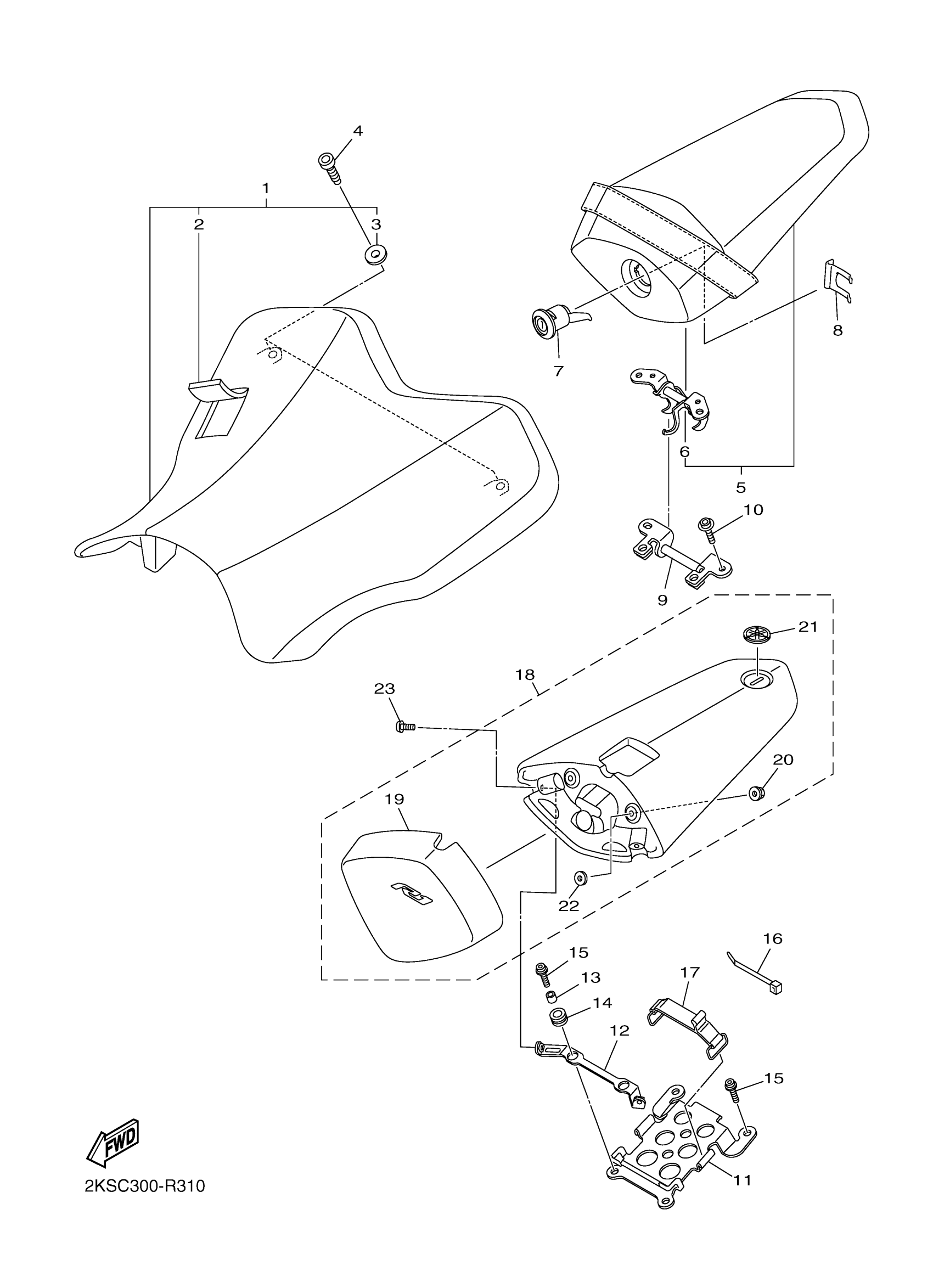

Yamaha YZFR1MHC (YZFR1M CA) 2KSH 2017 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

2CR-24710-01-00

$109.99

2

COVER, SINGLE SEAT

2CR-24711-00-00

$64.99

3

COLLAR

90387-06066-00

$8.49

4

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$9.49

5

TANDEM SEAT ASSY

2CR-24750-01-00

$128.99

6

SEAT LOCK COMP.

2CR-2478R-00-00

$36.99

7

ROTOR SET

2CR-W2470-00-00

$68.99

8

SPRING, LOCK 2

5VY-2176V-00-00

$11.99

9

BRACKET, SEAT LOCK

2CR-2478X-00-00

$19.99

10

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

11

BRACKET, TAIL COVE

2KS-2475U-00-00

$24.99

12

BRACKET, TAIL COVE

2KS-2475V-00-00

$20.99

13

COLLAR 8121444900

90387-06023-00

$9.49

14

GROMMET (2T4)

90480-12237-00

$2.55

15

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

16

BAND

1UA-82591-00-00

Unavailable

17

BAND

55K-2811G-00-00

Unavailable

18

SEAT COVER ASSY

2KS-2477A-00-00

Unavailable

19

CUSHION

2KS-24753-00-00

Unavailable

20

NUT, U FLANGE

95604-06200-00

Unavailable

21

TUNING FORK MARK

8GC-2836B-02-00

Unavailable

22

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

23

SCREW(2VK)

90149-06250-00

Unavailable
