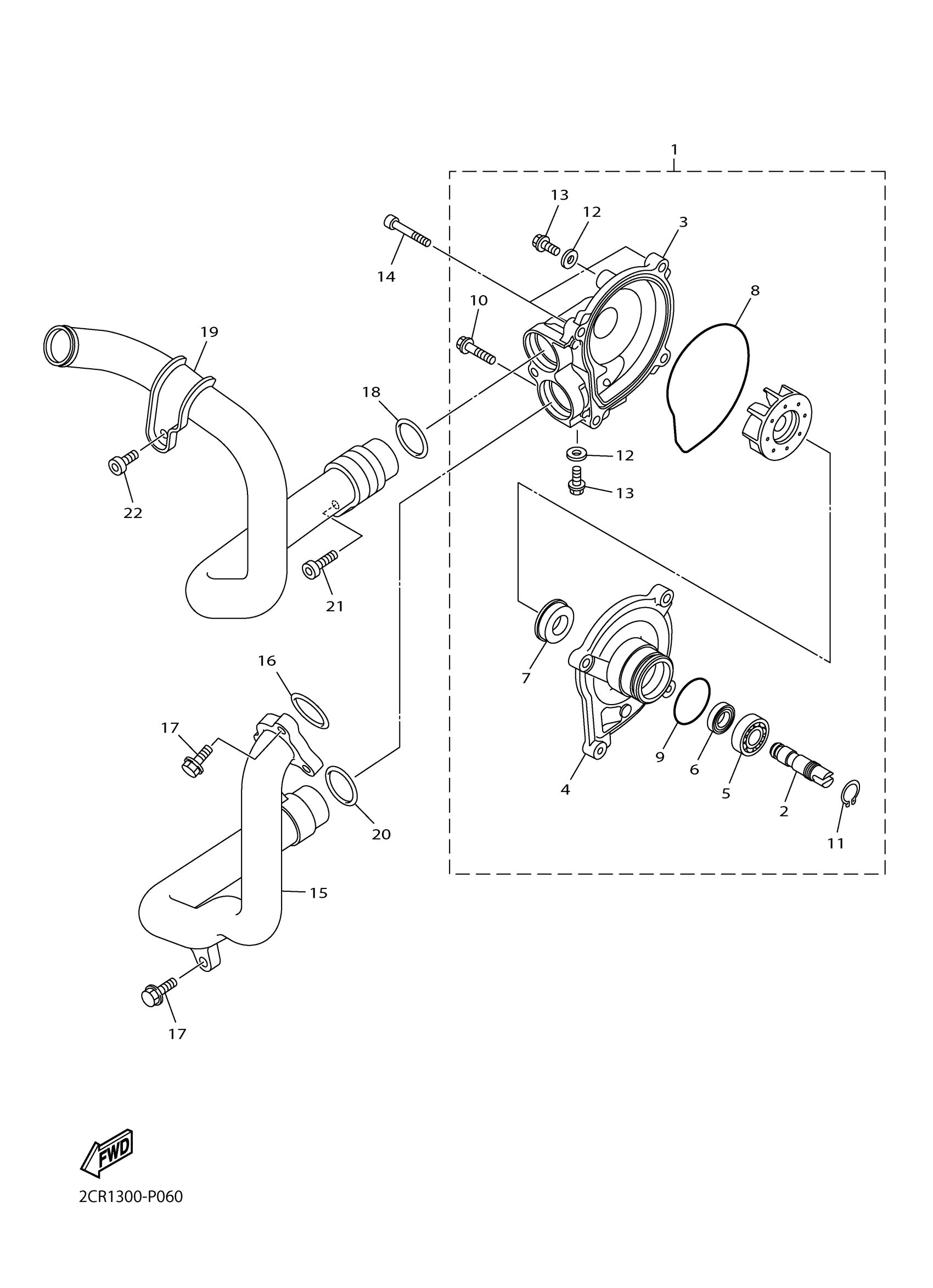

Yamaha YZFR1MGC (YZFR1M CA) 2KS9 2016 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

2CR-12420-02-00

$267.99

2

IMPELLER SHAFT ASS

2CR-12450-01-00

Unavailable

3

COVER, HOUSING

2CR-12422-01-00

Unavailable

4

HOUSING, WATER PUMP

2CR-12421-02-00

Unavailable

5

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

6

SEAL

2CR-13338-00-00

$9.99

7

SEAL, MECHANICAL

5VK-12438-00-00

Unavailable

8

O-RING

4XV-12439-00-00

$15.49

9

O-RING (626)

93210-33133-00

$2.92

10

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

11

CIRCLIP(10Y)

99009-12400-00

$3.59

12

GASKET (4V2)

90430-06166-00

$3.76

13

BOLT, FLANGE

95824-06010-00

$8.49

14

BOLT, SOCKET

91314-06035-00

$8.49

15

PIPE 1

2CR-12481-00-00

$101.99

16

O-RING(1KT)

93210-27778-00

Unavailable

17

BOLT, FLANGE

90105-06127-00

Unavailable

18

O-RING

93210-26006-00

Unavailable

19

PIPE 4

2CR-12484-00-00

Unavailable

20

O-RING

93210-26006-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

22

BOLT (33M)

91312-06014-00

Unavailable
