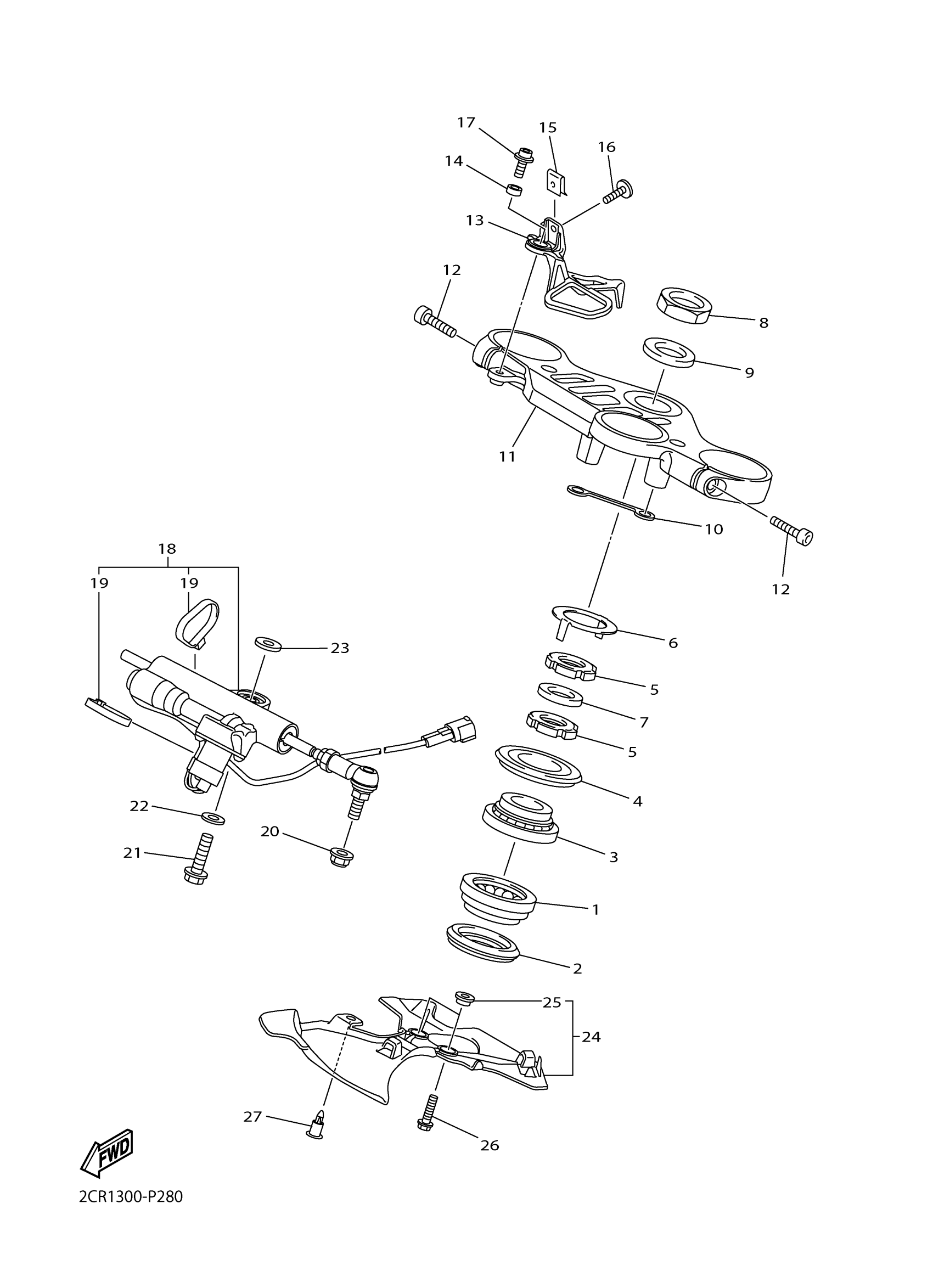

Yamaha YZFR1MGC (YZFR1M CA) 2KS9 2016 STEERING Diagram

#

Description
Price

1

BEARING

93399-99957-00

$70.99

2

SEAL, STEERING

3FV-23462-00-00

$24.99

3

BEARING(3FV)

93399-99932-00

$63.99

4

COVER, BALL RACE 1

4XV-23415-01-00

$24.99

5

NUT

90179-30691-00

$33.99

6

WASHER, SPECIAL

4XV-23418-00-00

$17.49

7

WASHER, PLATE

90202-30235-00

$8.49

8

NUT

90170-28419-00

$40.99

9

WASHER, PLATE

90201-281U8-00

$11.49

10

GUIDE, CABLE

2CR-23389-00-00

Unavailable

11

CROWN, HANDLE

2CR-23435-01-00

$170.99

12

BOLT,SOCKET

91314-08030-00

$2.34

13

STAY

2CR-26292-00-00

$11.99

14

COLLAR

90387-06106-00

$7.49

15

NUT, SPRING

90183-050A6-00

$8.49

16

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06122-00

Unavailable

18

HANDLEBAR SHIMMY D

2CR-23490-00-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

NUT, SELF-LOCKING

95602-08200-00

Unavailable

21

BOLT, FLANGE

95812-08030-00

Unavailable

22

WASHER (1T1)

90201-08649-00

Unavailable

23

WASHER

5VY-26398-00-00

Unavailable

24

COVER, STEERING

2CR-23818-00-00

Unavailable

25

SPACER (25G)

90560-06244-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

27

RIVET

90269-06008-00

Unavailable
