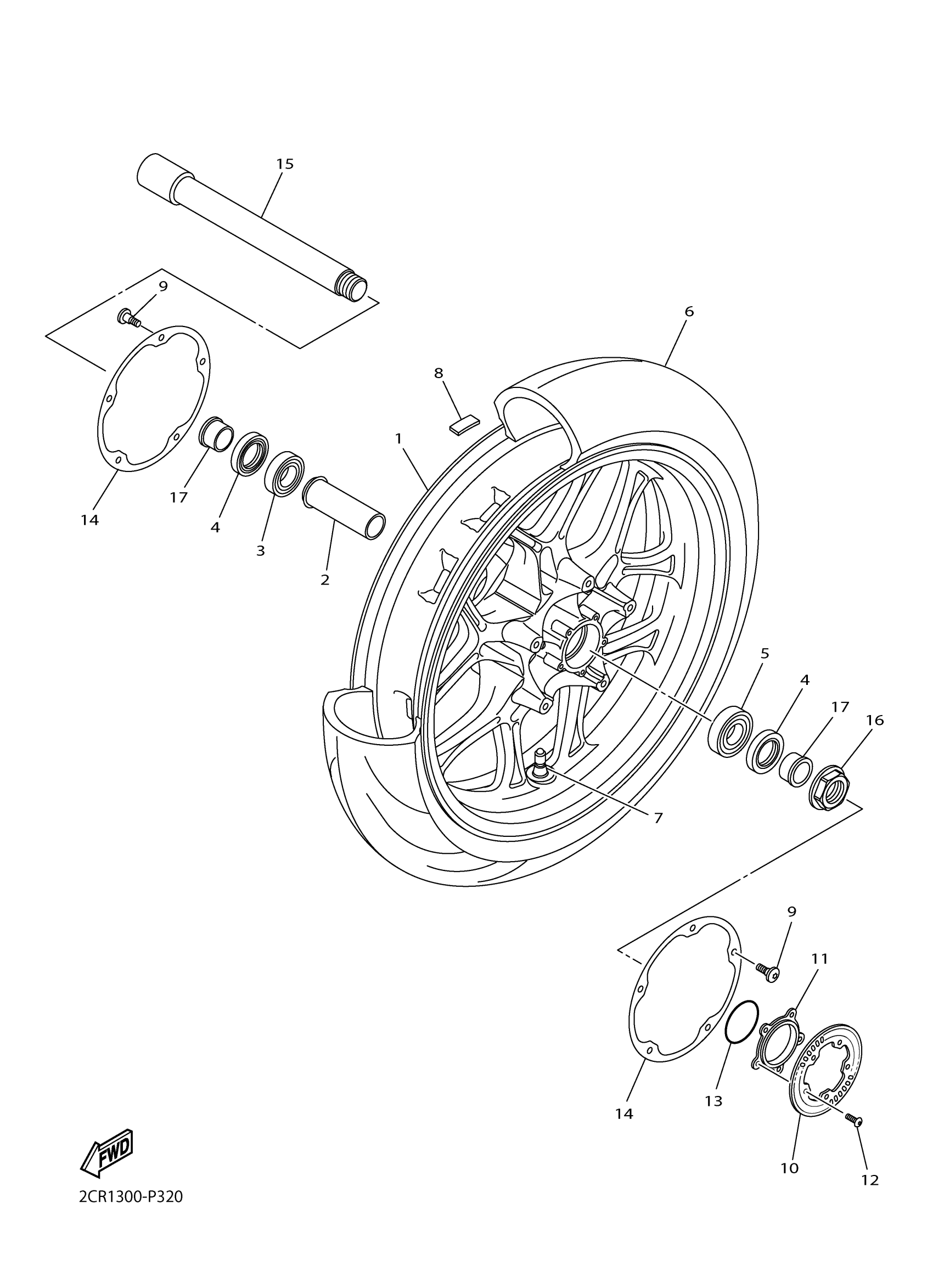

Yamaha YZFR1MGC (YZFR1M CA) 2KS9 2016 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

2CR-25168-00-P0

$1,933.99

2

SPACER ASSY

2CR-2510B-00-00

$29.63

3

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$34.68

4

OIL SEAL

93106-31001-00

$5.50

5

BEARING

93306-20509-00

$27.03

6

TIRE (120/70 ZR17M/C 58W)

94112-17132-00

$262.92

7

VALVE, RIM(2GH)

93900-00030-00

$13.50

8

BALANCER, WHEEL

2CR-25398-00-00

$4.38

9

SCREW

2CR-2589H-09-00

$10.24

10

ROTOR, SENSOR

1SD-2517G-00-00

Unavailable

11

RING, WHEEL 1

2CR-2514A-00-00

$47.41

12

SCREW

90149-05038-00

$1.40

13

O-RING (4G0)

93210-47440-00

$6.22

14

PLATE 1

2CR-2539F-00-00

$19.26

15

AXLE, WHEEL

2CR-25181-00-00

$71.87

16

NUT

90179-24004-00

Unavailable

17

COLLAR

90387-25032-00

Unavailable
