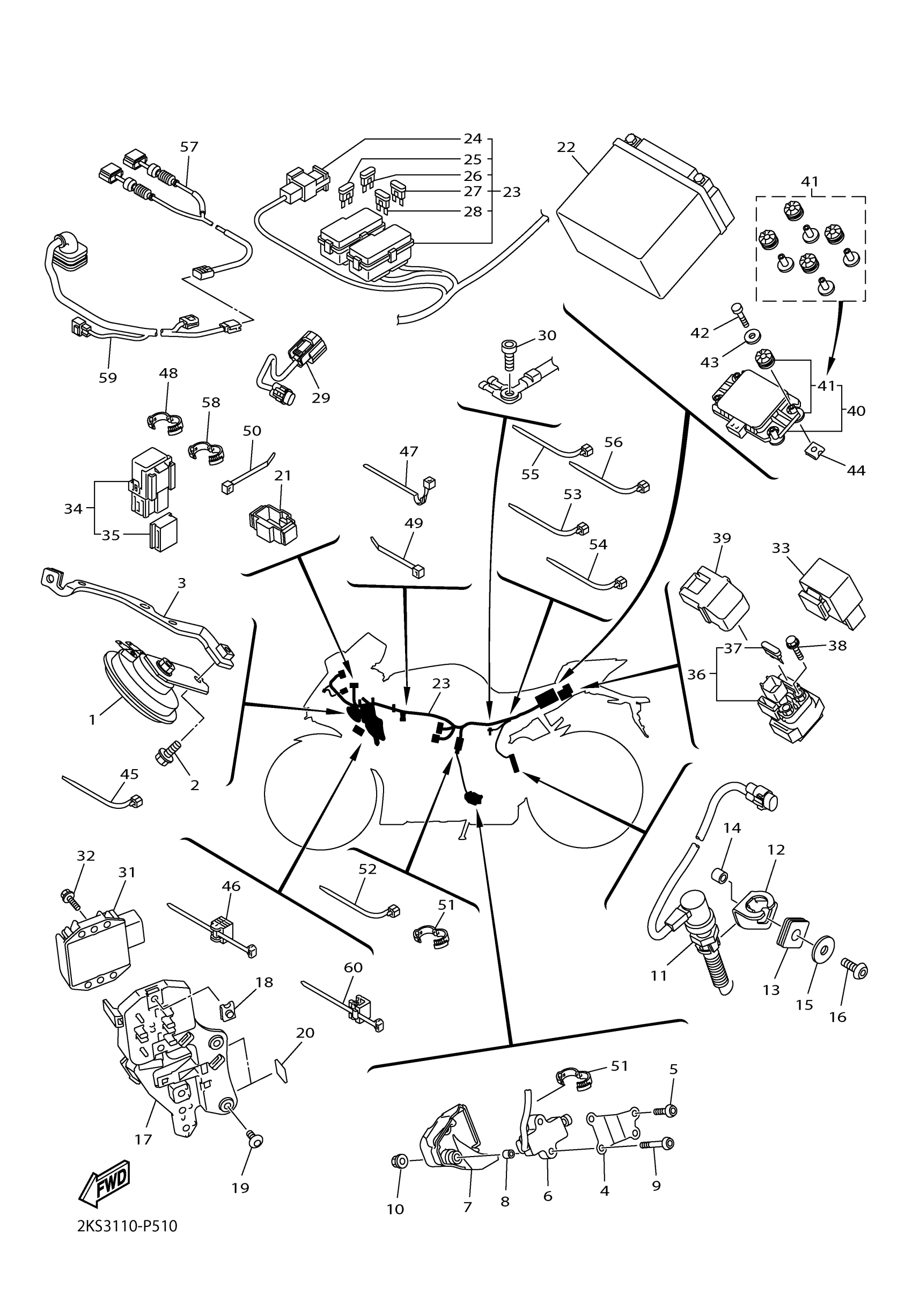

Yamaha YZFR1MGC (YZFR1M CA) 2KS9 2016 ELECTRICAL 2 Diagram

#

Description
Price

1

HORN

2CR-83371-00-00

Unavailable

2

BOLT, FLANGE

95817-06012-00

$1.43

3

BRACKET, HORN

2CR-23377-00-00

Unavailable

4

BRACKET, SENSOR 1

14B-27961-00-00

Unavailable

5

BOLT, BUTTON HEAD

92012-05016-00

$8.49

6

SWITCH, SIDE STAND

2CR-82566-00-00

$81.99

7

COVER ASSY

2CR-27406-00-00

Unavailable

8

COLLAR

90387-05025-00

$7.49

9

BOLT, BUTTON HEAD

92012-05030-00

$7.49

10

NUT, S/L FLANGE

95607-05200-00

$9.49

11

STOP SWITCH ASSY

2CR-82530-02-00

Unavailable

12

STAY, STOP SWITCH

2CR-2144G-00-00

$5.49

13

GROMMET(4SV)

90480-12607-00

$9.49

14

COLLAR 8121444900

90387-06023-00

$9.49

15

WASHER, PLATE

90201-06380-00

$0.60

16

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

17

BRACKET 5

2CR-2836H-00-00

Unavailable

18

NUT, SPRING(4ES)

90183-06069-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-06095-00

Unavailable

20

DAMPER

13S-21649-00-00

Unavailable

21

CLAMP

1RC-82544-00-00

Unavailable

22

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

Unavailable

23

WIRE HARNESS ASSY

2KS-82590-10-00

Unavailable

24

FUSE (50A)

5JW-82151-10-00

Unavailable

25

FUSE (2A-BL)

5JJ-82151-80-00

Unavailable

26

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

27

FUSE (15A)

67F-82151-50-00

Unavailable

28

. FUSE (10A)

67F-82151-40-00

Unavailable

29

WIRE, SUB LEAD

2CR-82509-00-00

Unavailable

30

BOLT,SOCKET

91317-06012-00

Unavailable

31

RECTIFIER & REGULATOR ASSY

2CR-81960-01-00

Unavailable

32

BOLT, FLANGE

90105-06148-00

Unavailable

33

RELAY ASSY

5VK-81950-33-00

Unavailable

34

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

35

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

36

STARTER RELAY ASSY

2CR-81940-00-00

Unavailable

37

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

38

BOLT, FLANGE

95022-06008-00

Unavailable

39

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

40

INERTIAL MEASURE, UNIT ASSY

2CR-8593A-00-00

Unavailable

41

GROMMET AND COLLAR

2CR-W8A8D-01-00

Unavailable

42

BOLT

91312-04025-00

Unavailable

43

WASHER, PLAIN

2CR-81162-00-00

Unavailable

44

NUT, SPRING(47R)

90183-04039-00

Unavailable

45

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

46

CLAMP

90464-45003-00

Unavailable

47

CLAMP(6U0)

90464-07M40-00

Unavailable

48

CLAMP

90464-16003-00

Unavailable

49

BAND

1UA-82591-00-00

Unavailable

50

BAND

1UA-82591-00-00

Unavailable

51

CLAMP

90464-13227-00

Unavailable

52

CLAMP(4FM)

90464-15195-00

Unavailable

53

CLAMP

90464-13077-00

Unavailable

54

CLAMP

90464-13077-00

Unavailable

55

CLAMP

90464-13077-00

Unavailable

56

CLAMP

90464-13077-00

Unavailable

57

WIRE, SUB LEAD

2KS-82509-00-00

Unavailable

58

CLAMP

90464-16003-00

Unavailable

59

WIRE, SUB LEAD

2KS-82509-10-00

Unavailable

60

CLAMP

90464-45006-00

Unavailable
