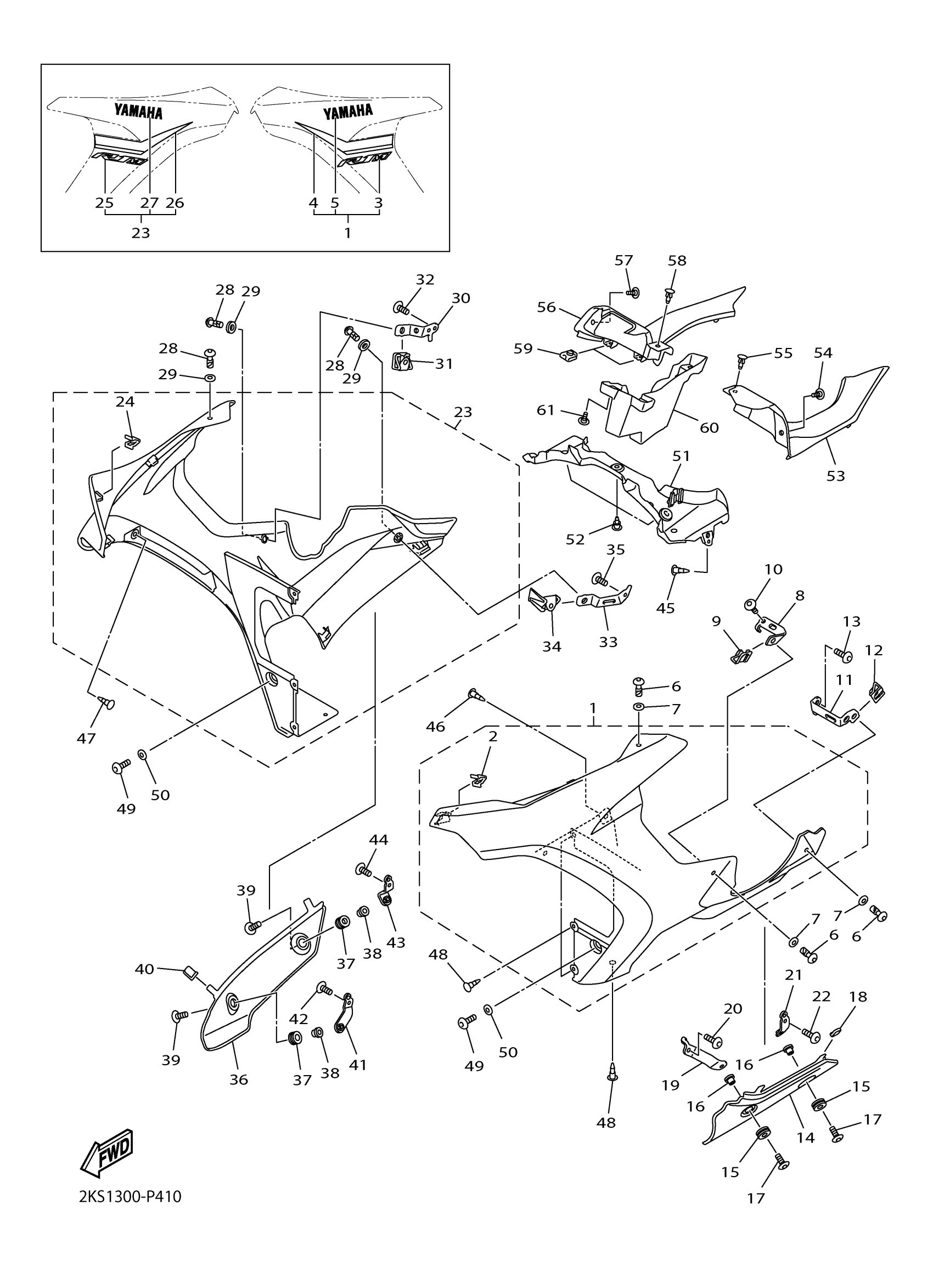

Yamaha YZFR1MGC (YZFR1M CA) 2KS9 2016 COWLING 2 Diagram

#

Description
Price

1

PANEL ASSEMBLY 1

2KS-Y283U-10-0X

Unavailable

2

CLIP

90468-040A0-00

$8.49

3

EMBLEM

2KS-28328-01-00

$14.49

4

GRAPHIC 1

2KS-28391-00-00

$45.99

5

EMBLEM, YAMAHA

99246-00120-00

$9.49

6

HEAD

2CR-28386-00-00

$14.49

7

WASHER, SPECIAL 1

8HG-21757-00-00

$1.07

8

BRACKET 13

2CR-2833K-00-00

$11.99

9

PLATE, SPRING

2CR-2177L-00-00

$6.99

10

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

11

BRACKET 14

2CR-2833L-00-00

$10.99

12

PLATE, SPRING

2CR-2177L-00-00

$6.99

13

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

14

PROTECTOR 1

2CR-2834V-00-00

Unavailable

15

GROMMET(2JG)

90480-14477-00

$3.71

16

COLLAR

90387-06307-00

Unavailable

17

BOLT

90111-06038-00

Unavailable

18

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

19

BRKT., 17

2CR-2833R-00-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

21

BRKT.,18

2CR-2833T-00-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

23

PANEL ASSEMBLY 2

2KS-Y283V-10-0X

Unavailable

24

CLIP

90468-040A0-00

$8.49

25

EMBLEM

2KS-28328-01-00

$14.49

26

GRAPHIC 2

2KS-28392-00-00

Unavailable

27

EMBLEM, YAMAHA

99246-00120-00

$9.49

28

HEAD

2CR-28386-00-00

$14.49

29

WASHER, SPECIAL 1

8HG-21757-00-00

$1.07

30

BRACKET 15

2CR-2833M-00-00

Unavailable

31

PLATE, SPRING

2CR-2177L-00-00

$6.99

32

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

33

BRACKET 16

2CR-2833N-00-00

Unavailable

34

PLATE, SPRING

2CR-2177L-00-00

$6.99

35

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

36

PROTECTOR 2

2CR-2834W-00-00

Unavailable

37

GROMMET(2JG)

90480-14477-00

$3.71

38

COLLAR

90387-06307-00

Unavailable

39

BOLT

90111-06038-00

Unavailable

40

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

41

BRKT.,19

2CR-2833U-00-00

Unavailable

42

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

43

BRKT.,20

2CR-2833V-00-00

Unavailable

44

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

45

RIVET(4PH)

90269-07077-00

Unavailable

46

RIVET

90269-06008-00

Unavailable

47

RIVET(4PH)

90269-07077-00

Unavailable

48

RIVET

90269-06008-00

Unavailable

49

SCREW(4DN)

90149-06302-00

Unavailable

50

COLLAR

90387-06312-00

Unavailable

51

STAY, HEADLIGHT

2CR-23174-00-00

Unavailable

52

RIVET

90269-06008-00

Unavailable

53

PANEL, CONSOLE 1

2CR-2837L-00-00

Unavailable

54

BOLT

90111-05011-00

Unavailable

55

RIVET

90269-06008-00

Unavailable

56

PANEL, CONSOLE 2

2KS-2837M-00-00

Unavailable

57

BOLT

90111-05011-00

Unavailable

58

RIVET

90269-06008-00

Unavailable

59

NUT, SPRING

90183-050A6-00

Unavailable

60

BOX 1

2CR-2838K-00-00

Unavailable

61

BOLT

90111-05011-00

Unavailable
