Description

Price

1

CAST WHEEL, FRONT

2CR-25168-00-P0

$1,789.99

2

SPACER ASSY

2CR-2510B-00-00

$36.99

3

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$42.99

4

OIL SEAL

93106-31001-00

$7.49

5

BEARING

93306-20509-00

Unavailable

6

TIRE (120/70 ZR17M/C 58W)

94112-17132-00

Unavailable

7

VALVE, RIM(2GH)

93900-00030-00

$16.99

8

BALANCER, WHEEL

2CR-25398-00-00

$5.49

9

SCREW

2CR-2589H-09-00

$14.49

10

ROTOR, SENSOR

1SD-2517G-00-00

Unavailable

11

RING, WHEEL 1

2CR-2514A-00-00

$58.99

12

SCREW

90149-05038-00

$2.17

13

O-RING (4G0)

93210-47440-00

$8.49

14

PLATE 1

2CR-2539F-00-00

$23.99

15

AXLE, WHEEL

2CR-25181-00-00

$88.99

16

NUT

90179-24004-00

Unavailable

17

COLLAR

90387-25032-00

Unavailable

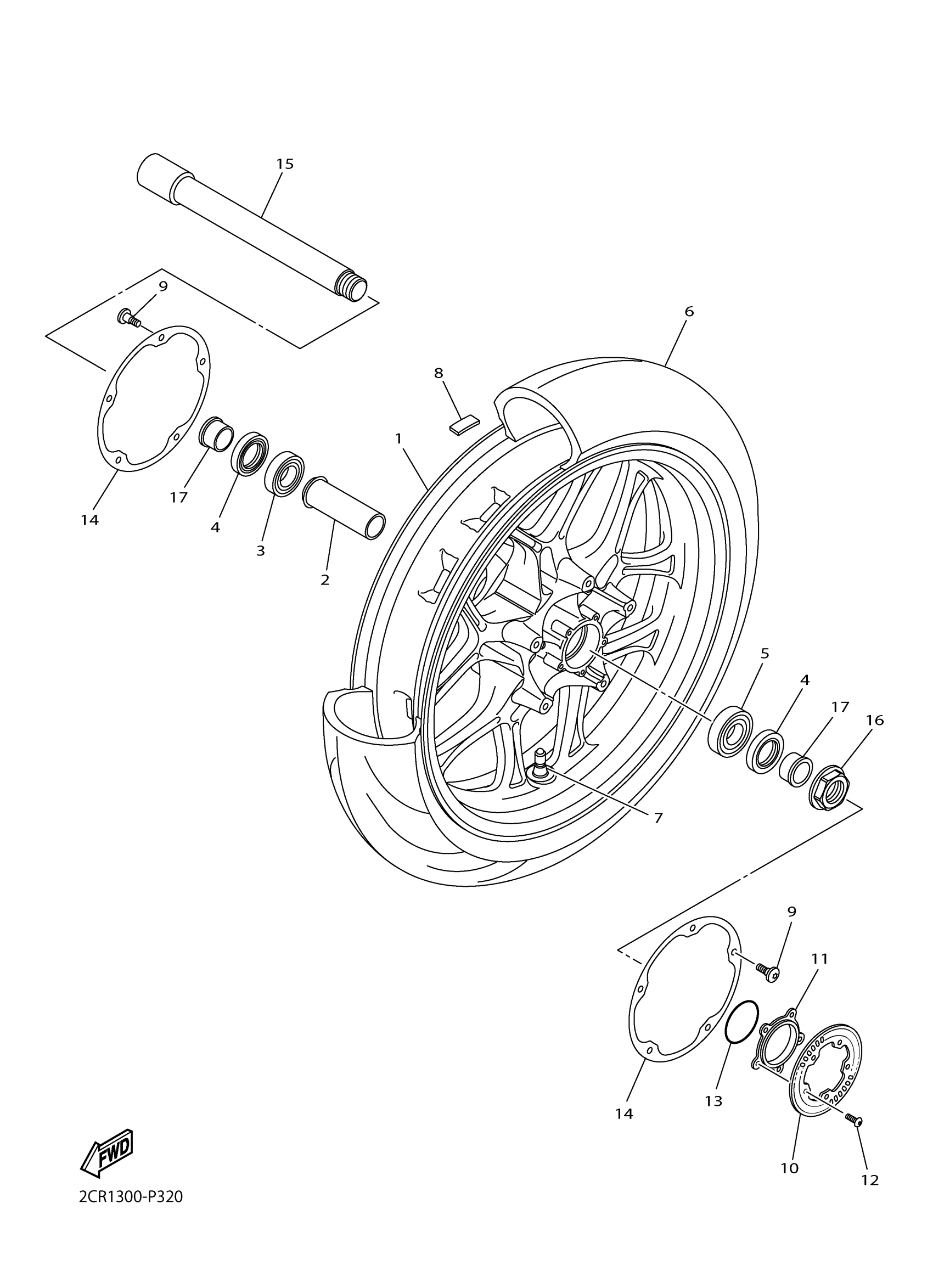

Yamaha YZFR1MFC (YZFR1M CA) 2KS4 2015 FRONT WHEEL Diagram

CAST WHEEL, FRONT

SPACER ASSY

BRG,R-B 6005 47MM 85G KY

OIL SEAL

BEARING

TIRE (120/70 ZR17M/C 58W)

VALVE, RIM(2GH)

BALANCER, WHEEL

SCREW

ROTOR, SENSOR

RING, WHEEL 1

SCREW

O-RING (4G0)

PLATE 1

AXLE, WHEEL

NUT

COLLAR
