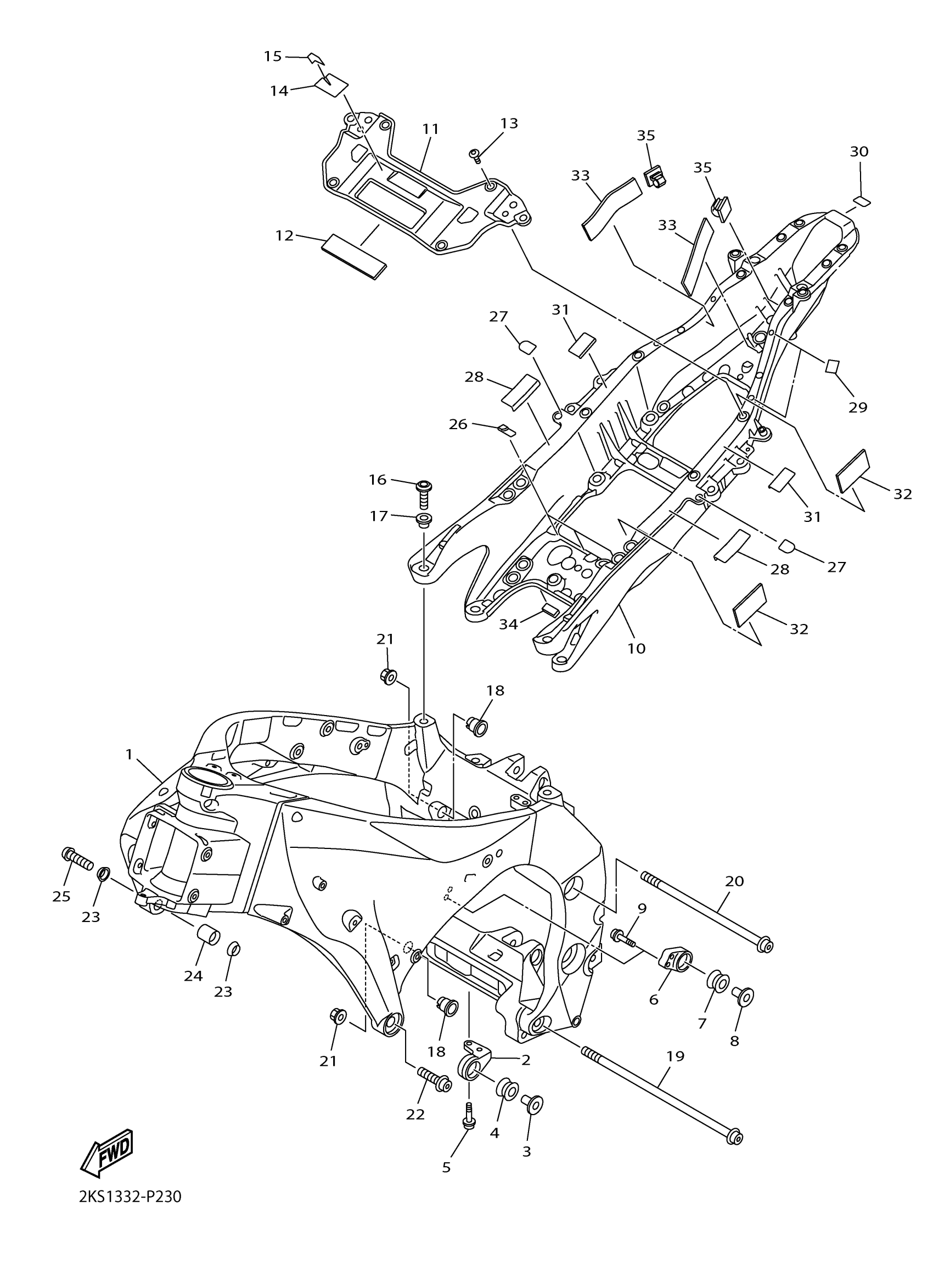

Yamaha YZFR1MFC (YZFR1M CA) 2KS4 2015 FRAME Diagram
#
Description
Price
1
FRAME COMP.
2CR-21110-00-00
Unavailable
5
BOLT, HEXAGON SOCKET HEAD
90110-06248-00
Unavailable
10
REAR FRAME COMP.
2CR-21190-00-00
Unavailable
11
REINF., FRAME RR.
2CR-21214-00-00
Unavailable
16
SCREW
90149-10003-00
Unavailable
17
COLLAR
2CR-21116-00-00
Unavailable
18
BOLT, ENGINE ADJUSTING
5YU-21495-00-00
Unavailable
19
BOLT, HEXAGON SOCK
90110-12010-00
Unavailable
20
BOLT, HEXAGON SOCK
90110-12008-00
Unavailable
21
Nut
90179-12004-00
Unavailable
22
BOLT, HEXAGON SOCK
90110-12007-00
Unavailable
23
BOSS, ENGINE MOUNT
14B-21414-00-00
Unavailable
24
BOSS, ENGINE MOUNT
14B-21424-00-00
Unavailable
25
BOLT,HEX. SOCKET B
90111-12003-00
Unavailable
26
DAMPER 1
7TG-2214F-00-00
Unavailable
27
SEAL 1
2CR-22873-00-00
Unavailable
28
SEAL 2
2CR-22874-00-00
Unavailable
29
SEAL 3
2CR-22875-01-00
Unavailable
30
SEAL
5SL-21268-00-00
Unavailable
31
SEAL 4
2CR-22876-00-00
Unavailable
32
PATCH 5
5JW-2164K-00-00
Unavailable
33
SEAL
5TH-21268-01-00
Unavailable
34
DAMPER 1
13S-28415-00-00
Unavailable
35
CLAMP
90464-13004-00
Unavailable
