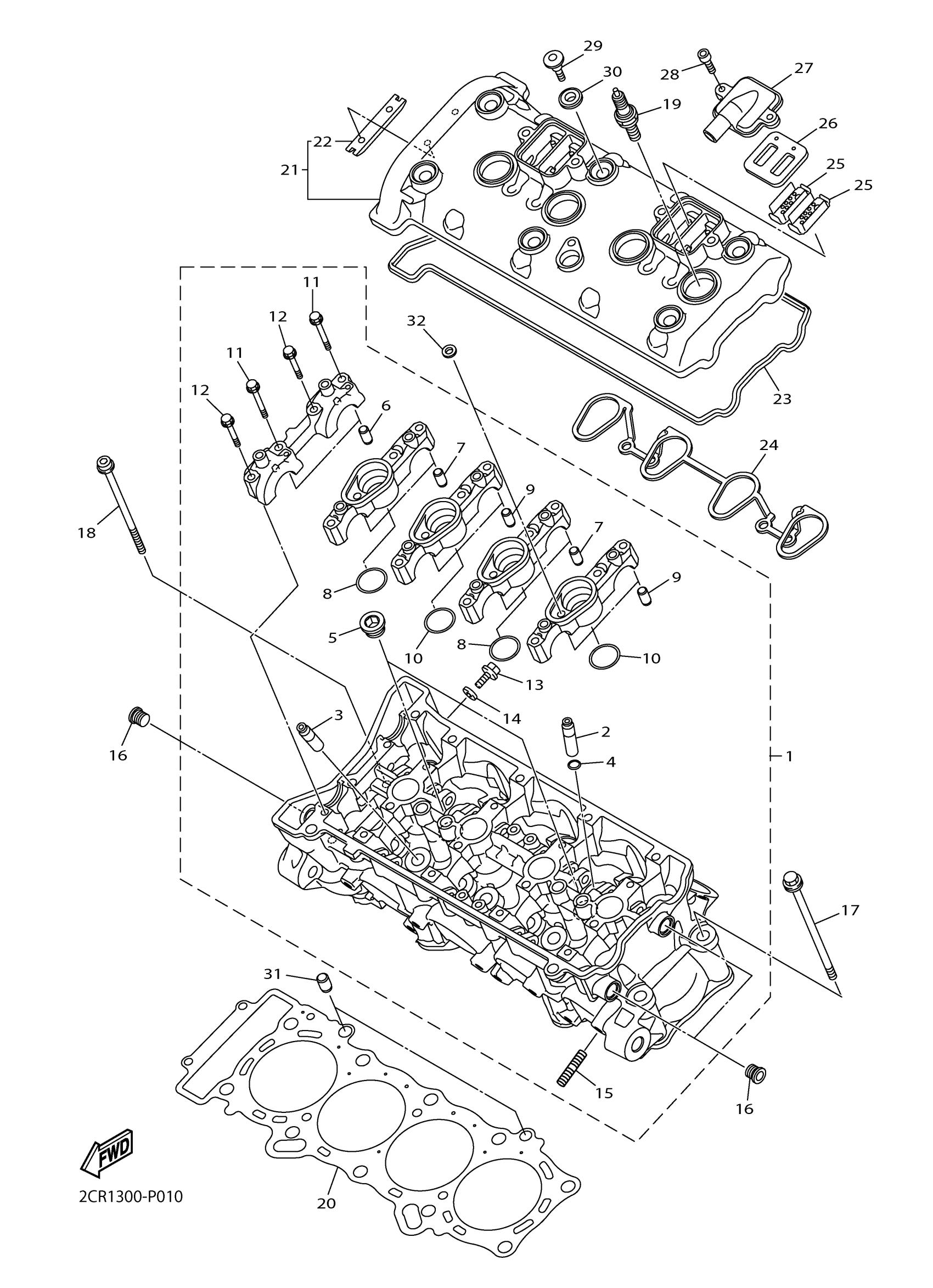

Yamaha YZFR1MFC (YZFR1M CA) 2KS4 2015 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2CR-W1101-07-00

Unavailable

2

GUIDE, VALVE 1

2CR-11133-10-00

$66.99

3

GUIDE, VALVE 2

2CR-11134-10-00

$66.99

4

CIRCLIP(1WG)

93440-10153-00

$2.39

5

PLUG, STRAIGHT SCR

90340-18004-00

Unavailable

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

O-RING(36Y)

93210-26658-00

$7.49

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

O-RING(36Y)

93210-26658-00

$7.49

11

BOLT, WASHER BASED

90105-06027-00

$7.49

12

BOLT, FLANGE

90105-06209-00

$2.17

13

BOLT, FLANGE

95022-06012-00

$3.29

14

GASKET 256113960000

90430-06014-00

Unavailable

15

BOLT, STUD

95612-08615-00

Unavailable

16

PLUG, STRAIGHT SCREW

90340-12014-00

Unavailable

17

BOLT, WITH WASHER

90119-09016-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06315-00

Unavailable

19

PLUG, SPARK (NGK LMAR9E-J)

LMA-R9EJ0-00-00

Unavailable

20

GASKET, CYLINDER H

2CR-11181-00-00

Unavailable

21

COVER, CYLINDER HEAD 1

2CR-11191-01-00

Unavailable

22

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

23

GASKET, HEAD COVER

2CR-11193-00-00

Unavailable

24

GASKET, HEAD COVER

2CR-11194-00-00

Unavailable

25

PLATE

5VY-1482K-00-00

Unavailable

26

REED VALVE ASSY

5SL-14890-10-00

Unavailable

27

CAP, CASE

14B-14899-01-00

Unavailable

28

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

29

BOLT(4BP)

90109-066F0-00

Unavailable

30

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

31

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

32

GASKET (4V2)

90430-06166-00

Unavailable
