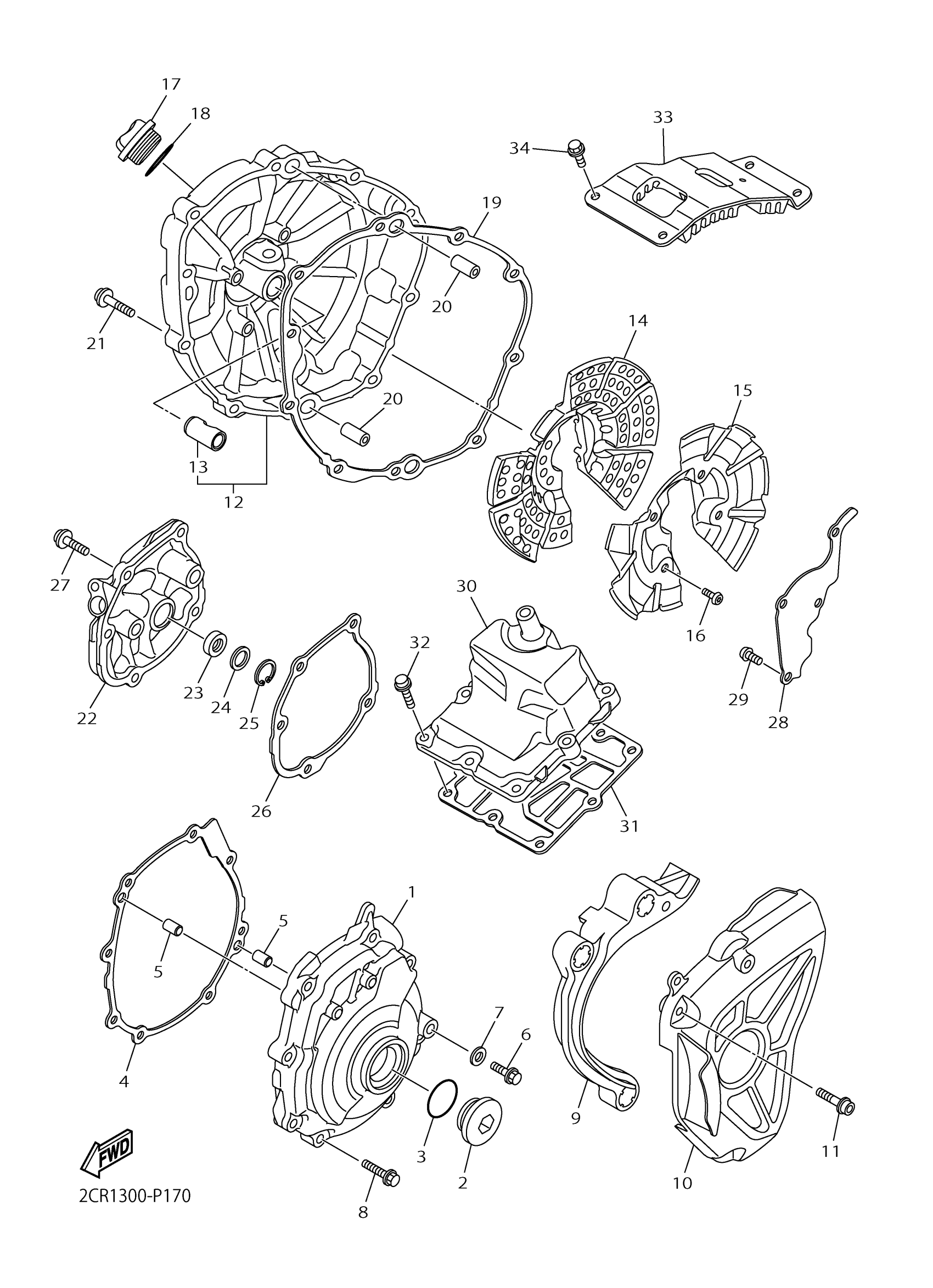

Yamaha YZFR1MFC (YZFR1M CA) 2KS4 2015 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

B3L-15411-10-00

$307.99

2

PLUG, STRAIGHT SCREW

90340-27003-00

$33.99

3

O-RING(1KT)

93210-27778-00

$8.49

4

GASKET, CRANKCASE

2CR-15451-00-00

$16.49

5

PIN, DOWEL

99530-08012-00

Unavailable

6

BOLT

90109-08239-00

Unavailable

7

. GASKET

90430-08143-00

Unavailable

8

BOLT

90109-06300-00

$16.99

9

GUIDE, INLET

2CR-15377-00-00

$39.99

10

COVER, CHAIN CASE

2CR-15418-00-00

$25.99

11

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

12

COVER, CRANKCASE 2

2CR-15421-00-00

Unavailable

13

COLLAR

5VY-15541-00-00

Unavailable

14

DAMPER 1

2CR-15316-00-00

Unavailable

15

COVER

2CR-15492-00-00

$34.99

16

SCREW

90149-06156-00

Unavailable

17

PLUG, OIL

2CR-15363-01-00

Unavailable

18

O-RING (25G)

93210-29574-00

Unavailable

19

GASKET, CRANKCASE

2CR-15461-00-00

Unavailable

20

PIN, DOWEL

91810-20002-00

Unavailable

21

BOLT

90109-06301-00

Unavailable

22

COVER, OIL PUMP

2CR-15416-01-00

Unavailable

23

OIL SEAL

93101-10004-00

Unavailable

24

WASHER PLATE 164185720000

90201-12166-00

Unavailable

25

CIRCLIP

99009-19500-00

Unavailable

26

GASKET, OIL PUMP C

2CR-15456-00-00

Unavailable

27

BOLT

90109-06299-00

Unavailable

28

PLATE, BREATHER

2CR-11165-00-00

Unavailable

29

SCREW

90149-06156-00

Unavailable

30

COVER

2CR-15413-00-00

Unavailable

31

GASKET, CRANKCASE

2CR-15462-00-00

Unavailable

32

BOLT

90109-06300-00

$16.99

33

PLATE

2CR-15113-00-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable
