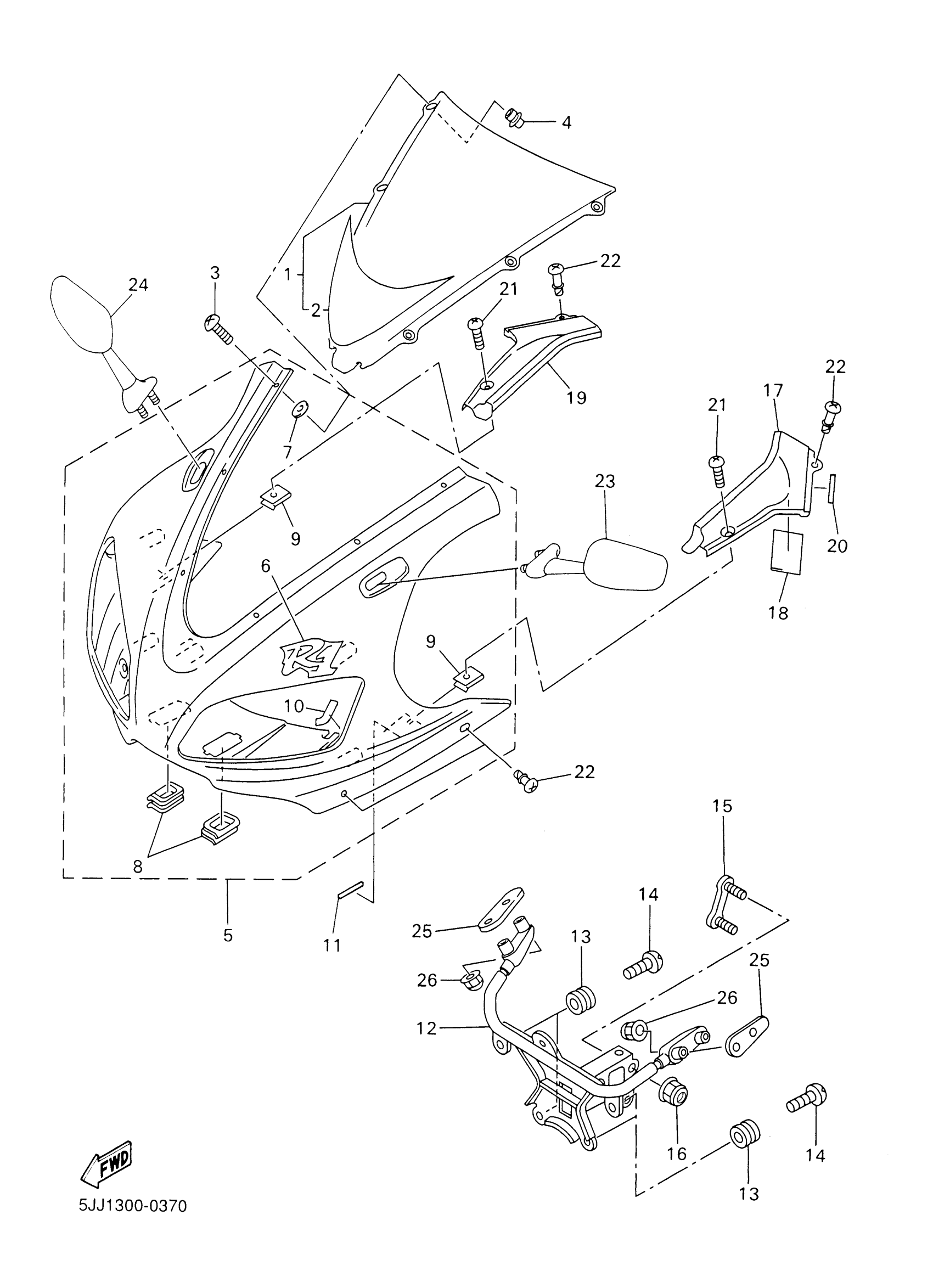

Yamaha YZFR1MC (YZFR1 CA) 5JJ5 2000 COWLING 1 Diagram

WINDSHIELD

5JJ-W2881-30-00

Unavailable

. GRAPHIC 18

5JJ-2832P-01-00

Unavailable

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

NUT(1KT)

90179-05523-00

$8.49

BODY, FRONT UPPER 1 (DEEP PURPLISH BLUE METALLIC C)

5JJ-Y283G-00-1X

Unavailable

BODY, FRONT UPPER 1

5JJ-W283G-10-4X

Unavailable

. EMBLEM (VIVID RED COCKTAIL 1) (BLACK 2)

4XV-28315-20-00

Unavailable

. EMBLEM (DEEP PURPLISH BLUE METALLIC C)

4XV-28315-30-00

Unavailable

PROTECTOR 2

5JJ-2834W-00-00

$7.99

. CAP

4XV-28349-00-00

Unavailable

NUT, SPRING(3YX)

90183-05074-00

Unavailable

DAMPER, PLATE 2

1LJ-2414J-00-00

$7.99

DAMPER

4XV-2834E-00-00

$4.47

STAY 1

5JJ-28356-01-00

Unavailable

DAMPER

4XV-83513-00-00

$7.99

SCREW, TAPPING

90164-05001-00

Unavailable

PLATE

4XV-28336-00-00

Unavailable

NUT, SELF-LOCKING

90185-08169-00

Unavailable

PANEL, CONSOLE 1

4XV-2837L-00-00

Unavailable

DAMPER

1TX-28371-00-00

Unavailable

PANEL, CONSOLE 2

4XV-2837M-00-00

Unavailable

PROTECTOR, FUEL TANK

4EU-24141-00-00

Unavailable

SCREW, BINDING (10V)

90154-05013-00

Unavailable

HEAD

3XV-28386-00-00

Unavailable

REAR VIEW MIRROR ASSY(LEFT)

5JJ-26280-00-00

Unavailable

REAR VIEW MIRROR ASSY(RIGHT)

5JJ-26290-00-00

Unavailable

PLATE, MIRROR FITTING 1

4SV-26298-00-00

Unavailable

NUT, CROWN(1FN)

90176-06055-00

Unavailable
