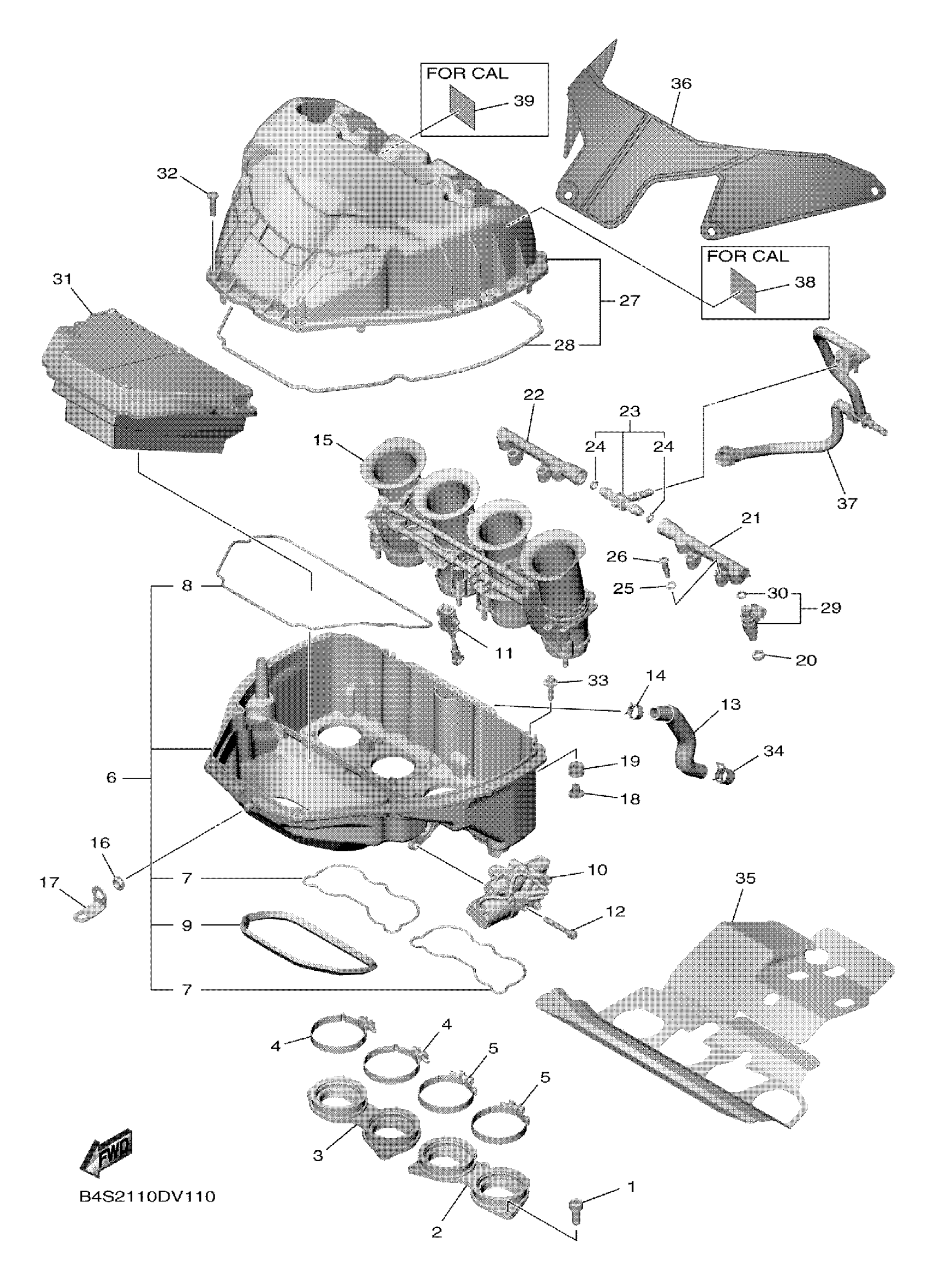

Yamaha YZFR1M1L (YZFR1) B3LB 2021 INTAKE Diagram
#
2
JOINT, INTAKE 1
B3L-13635-00-00
Unavailable
3
JOINT, INTAKE 2
B3L-13636-00-00
Unavailable
9
DAMPER 1
B3L-14425-00-00
Unavailable
10
GEARED MOTOR COMP. 2
14B-85870-01-00
Unavailable
11
SHAFT ASSY
2CR-14490-00-00
Unavailable
12
BOLT, HEXAGON SOCKET HEAD
90110-05045-00
Unavailable
13
PIPE, BREATHER 2
B3L-15393-00-00
Unavailable
16
GROMMET
90480-12010-00
Unavailable
17
STAY 1
2CR-14498-00-00
Unavailable
18
COLLAR
90387-06205-00
Unavailable
19
GROMMET(3AA)
90480-12497-00
Unavailable
20
GASKET, MANIFOLD
8FP-13556-00-00
Unavailable
21
PIPE, INLET
2CR-1393A-00-00
Unavailable
22
PIPE, INLET 2
2CR-1393B-00-00
Unavailable
23
JOINT, AIR FILTER
2CR-1440F-00-00
Unavailable
24
O-RING
39P-14147-00-00
Unavailable
25
GASKET
363-14198-00-00
Unavailable
26
BOLT 1
14B-13573-00-00
Unavailable
27
CASE, AIR CLEANER 2
B3L-14421-11-00
Unavailable
28
SEAL
2CR-14452-00-00
Unavailable
29
INJECTOR
14B-13761-10-00
Unavailable
30
O-RING
5PS-14147-00-00
Unavailable
31
ELEMENT, AIR CLEANER
B3L-14451-02-00
Unavailable
32
SCREW, BINDING
98907-05020-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
Unavailable
34
CLIP
90467-160A6-00
Unavailable
35
PROTECTOR, HEAT
B3L-12682-00-00
Unavailable
36
COVER, AIR CLEANER
B3L-1449E-00-00
Unavailable
37
PIPE, FUEL 4
B3L-13974-01-00
Unavailable
