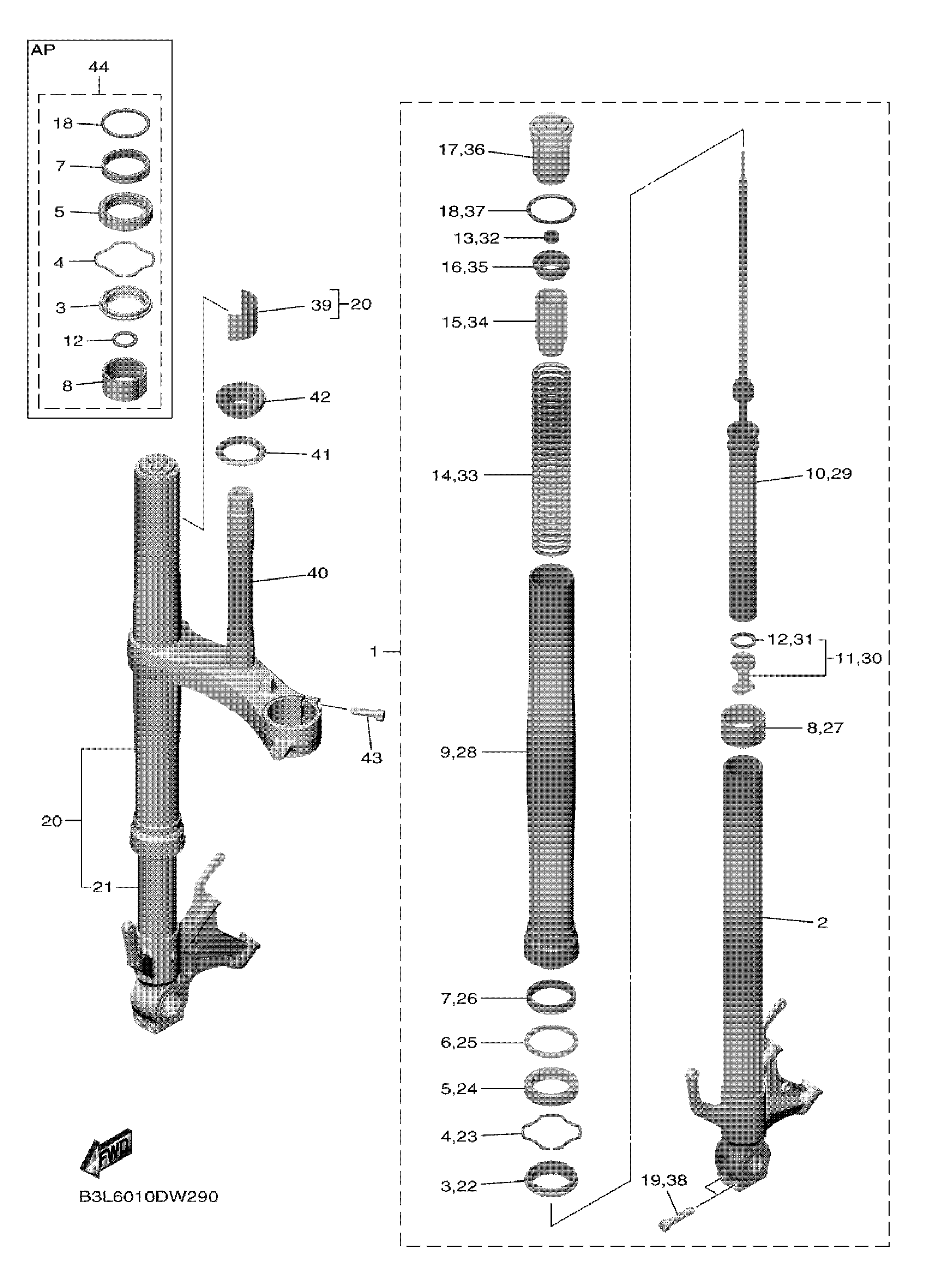

Yamaha YZFR1M1L (YZFR1) B3LB 2021 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

B3L-23102-00-00

Unavailable

2

INNER TUBE COMP.1

B3L-23110-00-00

Unavailable

3

SEAL, DUST

4PU-23144-00-00

$24.99

4

RING, SNAP

4V4-23153-L0-00

$9.99

5

OIL SEAL

4PU-23145-01-00

$25.99

6

WASHER, OIL SEAL

5PW-23146-00-00

$18.49

7

METAL, SLIDE 1

2CR-23125-00-00

$11.99

8

PISTON, FRONT FORK

2CR-23171-00-00

$27.99

9

TUBE, OUTER

2CR-23136-10-00

$345.99

10

CYLINDER COMP., FRONT FORK

B3L-23170-00-00

Unavailable

11

VALVE COMP.

B3L-2316A-00-00

Unavailable

12

O-RING

B3L-23147-00-00

$2.39

13

NUT

3LC-23357-00-00

$6.99

14

SPRING, FRONT FORK

BN6-23141-00-00

$32.99

15

SPACER

2CR-23118-00-00

Unavailable

16

GUIDE, SPRING

2CR-23117-00-00

Unavailable

17

BOLT, CAP

2CR-23111-10-00

Unavailable

18

O-RING

39P-23147-00-00

Unavailable

19

BOLT,SOCKET

91314-08040-00

Unavailable

20

FRONT FORK ASSY (R.H)

B3L-23103-00-00

Unavailable

21

INNER TUBE COMP.2

B3L-23120-00-00

Unavailable

22

SEAL, DUST

4PU-23144-00-00

$24.99

23

RING, SNAP

4V4-23153-L0-00

$9.99

24

OIL SEAL

4PU-23145-01-00

$25.99

25

WASHER, OIL SEAL

5PW-23146-00-00

$18.49

26

METAL, SLIDE 1

2CR-23125-00-00

$11.99

27

PISTON, FRONT FORK

2CR-23171-00-00

$27.99

28

TUBE, OUTER

2CR-23136-10-00

$345.99

29

CYLINDER COMP., FRONT FORK

B3L-23170-00-00

Unavailable

30

VALVE COMP.

B3L-2316A-00-00

Unavailable

31

O-RING

B3L-23147-00-00

$2.39

32

NUT

3LC-23357-00-00

$6.99

33

SPRING, FRONT FORK

BN6-23141-00-00

$32.99

34

SPACER

2CR-23118-00-00

Unavailable

35

GUIDE, SPRING

2CR-23117-00-00

Unavailable

36

BOLT, CAP

2CR-23111-10-00

Unavailable

37

O-RING

39P-23147-00-00

Unavailable

38

BOLT,SOCKET

91314-08040-00

Unavailable

39

PROTECTOR

5PW-23472-00-00

Unavailable

40

UNDER BRACKET COMP.

B3L-23340-00-00

Unavailable

41

SEAL, STEERING

3FV-23462-00-00

Unavailable

42

BEARING

93399-99957-00

Unavailable

43

BOLT,SOCKET

91314-08030-00

Unavailable

44

FORK SEAL KIT (ONE FORK)

B3L-W003B-00-00

Unavailable
