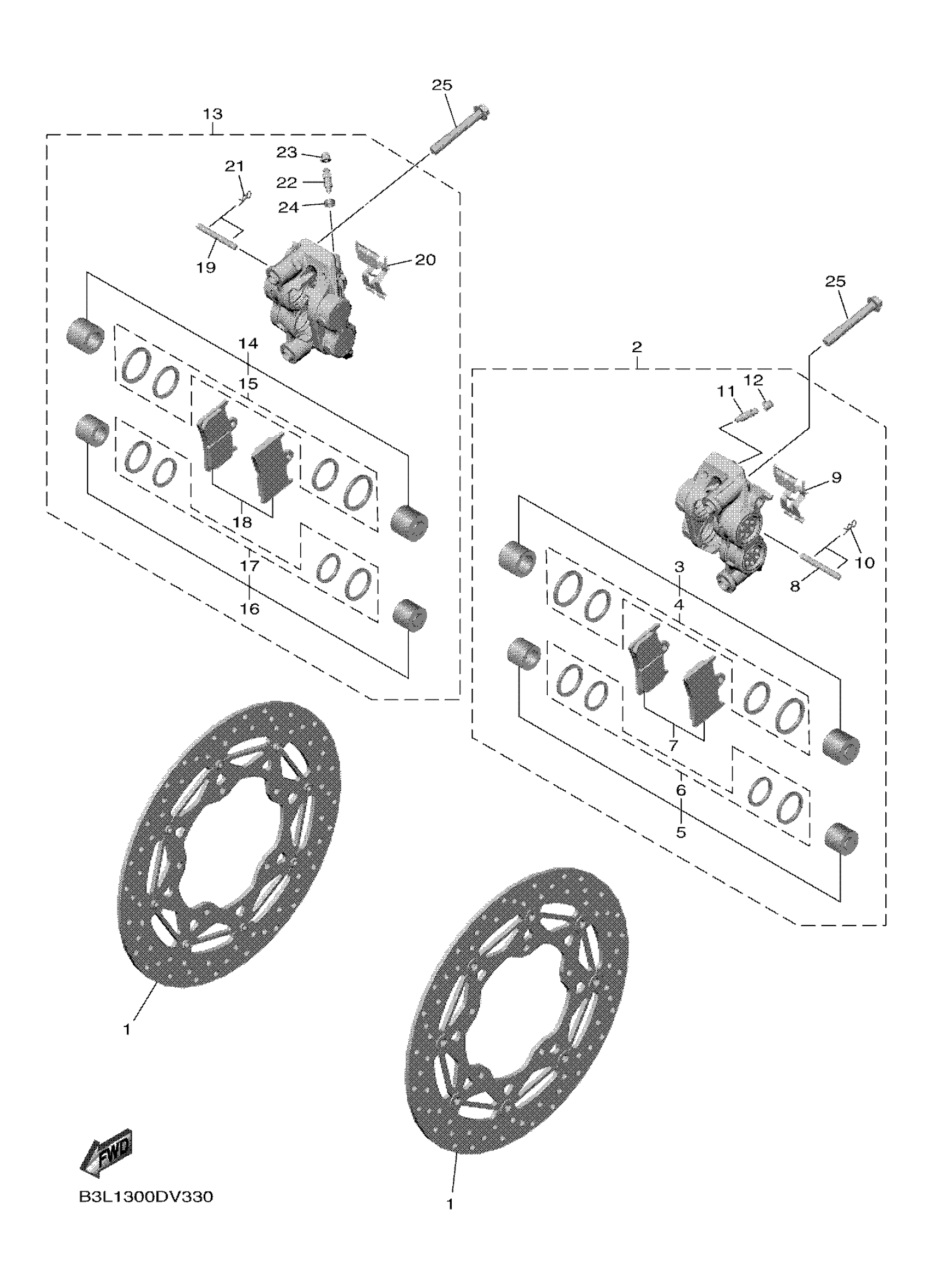

Yamaha YZFR1M1L (YZFR1) B3LB 2021 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

2CR-2581T-00-00

Unavailable

2

CALIPER ASSY (LEFT)

B3L-2580T-00-00

Unavailable

3

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

4

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

5

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

6

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

7

BRAKE PAD KIT

B3L-25805-00-00

$79.15

8

PIN, PAD

4SV-25924-00-00

$34.81

9

SUPPORT, PAD

13S-25919-00-00

$20.44

10

CLIP, PAD PIN

3GM-25925-00-00

$9.15

11

SCREW, BLEED

1J3-25824-00-00

$4.44

12

CAP

306-25825-01-00

$8.14

13

CALIPER ASSY (RIGHT)

B3L-2580U-00-00

Unavailable

14

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

15

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

16

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

17

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

18

BRAKE PAD KIT

B3L-25805-00-00

$79.15

19

PIN, PAD

4SV-25924-00-00

$34.81

20

SUPPORT, PAD

13S-25919-00-00

$20.44

21

CLIP, PAD PIN

3GM-25925-00-00

$9.15

22

SCREW, BLEED

5VS-25824-00-00

Unavailable

23

CAP

306-25825-01-00

$8.14

24

RUBBER, BUSHING

5VS-25975-00-00

Unavailable

25

BOLT, FLANGE

90105-10440-00

Unavailable
