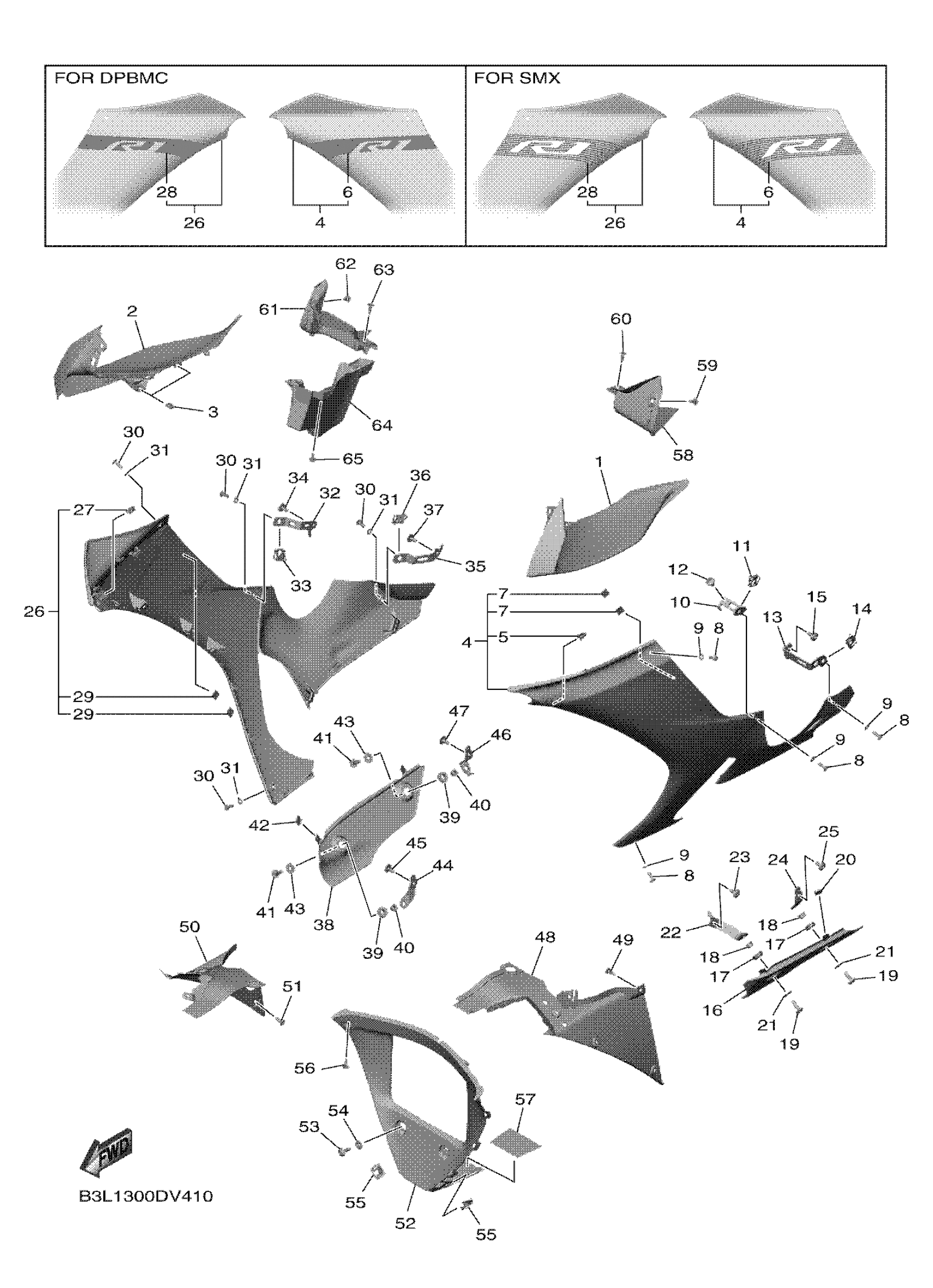

Yamaha YZFR1M1L (YZFR1) B3LB 2021 COWLING 2 Diagram
#
4
PANEL ASSEMBLY 1
B3L-Y283U-10-P1
Unavailable
16
PROTECTOR 1
B3L-2834V-00-00
Unavailable
17
GROMMET(2JG)
90480-14477-00
Unavailable
18
COLLAR
90387-06307-00
Unavailable
19
SCREW(4DN)
90149-06302-00
Unavailable
20
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
21
WASHER, PLATE
90201-06095-00
Unavailable
22
BRKT., 17
B3L-2833R-00-00
Unavailable
24
BRKT.,18
B3L-2833T-00-00
Unavailable
26
PANEL ASSEMBLY 2
B3L-Y283V-10-P1
Unavailable
28
GRAPHIC 2
B3L-28392-10-00
Unavailable
32
BRACKET 15
B3L-2833M-00-00
Unavailable
35
BRACKET 16
B3L-2833N-00-00
Unavailable
38
PROTECTOR 2
B3L-2834W-00-00
Unavailable
39
GROMMET(2JG)
90480-14477-00
Unavailable
40
COLLAR
90387-06307-00
Unavailable
41
SCREW(4DN)
90149-06302-00
Unavailable
42
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
43
WASHER, PLATE
90201-06095-00
Unavailable
44
BRKT.,19
B3L-2833U-00-00
Unavailable
46
BRKT.,20
B3L-2833V-00-00
Unavailable
48
PANEL, INNER 1
B3L-2836K-00-00
Unavailable
49
RIVET
90269-06008-00
Unavailable
50
PANEL, INNER 2
B3L-2836L-00-00
Unavailable
51
RIVET
90269-06008-00
Unavailable
52
PANEL, INNER 3
B3L-2836M-00-00
Unavailable
53
SCREW(4DN)
90149-06302-00
Unavailable
54
COLLAR
90387-06309-00
Unavailable
56
RIVET
90269-06008-00
Unavailable
57
PROTECTOR
B3L-23472-00-00
Unavailable
58
PANEL, CONSOLE 1
B3L-2837L-00-00
Unavailable
59
BOLT
90109-05018-00
Unavailable
60
RIVET
90269-06008-00
Unavailable
61
PANEL, CONSOLE 2
B3L-2837M-00-00
Unavailable
62
BOLT
90109-05018-00
Unavailable
63
RIVET
90269-06008-00
Unavailable
64
BOX 1
B3L-2838K-01-00
Unavailable
65
BOLT
90111-05011-00
Unavailable
