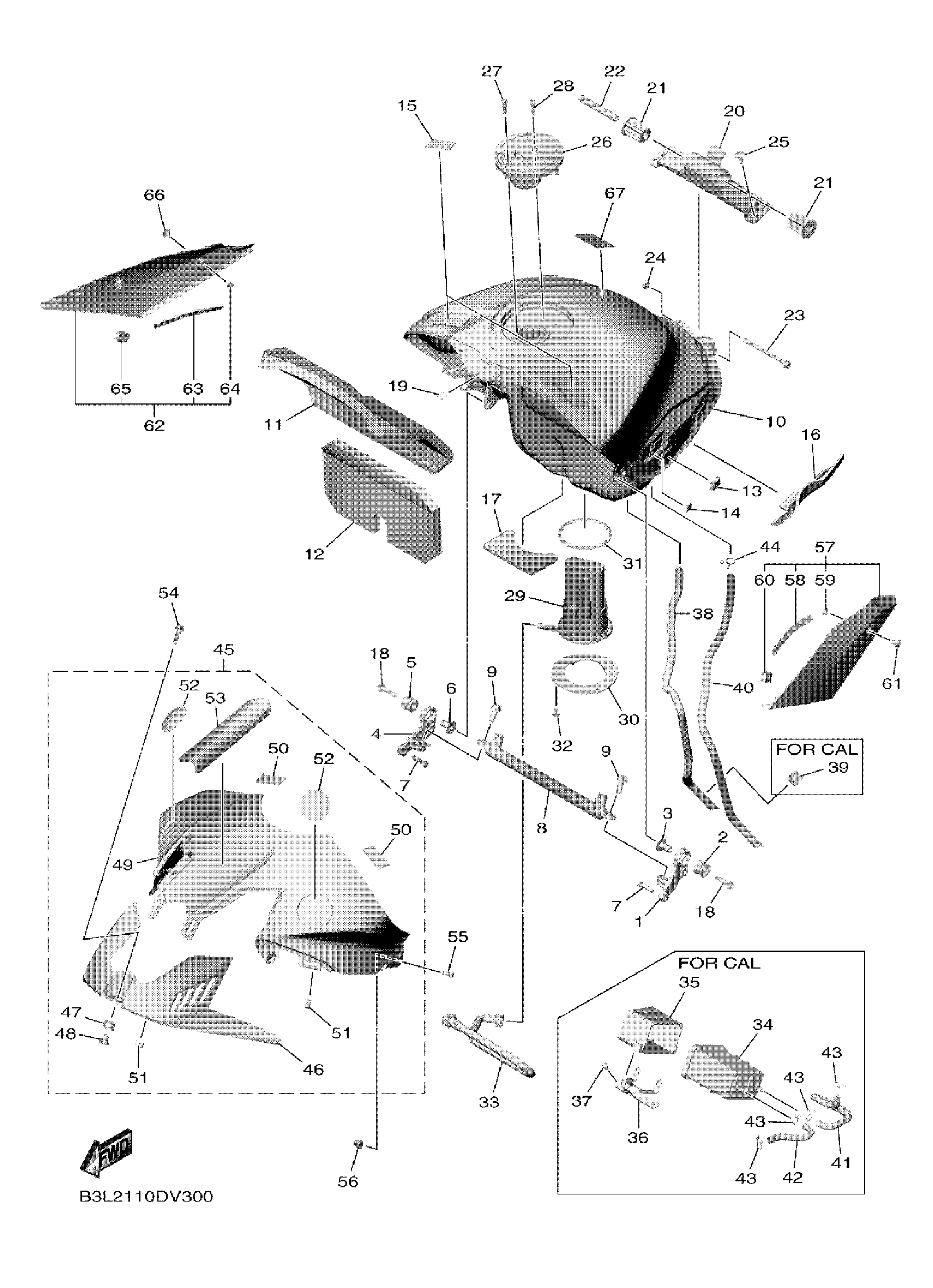

Yamaha YZFR1LL (YZFR1) B3L2 2020 FUEL TANK Diagram
#
1
BRACKET, FUEL TANK
2CR-24191-00-00
Unavailable
4
BRACKET, FUEL TANK
2CR-24192-00-00
Unavailable
8
CROSS BAR
B3L-2142V-00-00
Unavailable
16
PROTECTOR, FUEL TANK
B3L-24141-00-00
Unavailable
17
SEAL
B3L-2414G-00-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
90110-06346-00
Unavailable
19
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
20
BRACKET, TANK FITTING
B3L-2413Y-00-00
Unavailable
21
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
22
COLLAR
90387-06055-00
Unavailable
23
BOLT, FLANGE
95812-06090-00
Unavailable
24
NUT, FLANGE
95702-06500-00
Unavailable
25
BOLT
90111-06038-00
Unavailable
26
CAP ASSY
2CR-24602-01-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
28
BOLT
91312-05010-00
Unavailable
29
FUEL PUMP COMP.
2CR-13907-01-00
Unavailable
30
BRACKET, FUEL PUMP
2CR-24491-00-00
Unavailable
31
O-RING
1RC-24486-00-00
Unavailable
32
BOLT, WITH WASHER
90119-05015-00
Unavailable
33
PIPE, FUEL 1
B3L-13971-01-00
Unavailable
38
PIPE 2
2CR-24312-00-00
Unavailable
40
PIPE 3
2CR-24313-00-00
Unavailable
44
CLIP
90467-090A2-00
Unavailable
45
COVER, TOP
B3L-2170F-10-1X
Unavailable
46
COVER, TOP
B3L-2171A-00-P0
Unavailable
47
GROMMET
90480-12023-00
Unavailable
48
COLLAR
90387-06203-00
Unavailable
49
COVER, TANK
B3L-241B1-00-P1
Unavailable
50
HOOK, SIDE COVER 1
5XT-2411G-00-00
Unavailable
51
CLAMP
90464-04005-00
Unavailable
52
EMBLEM
1RC-2413B-02-00
Unavailable
54
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
Unavailable
55
SCREW, BIND
98902-05014-00
Unavailable
56
NUT(1KT)
90179-05523-00
Unavailable
57
TANK SIDE COVER ASSY 1
B3L-24106-00-P1
Unavailable
58
DAMPER, PLATE
90520-03016-00
Unavailable
59
COLLAR
90387-05035-00
Unavailable
61
BOLT,HEX. SOCKET BUTTON
90111-05057-00
Unavailable
62
TANK SIDE COVER ASSY 2
B3L-24108-00-P1
Unavailable
63
DAMPER, PLATE
90520-03016-00
Unavailable
64
COLLAR
90387-05035-00
Unavailable
66
BOLT,HEX. SOCKET BUTTON
90111-05057-00
Unavailable
67
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
