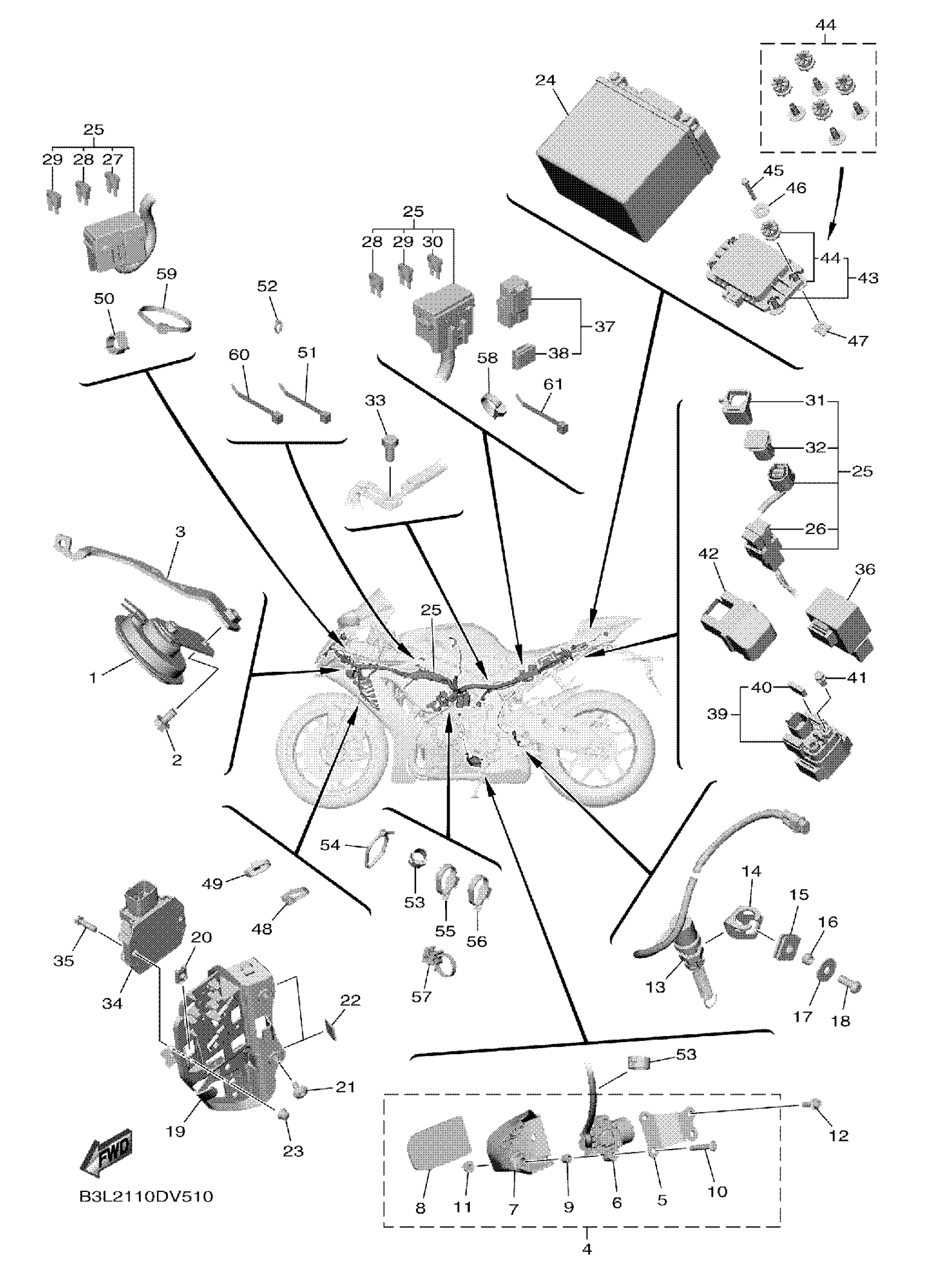

Yamaha YZFR1LL (YZFR1) B3L2 2020 ELECTRICAL 2 Diagram

#

Description
Price

1

HORN

B67-83371-00-00

$70.99

2

BOLT, FLANGE

95817-06012-00

$1.43

3

BRACKET, HORN

2CR-23377-00-00

Unavailable

4

COVER ASSY

B3L-27406-00-00

$115.99

5

BRACKET, SENSOR 1

B3L-27961-00-00

Unavailable

6

SWITCH, SIDE STAND

B3L-82566-01-00

$65.99

7

COVER 1

B3L-27453-00-00

Unavailable

8

SEAT 1

B3L-27498-00-00

Unavailable

9

COLLAR

90387-05025-00

$7.49

10

BOLT, BUTTON HEAD

92012-05030-00

$7.49

11

NUT, S/L FLANGE

95607-05200-00

$9.49

12

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

13

STOP SWITCH ASSY

2CR-82530-02-00

Unavailable

14

STAY, STOP SWITCH

2CR-2144G-00-00

$5.49

15

GROMMET(4SV)

90480-12607-00

$9.49

16

COLLAR 8121444900

90387-06023-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

19

BRACKET 5

B3L-2836H-00-00

Unavailable

20

NUT, SPRING(4ES)

90183-06069-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06095-00

Unavailable

22

DAMPER

13S-21649-00-00

Unavailable

23

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

24

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

Unavailable

25

WIRE HARNESS ASSY

B3L-82590-11-00

Unavailable

26

FUSE (50A)

5JW-82151-10-00

Unavailable

27

FUSE (2A-BL)

5JJ-82151-80-00

Unavailable

28

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

29

FUSE (15A)

67F-82151-50-00

Unavailable

30

. FUSE (10A)

67F-82151-40-00

Unavailable

31

BAND

B3L-82155-00-00

Unavailable

32

CAP

B3L-8215B-00-00

Unavailable

33

BOLT,SOCKET

91317-06012-00

Unavailable

34

RECTIFIER & REGULATOR ASSY

2CR-81960-01-00

Unavailable

35

BOLT, FLANGE

90105-06148-00

Unavailable

36

RELAY ASSY

5VK-81950-33-00

Unavailable

37

RELAY ASSY

1TP-81950-00-00

Unavailable

38

HOLDER,RELAY

5EA-81952-00-00

Unavailable

39

STARTER RELAY ASSY

2CR-81940-00-00

Unavailable

40

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

41

BOLT, FLANGE

95022-06008-00

Unavailable

42

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

43

INERTIAL MEASURE, UNIT ASSY

B3L-8593A-02-00

Unavailable

44

GROMMET AND COLLAR

2CR-W8A8D-01-00

Unavailable

45

BOLT

91312-04025-00

Unavailable

46

WASHER, PLAIN

2CR-81162-00-00

Unavailable

47

NUT, SPRING(47R)

90183-04039-00

Unavailable

48

BAND

1UA-82591-00-00

Unavailable

49

BAND

1UA-82591-00-00

Unavailable

50

CLAMP

90464-16003-00

Unavailable

51

BAND

1UA-82591-00-00

Unavailable

52

CLAMP

90465-10098-00

Unavailable

53

CLAMP

90464-13227-00

Unavailable

54

CLAMP

90464-16061-00

Unavailable

55

CLAMP

90464-13077-00

Unavailable

56

CLAMP

90464-13077-00

Unavailable

57

CLAMP

90464-45006-00

Unavailable

58

CLAMP

90464-13077-00

Unavailable

59

BAND

3MA-82591-00-00

Unavailable

60

BAND

1UA-82591-00-00

Unavailable

61

BAND

1UA-82591-00-00

Unavailable
