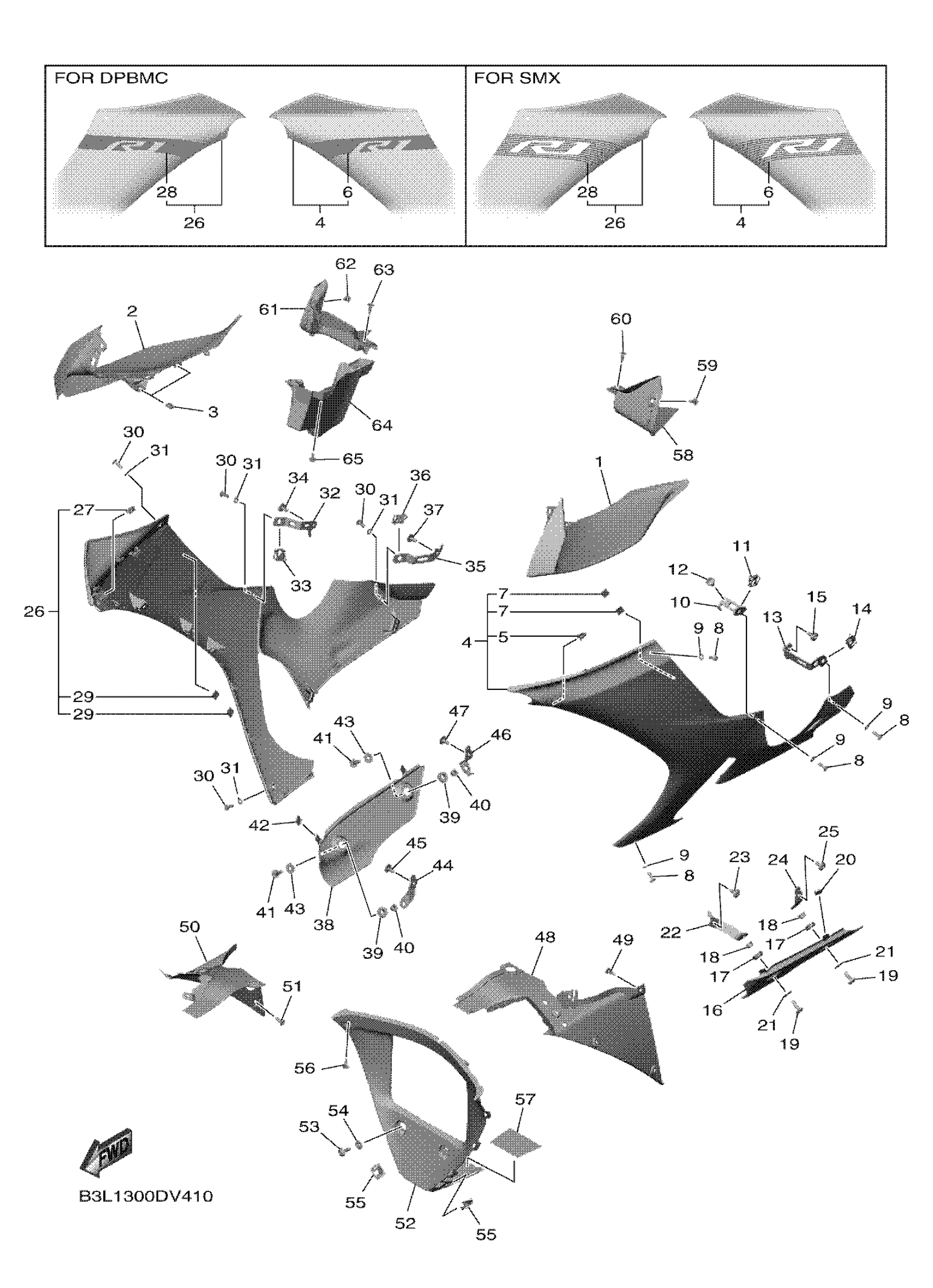

Yamaha YZFR1LL (YZFR1) B3L2 2020 COWLING 2 Diagram

#

Description
Price

1

COVER 5

B3L-2842A-00-P1

$133.36

2

COVER 6

B3L-2843C-00-P1

$122.20

3

NUT, SPRING

90183-050A6-00

$2.21

4

PANEL ASSEMBLY 1

B3L-Y283U-10-P1

Unavailable

5

CLAMP

90464-07018-00

$0.58

6

GRAPHIC 1

B3L-28391-10-00

$40.97

7

PROTECTOR

B3L-24595-00-00

$1.37

8

HEAD

2CR-28386-00-00

$11.48

9

WASHER, SPECIAL 1

8HG-21757-00-00

$0.84

10

BRACKET 13

B3L-2833K-00-00

$4.89

11

PLATE, SPRING

2CR-2177L-00-00

$4.47

12

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

13

BRACKET 14

B3L-2833L-00-00

$9.28

14

PLATE, SPRING

2CR-2177L-00-00

$4.47

15

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

16

PROTECTOR 1

B3L-2834V-00-00

Unavailable

17

GROMMET(2JG)

90480-14477-00

Unavailable

18

COLLAR

90387-06307-00

Unavailable

19

SCREW(4DN)

90149-06302-00

Unavailable

20

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

21

WASHER, PLATE

90201-06095-00

Unavailable

22

BRKT., 17

B3L-2833R-00-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

24

BRKT.,18

B3L-2833T-00-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

26

PANEL ASSEMBLY 2

B3L-Y283V-10-P1

Unavailable

27

CLAMP

90464-07018-00

$0.58

28

GRAPHIC 2

B3L-28392-10-00

Unavailable

29

PROTECTOR

B3L-24595-00-00

$1.37

30

HEAD

2CR-28386-00-00

$11.48

31

WASHER, SPECIAL 1

8HG-21757-00-00

$0.84

32

BRACKET 15

B3L-2833M-00-00

Unavailable

33

PLATE, SPRING

2CR-2177L-00-00

$4.47

34

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

35

BRACKET 16

B3L-2833N-00-00

Unavailable

36

PLATE, SPRING

2CR-2177L-00-00

$4.47

37

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

38

PROTECTOR 2

B3L-2834W-00-00

Unavailable

39

GROMMET(2JG)

90480-14477-00

Unavailable

40

COLLAR

90387-06307-00

Unavailable

41

SCREW(4DN)

90149-06302-00

Unavailable

42

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

43

WASHER, PLATE

90201-06095-00

Unavailable

44

BRKT.,19

B3L-2833U-00-00

Unavailable

45

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

46

BRKT.,20

B3L-2833V-00-00

Unavailable

47

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

48

PANEL, INNER 1

B3L-2836K-00-00

Unavailable

49

RIVET

90269-06008-00

Unavailable

50

PANEL, INNER 2

B3L-2836L-00-00

Unavailable

51

RIVET

90269-06008-00

Unavailable

52

PANEL, INNER 3

B3L-2836M-00-00

Unavailable

53

SCREW(4DN)

90149-06302-00

Unavailable

54

COLLAR

90387-06309-00

Unavailable

55

PLATE, SPRING

2CR-2177L-00-00

$4.47

56

RIVET

90269-06008-00

Unavailable

57

PROTECTOR

B3L-23472-00-00

Unavailable

58

PANEL, CONSOLE 1

B3L-2837L-00-00

Unavailable

59

BOLT

90109-05018-00

Unavailable

60

RIVET

90269-06008-00

Unavailable

61

PANEL, CONSOLE 2

B3L-2837M-00-00

Unavailable

62

BOLT

90109-05018-00

Unavailable

63

RIVET

90269-06008-00

Unavailable

64

BOX 1

B3L-2838K-01-00

Unavailable

65

BOLT

90111-05011-00

Unavailable
