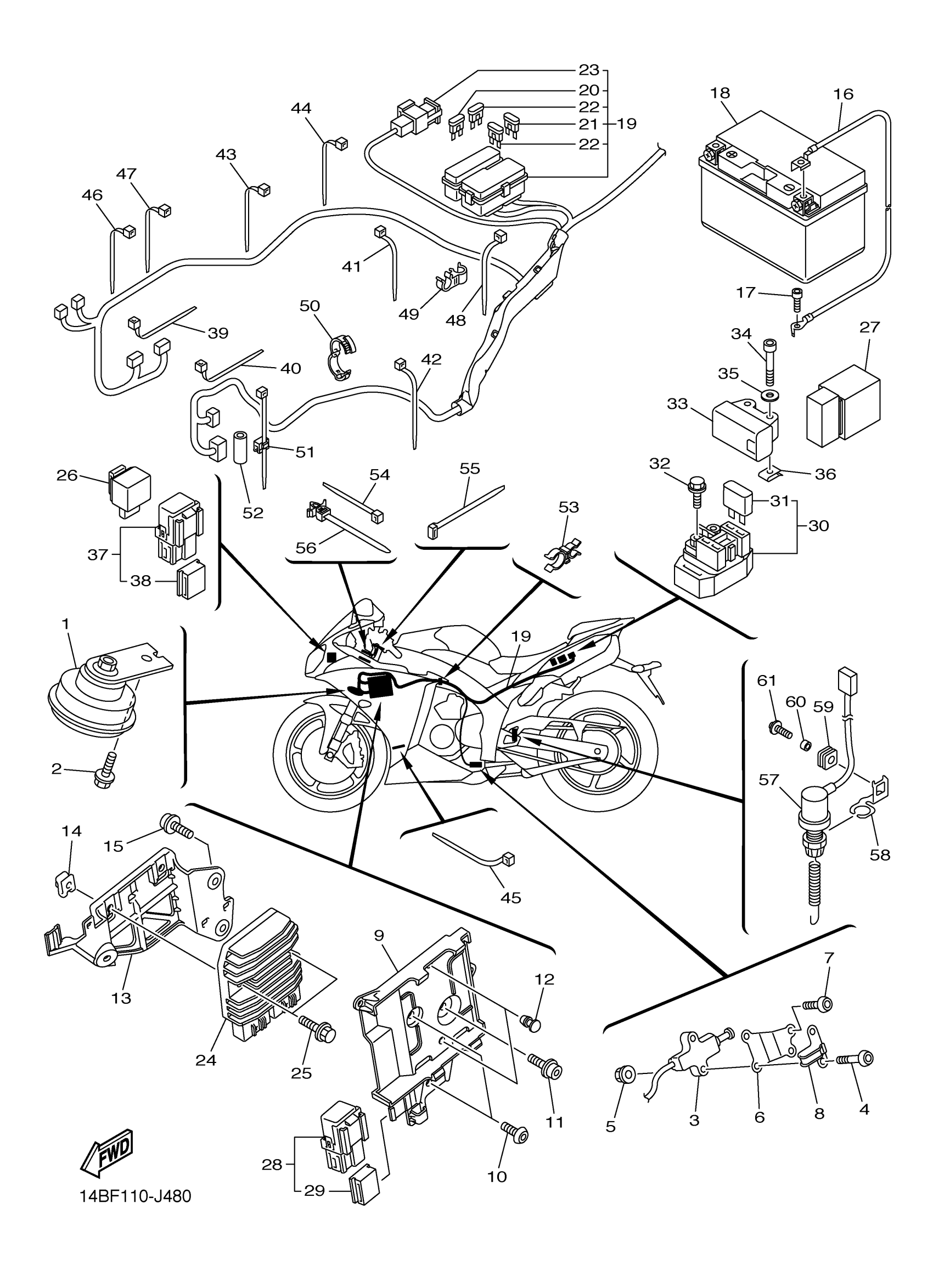

Yamaha YZFR1LEZC (YZFR1 LE CA) 14BM 2010 ELECTRICAL 2 Diagram

#

Description
Price

1

HORN

14B-83371-00-00

$99.99

2

BOLT, FLANGE

95817-06012-00

$1.43

3

SWITCH, SIDE STAND

13S-82566-50-00

$157.99

4

BOLT, BUTTON HEAD

92017-05025-00

$7.49

5

NUT, S/L FLANGE

95607-05200-00

$9.49

6

BRACKET, SENSOR 1

14B-27961-00-00

Unavailable

7

BOLT, BUTTON HEAD

92017-05016-00

$7.49

8

HOLDER

14B-27911-00-00

Unavailable

9

BRACKET 5

14B-2836H-00-00

Unavailable

10

BOLT,HEX. SOCKET BUTTON

90111-06119-00

$8.49

11

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

$8.49

12

PLUG(1NL)

90338-07180-00

$7.49

13

BRACKET 6

14B-2836J-00-00

$28.99

14

NUT, SPRING(4ES)

90183-06069-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

$8.49

16

WIRE, MINUS LEAD

14B-82116-00-00

Unavailable

17

BOLT,SOCKET

91317-06012-00

Unavailable

18

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

19

WIRE HARNESS ASSY

14B-82590-12-00

Unavailable

20

FUSE

5JJ-82151-20-00

Unavailable

21

FUSE (15A)

67F-82151-50-00

Unavailable

22

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

23

FUSE (50A)

5JW-82151-10-00

Unavailable

24

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

25

BOLT, FLANGE

90105-06148-00

Unavailable

26

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

27

RELAY ASSY

5VK-81950-43-00

Unavailable

28

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

29

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

30

STARTER RELAY ASSY (RC19-032)

5JW-81940-02-00

Unavailable

31

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

32

BOLT, FLANGE

95022-06008-00

Unavailable

33

SENSOR, LEAN ANGLE

5VU-82576-03-00

Unavailable

34

BOLT

91312-04025-00

Unavailable

35

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

36

NUT, SPRING(47R)

90183-04039-00

Unavailable

37

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

38

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

39

CLAMP(4FM)

90464-15195-00

Unavailable

40

CLAMP(4FM)

90464-15195-00

Unavailable

41

CLAMP (6E5)

90465-13M11-00

Unavailable

42

CLAMP

90464-16061-00

Unavailable

43

CLAMP

90464-16061-00

Unavailable

44

CLAMP

90464-13077-00

Unavailable

45

CLAMP(4FM)

90464-15195-00

Unavailable

46

CLAMP(4FM)

90464-15195-00

Unavailable

47

CLAMP

90464-13077-00

Unavailable

48

CLAMP

90464-13077-00

Unavailable

49

CLAMP

90464-12009-00

Unavailable

50

CLAMP

90464-16001-00

Unavailable

51

CLAMP

90464-36004-00

Unavailable

52

HOSE

90445-10365-00

Unavailable

53

CLAMP

90464-21256-00

Unavailable

54

CLAMP

90464-16061-00

Unavailable

55

CLAMP

90464-59001-00

Unavailable

56

CLAMP(2TV)

90464-10112-00

Unavailable

57

STOP SWITCH ASSY

14B-82530-01-00

Unavailable

58

STAY, STOP SWITCH

14B-2144G-00-00

Unavailable

59

GROMMET(4SV)

90480-12607-00

Unavailable

60

COLLAR

90387-06M16-00

Unavailable

61

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable
