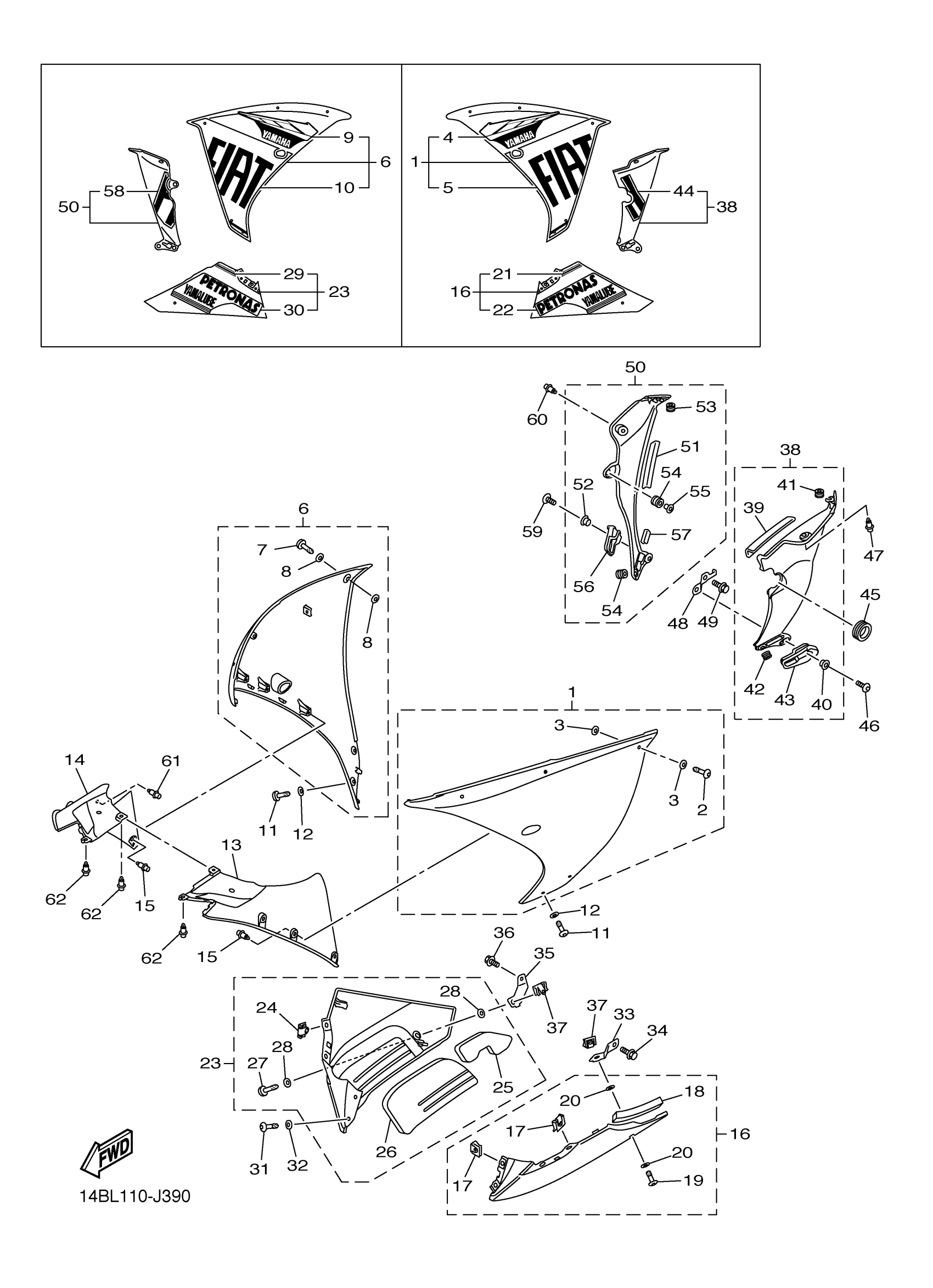

Yamaha YZFR1LEZC (YZFR1 LE CA) 14BM 2010 COWLING 2 Diagram
#
1
PANEL ASSY 1
14B-W283U-K0-P2
Unavailable
4
GRAPHIC, 21
14B-283B5-00-00
Unavailable
5
EMBLEM
14B-2836C-00-00
Unavailable
6
PANEL ASSY 2
14B-W283V-K0-P2
Unavailable
9
. GRAPHIC, 22
14B-283B6-00-00
Unavailable
10
. EMBLEM
14B-2837C-00-00
Unavailable
16
UNDER COVER COMP. 1
14B-W2838-B0-P2
Unavailable
17
PLATE, SPRING
5PW-2177L-01-00
Unavailable
18
DAMPER 3
14B-2834E-00-00
Unavailable
21
GRAPHIC, UNDER COVER 1
14B-283A1-00-00
Unavailable
22
. GRAPHIC, UNDER COVER 3
14B-283A3-00-00
Unavailable
23
UNDER COVER COMP. 2
14B-W2839-B1-P2
Unavailable
24
PLATE, SPRING
5PW-2177L-01-00
Unavailable
25
DAMPER
14B-28371-00-00
Unavailable
26
SEAT 4
14B-2848M-00-00
Unavailable
29
. GRAPHIC, UNDER COVER 2
14B-283A2-00-00
Unavailable
30
GRAPHIC, UNDER COVER 4
14B-283A4-00-00
Unavailable
33
BRACKET 1
14B-2836A-00-00
Unavailable
34
BOLT, FLANGE
95817-06016-00
Unavailable
35
BRACKET 2
14B-2836E-00-00
Unavailable
36
BOLT, FLANGE
95817-06016-00
Unavailable
37
PLATE, SPRING
5PW-2177L-01-00
Unavailable
38
PANEL, INNER 3 ASSY
14B-W283S-10-P1
Unavailable
39
DAMPER, PLATE
90520-05011-00
Unavailable
40
COLLAR
90387-08079-00
Unavailable
41
GROMMET
90480-08006-00
Unavailable
42
GROMMET(4FM)
90480-12596-00
Unavailable
43
STOPPER, RUBBER 1
14B-283C1-00-00
Unavailable
44
. GRAPHIC 42
14B-283BT-00-00
Unavailable
45
DAMPER, LOCATING 1
14B-2836T-00-00
Unavailable
46
BOLT
90111-06051-00
Unavailable
47
RIVET(4PH)
90269-07077-00
Unavailable
48
STAY 1
14B-28321-00-00
Unavailable
49
BOLT, FLANGE
95817-06012-00
Unavailable
50
PANEL, INNER 4 ASSY
14B-W28AH-10-P1
Unavailable
51
SEAL 1
3NU-21732-00-00
Unavailable
52
COLLAR
90387-08079-00
Unavailable
53
GROMMET
90480-08006-00
Unavailable
54
GROMMET(4FM)
90480-12596-00
Unavailable
55
COLLAR
90387-06159-00
Unavailable
56
STOPPER, RUBBER 2
14B-283C2-00-00
Unavailable
57
SEAL 5
4B5-2847F-00-00
Unavailable
58
. GRAPHIC 43
14B-283BU-00-00
Unavailable
59
BOLT
90111-06051-00
Unavailable
60
RIVET(4PH)
90269-07077-00
Unavailable
