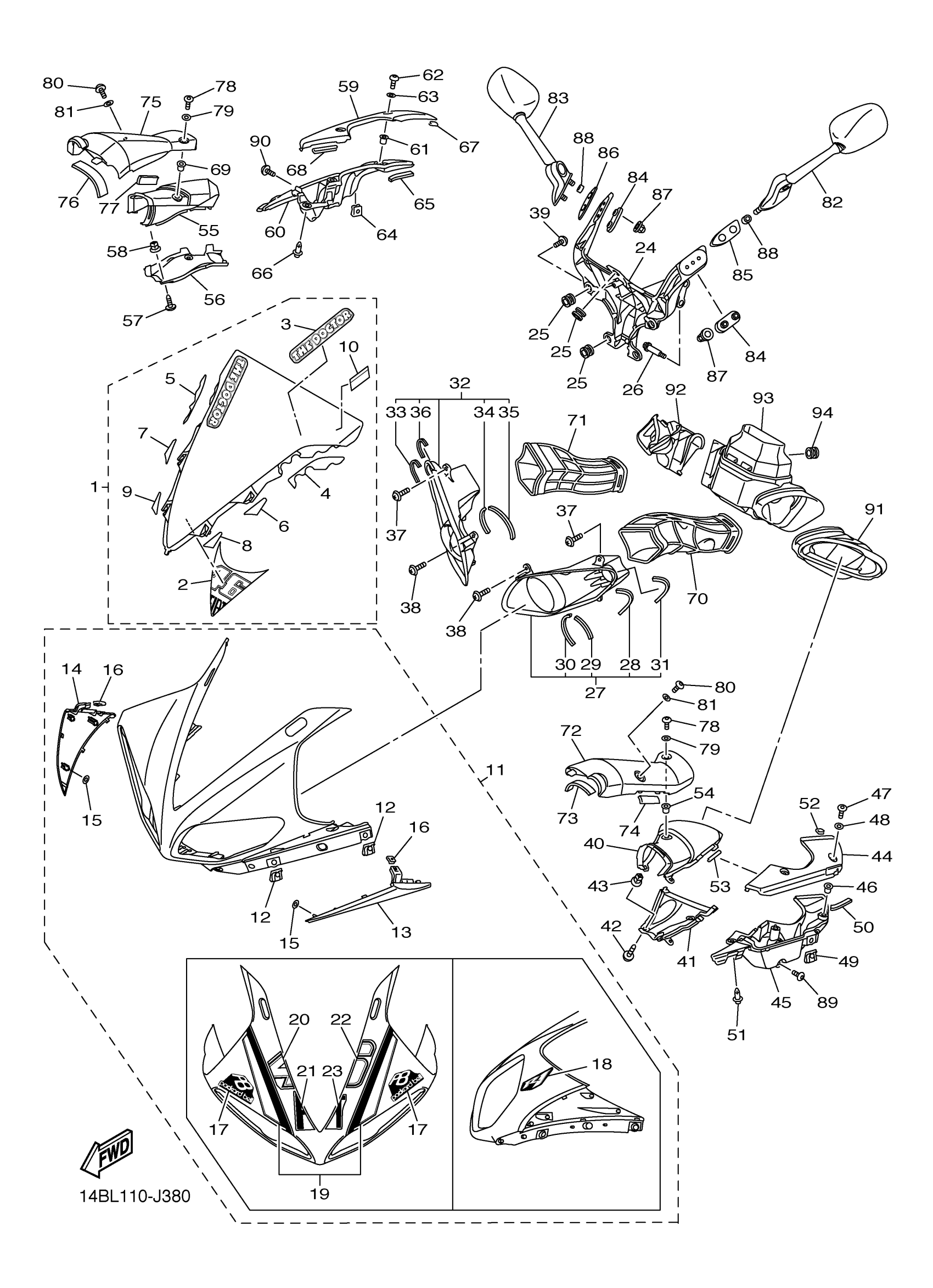

Yamaha YZFR1LEZC (YZFR1 LE CA) 14BM 2010 COWLING 1 Diagram
#
1
SCREEN SUB ASSY
14B-W283P-40-00
Unavailable
2
GRAPHIC
14B-283BX-10-00
Unavailable
3
. EMBLEM
5SL-28338-00-00
Unavailable
4
SEAL 1
14B-28428-00-00
Unavailable
5
. SEAL 2
14B-28429-00-00
Unavailable
11
BODY, FRONT UPPER 1
14B-W283G-81-0X
Unavailable
13
COVER 1
14B-28219-00-P3
Unavailable
14
COVER 2
14B-28229-00-P3
Unavailable
16
NUT, SPRING
90183-050A6-00
Unavailable
17
EMBLEM 2, R
14B-2835C-00-00
Unavailable
18
EMBLEM 1, L
14B-2834C-00-00
Unavailable
19
GRAPHIC SET 1, COWLING
14B-2834X-00-00
Unavailable
20
. GRAPHIC, 4
14B-28394-00-00
Unavailable
21
. GRAPHIC, 5
14B-28398-00-00
Unavailable
22
. GRAPHIC, 6
14B-28399-00-00
Unavailable
23
. GRAPHIC, 7
14B-2839A-00-00
Unavailable
24
STAY 1
14B-28356-00-00
Unavailable
25
DAMPER
4XV-83513-00-00
Unavailable
26
BOLT, FLANGE
90105-08052-00
Unavailable
27
GRILL ASSY
14B-2838B-00-00
Unavailable
28
DAMPER
14B-28372-00-00
Unavailable
29
SEAL 4
J44-78248-00-00
Unavailable
30
DAMPER, PLATE
90520-03001-00
Unavailable
31
DAMPER 5
1TX-28267-00-00
Unavailable
32
GRILL ASSY
14B-2838B-10-00
Unavailable
33
DAMPER
14B-28372-00-00
Unavailable
34
SEAL 4
J44-78248-00-00
Unavailable
35
DAMPER, PLATE
90520-03001-00
Unavailable
36
DAMPER 5
1TX-28267-00-00
Unavailable
37
SCREW, ROUND TAPPING
90160-05007-00
Unavailable
38
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
39
SCREW, ROUND TAPPING
90160-05006-00
Unavailable
40
DUCT 1
14B-2838N-00-P6
Unavailable
41
DUCT 3
14B-2838T-00-00
Unavailable
42
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
43
GROMMET
90480-08005-00
Unavailable
44
LID 1
14B-2839K-00-P6
Unavailable
45
BOX 3
14B-2838V-00-00
Unavailable
46
NUT(1KT)
90179-05523-00
Unavailable
47
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
48
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
50
SEAL 4
J44-78248-00-00
Unavailable
51
RIVET(4PH)
90269-07077-00
Unavailable
52
DAMPER, PLATE
90520-01001-00
Unavailable
53
DAMPER, PLATE
90520-03005-00
Unavailable
54
NUT(1KT)
90179-05523-00
Unavailable
55
DUCT 2
14B-2838R-00-P6
Unavailable
56
DUCT 4
14B-2838U-00-00
Unavailable
57
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
58
GROMMET
90480-08005-00
Unavailable
59
LID 2
14B-2839L-00-P6
Unavailable
60
BOX 4
14B-2838W-00-00
Unavailable
61
NUT(1KT)
90179-05523-00
Unavailable
62
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
63
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
65
SEAL 4
J44-78248-00-00
Unavailable
66
RIVET(4PH)
90269-07077-00
Unavailable
67
DAMPER, PLATE
90520-01001-00
Unavailable
68
DAMPER, PLATE
90520-03005-00
Unavailable
69
NUT(1KT)
90179-05523-00
Unavailable
70
DUCT 5
14B-2838J-01-00
Unavailable
71
DUCT 6
14B-2838P-01-00
Unavailable
72
PANEL, CONSOLE 1
14B-2837L-00-P6
Unavailable
73
DAMPER, 3
4C8-2112D-00-00
Unavailable
74
SEAL 1
2S3-2111D-00-00
Unavailable
75
PANEL, CONSOLE 2
14B-2837M-00-P6
Unavailable
76
DAMPER, 3
4C8-2112D-00-00
Unavailable
77
SEAL 1
2S3-2111D-00-00
Unavailable
78
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
79
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
80
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
81
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
82
REAR VIEW MIRROR ASSY (LEFT)
14B-26280-00-00
Unavailable
83
REAR VIEW MIRROR ASSY (RIGHT)
14B-26290-00-00
Unavailable
84
PLATE, MIRROR FITTING 1
4C8-26298-00-00
Unavailable
85
BASE, MIRROR (LEFT)
14B-2628N-00-00
Unavailable
86
BASE, MIRROR (RIGHT)
14B-2628R-00-00
Unavailable
87
NUT, CROWN(1FN)
90176-06055-00
Unavailable
88
COLLAR(J45)
90387-064T3-00
Unavailable
89
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
90
BOLT,HEX. SOCKET BUTTON
90111-05034-00
Unavailable
91
BOX, SIDE 1
14B-2846C-00-00
Unavailable
92
BOX, SIDE 2
14B-2846D-01-00
Unavailable
93
BOX, FRONT
14B-2845D-10-00
Unavailable
94
GROMMET(4FU)
90480-13567-00
Unavailable
