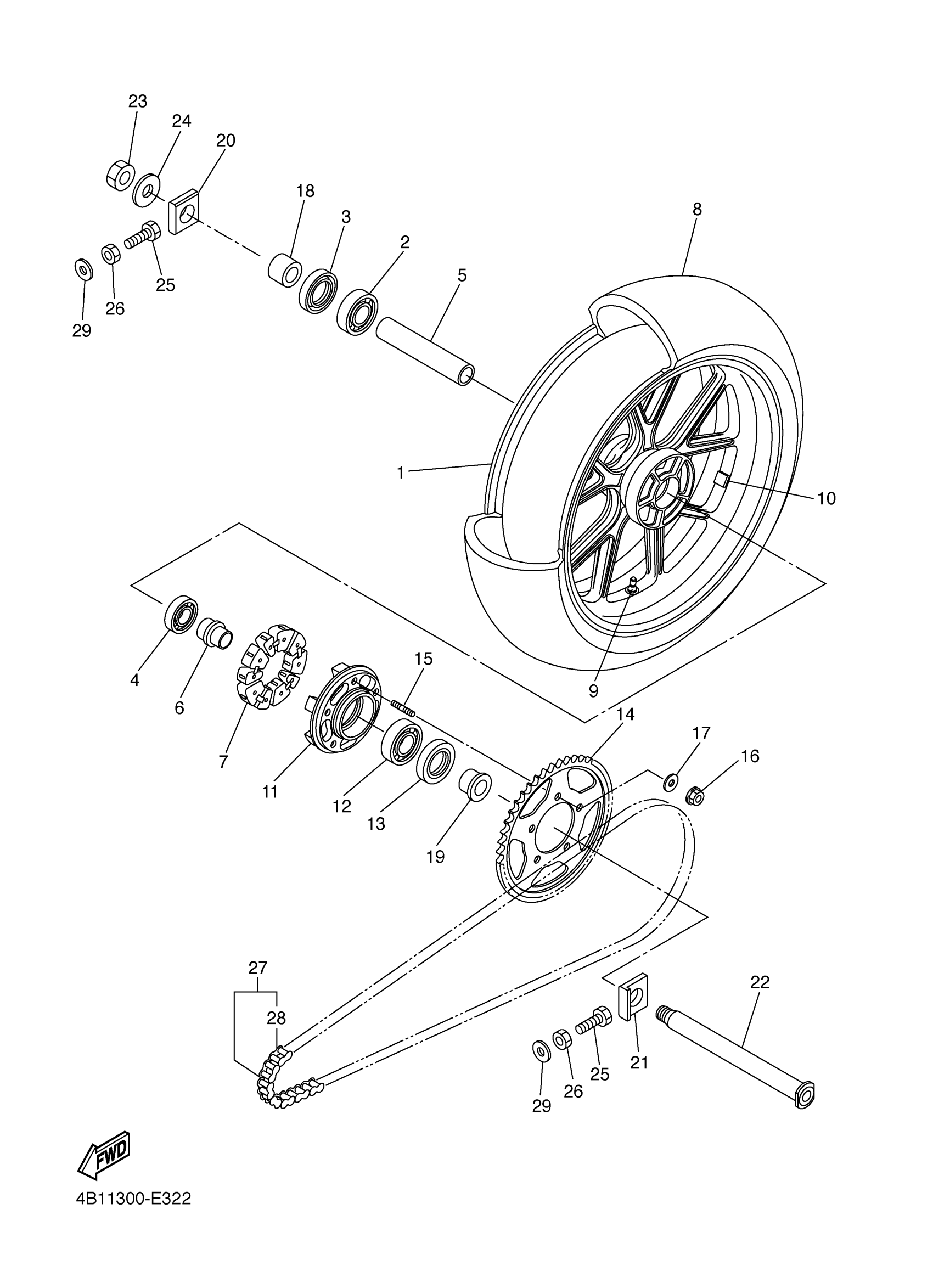

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 REAR WHEEL Diagram
#
Description
Price
1
WHEEL, FORGED
4B1-2533C-00-00
Unavailable
6
COLLAR, WHEEL
4B1-25377-00-00
Unavailable
7
DAMPER
4B1-25364-00-00
Unavailable
8
TIRE (190/50 ZR17M/C 73W D218)
94119-17060-00
Unavailable
10
BALANCER, WHEEL
4B1-25398-00-00
Unavailable
11
CLUTCH, HUB
4B1-25366-00-00
Unavailable
12
BEARING(4HD)
93306-20644-00
Unavailable
14
SPROCKET, DRIVEN (45T)
4B1-25445-20-00
Unavailable
16
NUT, SELF-LOCKING
90185-10009-00
Unavailable
17
WASHER, PLATE
90201-10021-00
Unavailable
18
COLLAR
90387-28016-00
Unavailable
19
COLLAR
90387-28019-00
Unavailable
20
PULLER, CHAIN 1
5VY-25388-00-00
Unavailable
21
PULLER, CHAIN 2
5VY-25389-01-00
Unavailable
22
AXLE, WHEEL
5SL-25381-10-00
Unavailable
23
NUT, SELF-LOCKING
90185-24007-00
Unavailable
24
WASHER, PLATE
90201-25020-00
Unavailable
25
BOLT
90101-08015-00
Unavailable
26
NUT(6TA)
95337-08600-00
Unavailable
27
CHAIN (DID50VA8-118LL)
94582-22118-00
Unavailable
28
. JOINT, CHAIN (DID 50VA8-ZJ)
94682-10031-00
Unavailable
29
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
