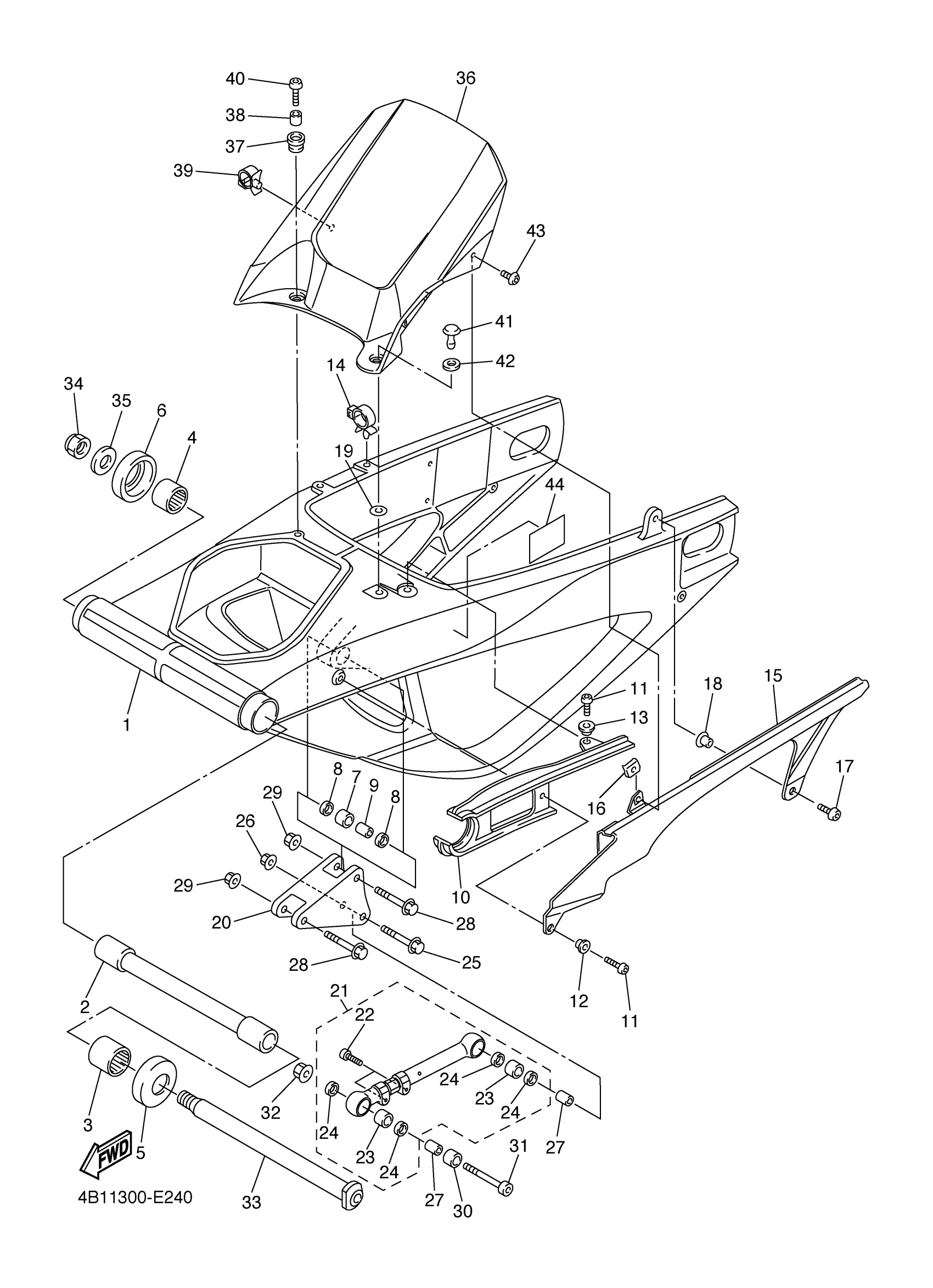

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 REAR ARM Diagram
#
1
REAR ARM COMP.
5VY-22110-10-P0
Unavailable
2
BUSH
5VY-22184-10-00
Unavailable
6
COVER, THRUST 1
5VY-22128-10-00
Unavailable
16
NUT, SPRING
90183-050A6-00
Unavailable
17
SCREW(3XV)
90149-06298-00
Unavailable
18
COLLAR (3L1)
90387-07717-00
Unavailable
19
SEAL 1
5VY-22873-00-00
Unavailable
20
ARM, RELAY
4B1-2217A-00-00
Unavailable
21
CONNECTING ROD SUB ASSY
4B1-2210K-00-00
Unavailable
22
BOLT,SOCKET
91317-06020-00
Unavailable
25
BOLT, WASHER BASED
90105-10018-00
Unavailable
26
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
28
BOLT, WASHER BASED
90105-10018-00
Unavailable
29
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
30
COLLAR
90387-1013U-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-10011-00
Unavailable
32
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
33
SHAFT, PIVOT
5VY-22141-00-00
Unavailable
34
NUT, SELF-LOCKING
90185-18009-00
Unavailable
35
WASHER, PLATE
90201-18013-00
Unavailable
36
REAR FENDER COMP.
5VY-21650-00-00
Unavailable
37
GROMMET
90480-12005-00
Unavailable
38
COLLAR
90387-06057-00
Unavailable
39
CLAMP
90464-16012-00
Unavailable
40
SCREW(4DN)
90149-06302-00
Unavailable
41
RIVET
90269-08002-00
Unavailable
42
DAMPER
5PW-28372-00-00
Unavailable
43
BOLT
90111-05003-00
Unavailable
44
LABEL, TIRE
5VY-21668-00-00
Unavailable
