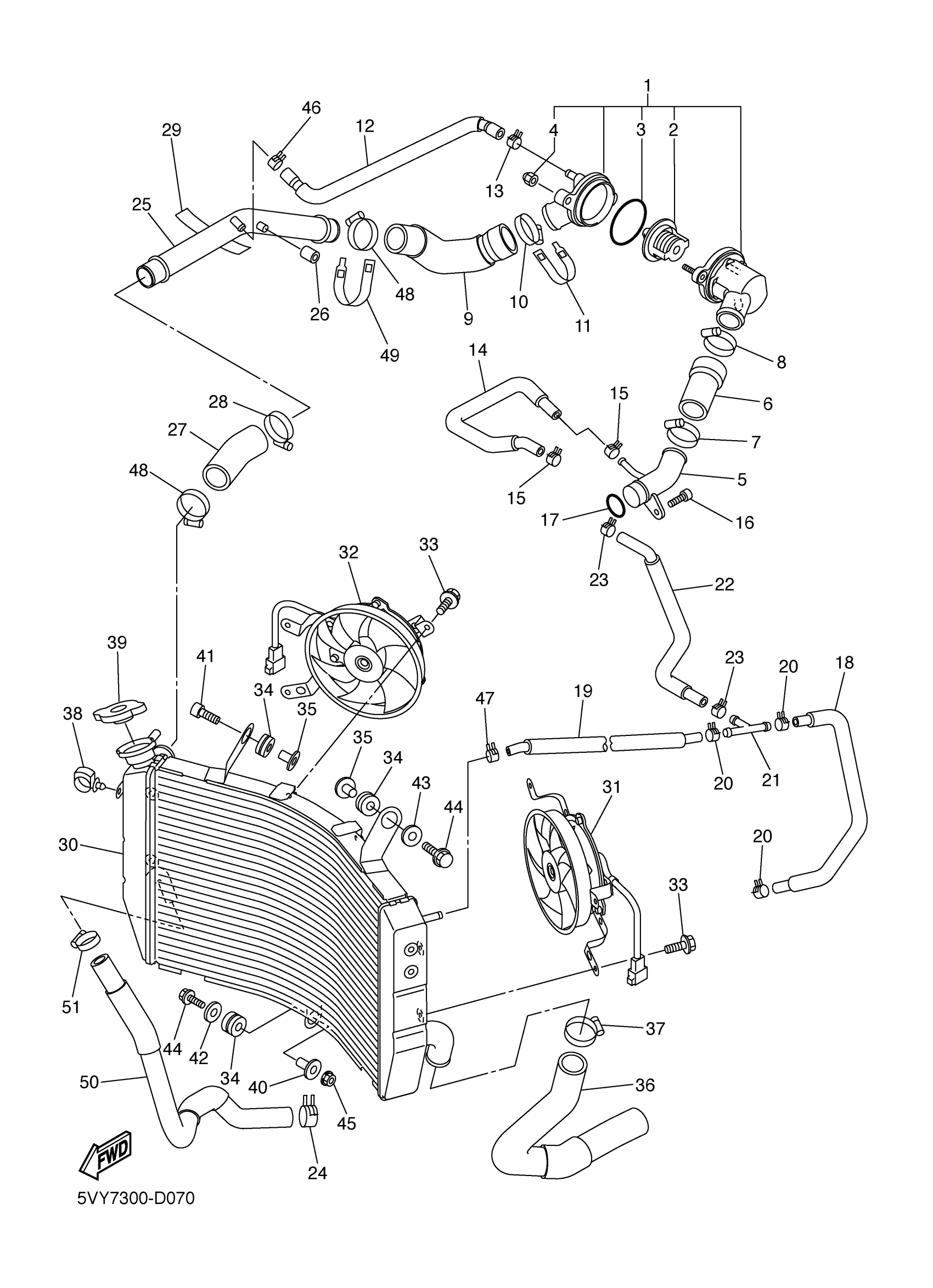

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

5VY-12410-11-00

$114.99

2

THERMOSTAT

5LP-12411-01-00

$38.99

3

O-RING (620)

93210-49046-00

$7.49

4

NUT, CROWN

90176-06014-00

$7.49

5

PIPE 5

5VY-12485-10-00

$68.99

6

HOSE 4

5VY-12579-00-00

$17.49

7

HOSE CLAMP ASSY

90450-35001-00

$5.60

8

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

9

HOSE 2

5VY-12577-00-00

$28.99

10

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

11

COVER 1

5GV-1246A-00-00

Unavailable

12

HOSE 8

5VY-12552-00-00

Unavailable

13

CLIP (7K7)

90467-11044-00

$8.49

14

HOSE,3

5VY-1243F-01-00

$38.99

15

CLIP(3BM)

90467-10135-00

$8.49

16

BOLT (33M)

91312-06014-00

Unavailable

17

O-RING

93210-235A1-00

Unavailable

18

HOSE 1

5VY-1243A-00-00

Unavailable

19

HOSE, 4

5VY-1244G-00-00

Unavailable

20

CLIP(3BM)

90467-10135-00

$8.49

21

WAY 3(1AF)

90413-07023-00

Unavailable

22

HOSE 2

5VY-1243E-00-00

Unavailable

23

CLIP(3BM)

90467-10135-00

$8.49

24

CLIP

90467-200A0-00

Unavailable

25

PIPE 3

5VY-12483-02-00

Unavailable

26

HOSE (L70)

90445-112E0-00

Unavailable

27

HOSE 3

5VY-12578-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-35001-00

$5.60

29

SEAL, PIPE 1

5VY-12494-00-00

Unavailable

30

RADIATOR ASSY

5VY-12461-00-00

Unavailable

31

BLOWER ASSY

5VY-12405-00-00

Unavailable

32

BLOWER ASSY

5VY-12405-10-00

Unavailable

33

BOLT, BLOWER HOLDING

5GJ-12675-00-00

Unavailable

34

GROMMET (29L)

90480-15363-00

Unavailable

35

COLLAR

90387-0614M-00

Unavailable

36

HOSE 7

5VY-12551-00-00

Unavailable

37

HOSE CLAMP ASSY

90450-35001-00

$5.60

38

CLAMP

90464-13249-00

Unavailable

39

CAP, RADIATOR

5SL-12462-01-00

Unavailable

40

COLLAR

90387-0614M-00

Unavailable

41

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

42

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

43

WASHER PLATE 248217570000

90201-06074-00

Unavailable

44

BOLT, FLANGE

95817-06030-00

Unavailable

45

NUT,SELF-LOCKING

95607-06200-00

Unavailable

46

CLIP (7K7)

90467-11044-00

$8.49

47

CLIP(3BM)

90467-10135-00

$8.49

48

HOSE CLAMP ASSY

90450-35001-00

$5.60

49

COVER 2

5GV-1246E-00-00

Unavailable

50

HOSE 6

5VY-12589-01-00

Unavailable

51

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable
