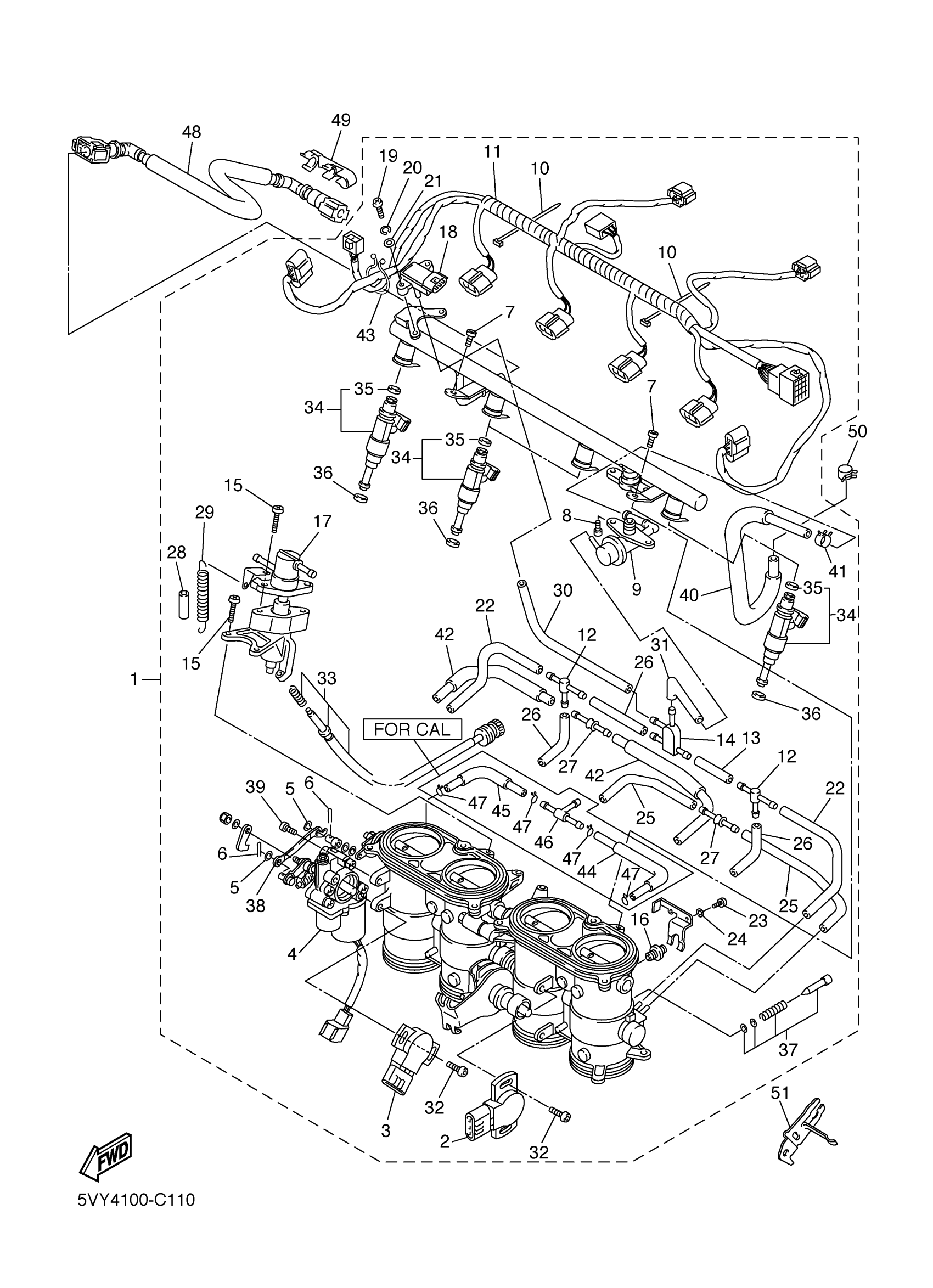

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSY
5VY-13750-30-00
Unavailable
1
THROTTLE BODY ASSY
5VY-13750-40-00
Unavailable
3
THROTTLE SENSOR ASSY
5FL-85885-10-00
Unavailable
4
GEARED MOTOR COMP. 2
2D1-85870-00-00
Unavailable
9
. REGULATOR, PRESSURE
5VY-13906-00-00
Unavailable
11
. EXTENSION, WIRE HARNESS
5VY-82386-00-00
Unavailable
12
. PIPE, JOINT 1
68V-24376-00-00
Unavailable
14
CONNECTOR
5PW-1410F-00-00
Unavailable
15
SCREW, PAN HEAD
98507-05014-00
Unavailable
16
PLUNGER, STARTER
5VY-14171-00-00
Unavailable
17
CASE, STARTER
5VY-14204-00-00
Unavailable
18
SENSOR, PRESSURE
5VX-82380-00-00
Unavailable
19
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
20
WASHER(3SX)
92907-05100-00
Unavailable
21
WASHER(1RW)
92907-05600-00
Unavailable
22
PIPE
5FL-14349-10-00
Unavailable
23
SCREW, PAN HEAD
98507-03016-00
Unavailable
24
WASHER, SPRING
92990-03100-00
Unavailable
25
PIPE
5PW-14349-00-00
Unavailable
26
HOSE
5PS-14987-00-00
Unavailable
27
NIPPLE
5PW-14251-00-00
Unavailable
28
SEAT, SPRING
5DM-14936-00-00
Unavailable
29
SPRING
5JW-14589-00-00
Unavailable
30
PIPE
5SL-14349-00-00
Unavailable
31
. PIPE 1
5VY-14348-00-00
Unavailable
32
SCREW
8CC-14216-10-00
Unavailable
33
THROTTLE SCREW SET
5PW-14103-00-00
Unavailable
34
INJECTOR ASSY
5VY-13761-00-00
Unavailable
35
O-RING
5PS-14147-00-00
Unavailable
36
GASKET, MANIFOLD
8FP-13556-00-00
Unavailable
37
AIR SCREW SET
5JW-14104-00-00
Unavailable
38
LEVER, STARTER
5VY-14905-00-00
Unavailable
39
SCREW, PAN
98517-06020-00
Unavailable
40
PIPE, FUEL 2
5VY-13972-00-00
Unavailable
41
CLIP
90467-12003-00
Unavailable
42
HOSE, AIR
5VY-13543-00-00
Unavailable
43
CLAMP (8M1)
90464-30040-00
Unavailable
44
PIPE
5VY-14465-01-00
Unavailable
45
PIPE
5VY-14466-01-00
Unavailable
46
WAY (70R)
90413-08012-00
Unavailable
47
CLIP
90467-090A2-00
Unavailable
48
PIPE, FUEL 1
5VY-13971-00-00
Unavailable
49
CLAMP
90464-16005-00
Unavailable
50
CLIP
90467-12003-00
Unavailable
51
STAY
5VY-14413-00-00
Unavailable
