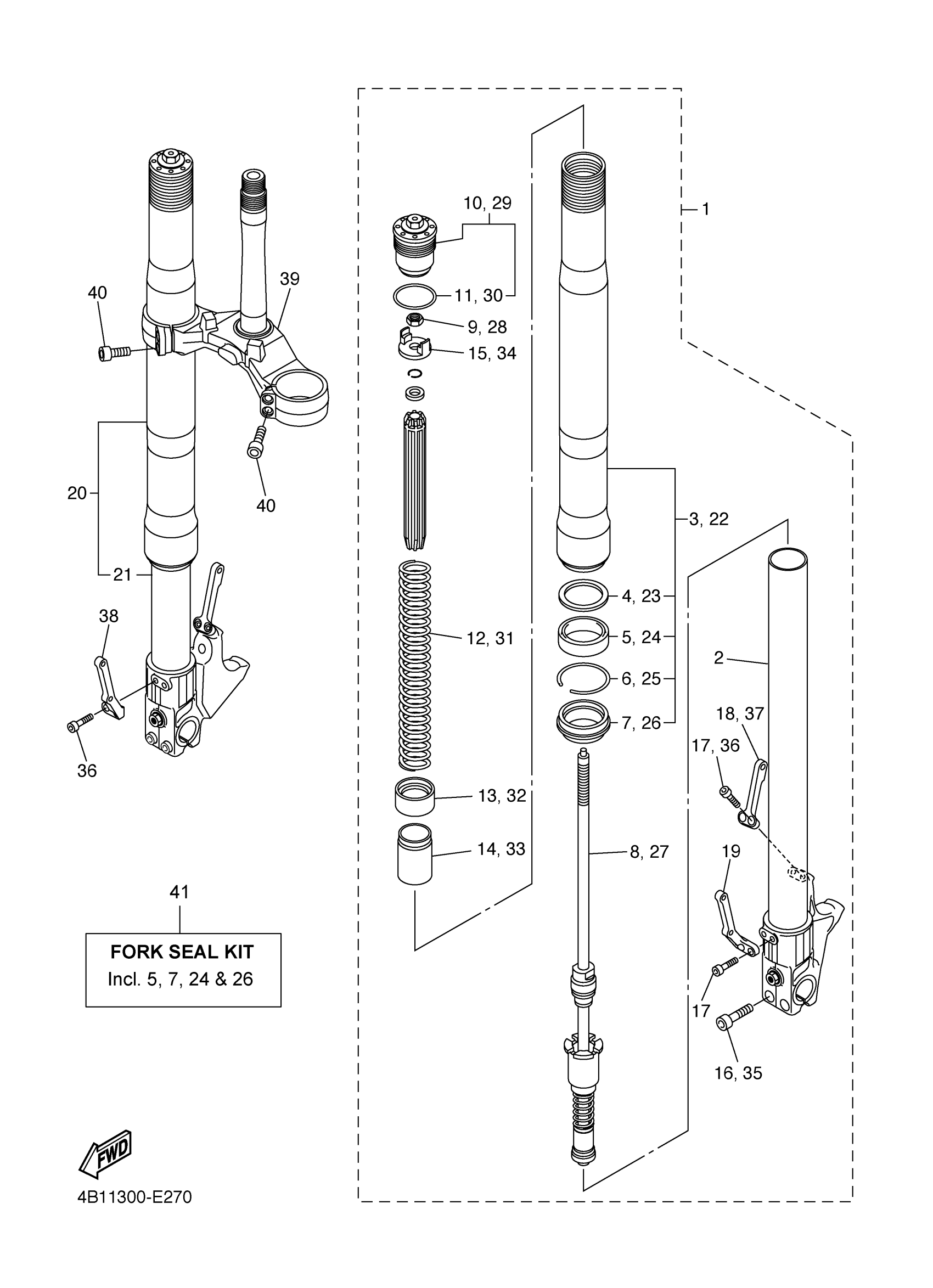

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
4B1-23102-00-00
Unavailable
2
.. INNER TUBE COMP 1
4B1-23110-00-00
Unavailable
3
. OUTER TUBE COMP (LH)
4B1-23106-00-00
Unavailable
4
GUIDE, COVER UPPER
4TX-23115-00-00
Unavailable
5
OIL SEAL
5VX-23145-00-00
Unavailable
8
. CYLINDER COMP, FRONT FORK
4B1-23170-00-00
Unavailable
10
BOLT, CAP
4B1-23111-00-00
Unavailable
12
. SPRING, FRONT FORK
4B1-23141-00-00
Unavailable
13
. ADJUSTER
4B1-2331K-00-00
Unavailable
14
. SEAT, SPRING UPPER
4B1-2331L-00-00
Unavailable
15
SEAT, SPRING UPPER
4B1-23142-00-00
Unavailable
16
BOLT,SOCKET
91314-08040-00
Unavailable
17
BOLT, SOCKET
91314-05010-00
Unavailable
18
. BRACKET 1
4B1-2334G-00-00
Unavailable
19
. STAY 2
4B1-2317F-00-00
Unavailable
20
FRONT FORK ASSY (R.H)
4B1-23103-00-00
Unavailable
21
.. INNER TUBE COMP 2
4B1-23120-00-00
Unavailable
22
. OUTER TUBE COMP (LH)
4B1-23106-00-00
Unavailable
23
GUIDE, COVER UPPER
4TX-23115-00-00
Unavailable
24
OIL SEAL
5VX-23145-00-00
Unavailable
27
. CYLINDER COMP, FRONT FORK
4B1-23170-00-00
Unavailable
29
BOLT, CAP
4B1-23111-00-00
Unavailable
31
. SPRING, FRONT FORK
4B1-23141-00-00
Unavailable
32
. ADJUSTER
4B1-2331K-00-00
Unavailable
33
. SEAT, SPRING UPPER
4B1-2331L-00-00
Unavailable
34
SEAT, SPRING UPPER
4B1-23142-00-00
Unavailable
35
BOLT,SOCKET
91314-08040-00
Unavailable
36
BOLT, SOCKET
91314-05010-00
Unavailable
37
. BRACKET 1
4B1-2334G-00-00
Unavailable
38
. STAY 3
4B1-2317M-00-00
Unavailable
39
UNDER BRACKET COMP.
5VY-23340-30-00
Unavailable
40
BOLT,SOCKET
91314-08030-00
Unavailable
41
FORK SEAL KIT (TWO FORKS)
5VX-W003B-00-00
Unavailable
